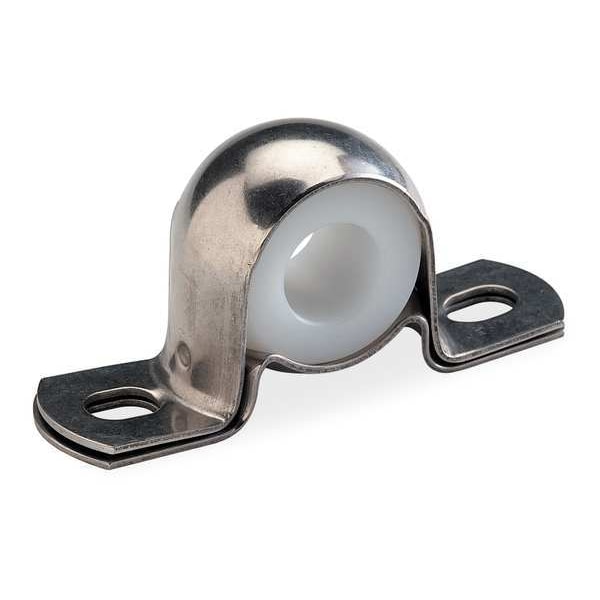

Dayton 1F634 Pillow Block Bearing 1F634 - main

1F634 Pillow Block Bearing

  • Mfr # 1F634

  • Zoro # G2887963

product price: $28.69
/ea

Key Features

Bearing Insert Type
Sleeve
Shaft Locking Type
None
Bearing Housing Material Type
Pressed Stainless Steel
Bearing Insert Material
UHMW Polyethylene
Bolt Hole Center-to-Center
3 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1F634
Zoro #
G2887963
UPC #
044861016619
Country of Origin
United States

Dimensions

Bore Dia.
3/4 in
Dimension F
1/8 in
Dimension D
4 in
Dimension A
1 in
Overall Length
4 in
Overall Height
2 in
Dimension G
1 1/8 in
Dimension C
4 in
Overall Width
1.125 in
Dimension J
3/8 in
Bolt Size
3/8 in
Dimension B
2 in
Dimension H
1/8 in
Dimension E
3 in
Dimension L
1 1/8 in
Center Height
1 in
Base Height
0.13 in
Mount Hole Size
3/8 in
Mount Hole Center-to-Center Length
3 in
Bore Diameter
3/4 in

Details

Bearing Insert Type
Sleeve
Shaft Locking Type
None
Bearing Housing Material Type
Pressed Stainless Steel
Bearing Insert Material
UHMW Polyethylene
Bolt Hole Center-to-Center
3 in
Mounting Surface to Shaft Center
1 in
Series
PBSS-UH
Number of Bolts
2
Finish
None
Housing Material
Stainless Steel
Dynamic Load Capacity
Max. PV 3000 lb
Bearing Locking Type
None
Item
Pillow Block Bearing
Includes
Solid Self-Lubricating Bearing
Standards
FDA, USDA
Max. Speed
4,500 RPM
Temp. Range
-60 Degrees to 180 Degrees F
Locking Type
None
Application
Washdown
Minimum Temperature
-60 Degrees F
Features
Ideal for Wash Down Applications in Wet or Harsh Environments or Where Sanitary Conditions are a Factor, Operating Temperature Range: -60 Degrees F to 180 Degrees F, PBSS-UH Series Bearings are USDA and FDA Approved, Two-Piece Stainless Steel Housing, UHMW-PE Bearings are Self-Lubricating, Resist Corrosion, High Impact and Abrasion
Number of Mount Holes
2
Maximum Temperature
180 Degrees F
Maximum Speed
4,500 RPM
Maximum PV
3,000 lb/sq in-fpm
Self Lubricating Bearing
Yes
System of Measurement
Inch
Mount Type
Bolt-Through
Bearing Material
UHMW-PE

Description

Pillow Block Bearing, Base Height 0.13 in, Bearing Insert Material UHMW Polyethylene, Bearing Insert Type Sleeve, Bore Diameter 3/4 in, Center Height 1 in, Housing Material Stainless Steel, Maximum Speed 4,500 RPM, Maximum Temperature 180 Degrees F, Minimum Temperature -60 Degrees F, Mount Hole Center-to-Center Length 3 in, Mount Type Bolt-Through, Number of Mount Holes 2, Overall Height 2 in, Overall Length 4 in, Overall Width 1.125 in, Self Lubricating Bearing Yes, Shaft Locking Type None
