  11. Pneumatic Vibrator, 75 lbf, 10500 vpm Max Vibration Speed, 67 dBA
Shop All Vibrators
Vibco

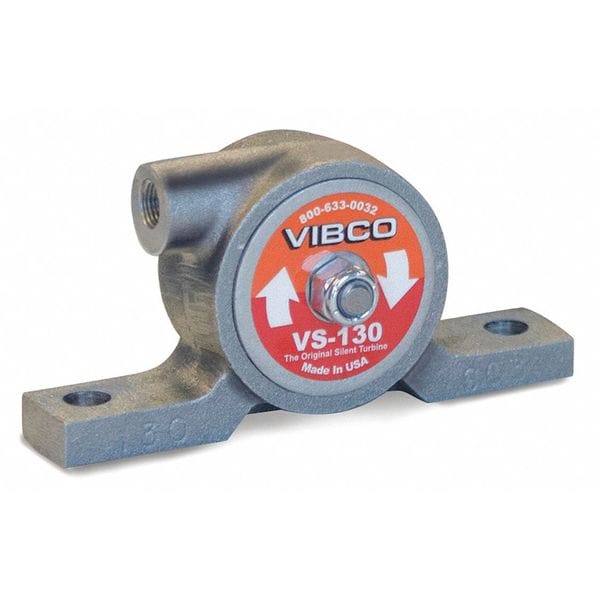

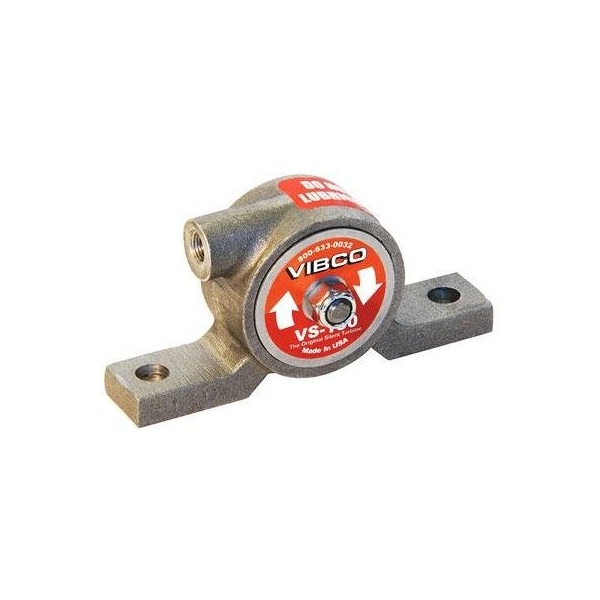

Pneumatic Vibrator, 75 lbf, 10500 vpm Max Vibration Speed, 67 dBA

product price: $169.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Vibrator Type Turbine
  • Force Rating 75 lb
  • CFM @ 80 PSI 2
  • Speed @ 60 psi 8000 VPM
  • Speed @ 80 psi 10,500 VPM
See all product information

Product Information

  • Brand Vibco
  • MFR # VS-130
  • Zoro # G1898041
  • Country of Origin United States
  • Category Vibrators

Dimensions

Overall Length 4-7/8"
Overall Width 2"
Overall Height 2-5/16"
Inlet Connection Size 1/8 in
Mount Hole Center-to-Center Length 102 mm
Mount Hole Size 10

Details

Item Pneumatic Vibrator
Vibrator Type Turbine
Force Rating 75 lb
CFM @ 80 PSI 2
Speed @ 60 psi 8000 VPM
Speed @ 80 psi 10,500 VPM
Bin Weight Capacity 750 lb
dB @ 80 psi 67
Inlet Port 1/8" NPT
Duty Continuous
Mounting Foot
Application Automotive, Chemical, Plastics, Bio-tech, Plating and Food Industries
Max. Pressure 80 psi
Standards CE Certified, ATEX Certified
Muffler Included
Housing Material Cast iron
CFM @ 60 psi 1.1
Max. Temp. 350 Degrees F
Mounting Plate Sold Separately
Adjustable Speed Yes
Force @ 80 psi 75 lbf
Duty Cycle Continuous
Maximum Force 75 lbf
Inlet Connection Type NPT
Mount Type Foot
Maximum Bin Weight Capacity 750 lb
Series VS
Maximum Operating Temperature 350 Degrees F
Mount Plate Included No
Sound Level 67 dBA
Maximum Vibration Speed 10,500 vpm
Force @ 60 psi 45 lbf
Air Flow Rate 2.5 cfm @ 60 psi, 5.5 cfm @ 80 psi
Pneumatic Vibrator Type Turbine
Force @ PSI 45 lbf @ 60 psi, 75 lbf @ 80 psi
Mount Plate Required Yes
Maximum Inlet Pressure 80 psi
Weight 1 lb
Vibration Speed @ 80 psi 10,500 vpm
Vibration Speed @ 60 psi 8,000 vpm
Vibration Speeds @ PSI 10,500 vpm @ 80 psi, 8,000 vpm @ 60 psi

Description

Pneumatic Vibrator, Housing Material Cast Iron, Air Flow Rate 2.5 cfm @ 60 psi, 5.5 cfm @ 80 psi, Maximum Force 75 lbf, Inlet Connection Size 1/8 in, Inlet Connection Type NPT, Maximum Vibration Speed 10,500 vpm, Maximum Bin Weight Capacity 750 lb, Overall Height 2.32 in, Overall Length 4.88 in, Overall Width 2.01 in, Sound Level 67 dBA, Duty Cycle Continuous, Pneumatic Vibrator Type Turbine, Force @ PSI 45 lbf @ 60 psi, 75 lbf @ 80 psi, Mount Type Foot, Adjustable Speed Yes

Restrictions

  • WARNING: This product can expose you to chemicals including Chromium (hexavalent compounds), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
