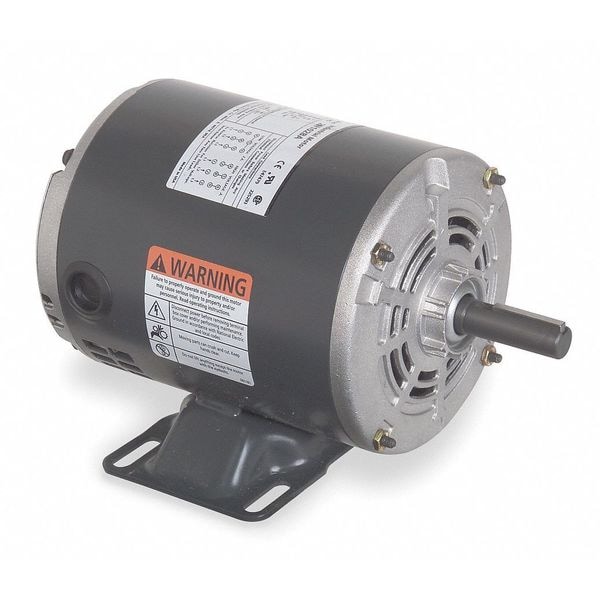

3-Phase General Purpose Motor, 1/4 HP, 48 Frame, 208-230/460 Voltage, 1725 Nameplate RPM (Discontinued)
- Mfr # 6XH87
- Zoro # G1678573
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
MFR #
6XH87
Zoro #
G1678573
UPC #
-
Country of Origin
Mexico
Dimensions
Length Less Shaft
7 13/16 in
Overall Length
9 5/16 in
Shaft Dia.
1/2 in
Shaft Length
1 1/2 in
Manufacturers Warranty Length
1 yr
Description
General Purpose Motor, Three Phase, Motor Design 3-Phase, 1/4 HP, Nameplate RPM 1725, No. of Speeds 1, Voltage 208-230/460, Full Load Amps 1.2-1.3/0.65, 48 Frame, Hz 60, Motor Service Factor 1.35, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Ins. Class B, NEMA Design B, Motor Enclosure Design Open Dripproof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Inverter Rated Yes, Motor Shaft Design Flat, Motor Frame Material Steel
