  11. 3-Phase General Purpose Motor, 3 HP, 213/5 Frame, 208-230/460 Voltage, 1170 Nameplate RPM

This item is Discontinued.

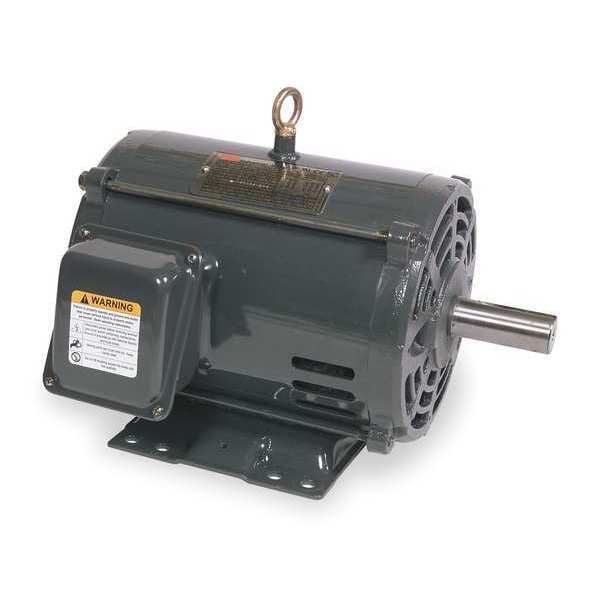

Dayton 3-Phase General Purpose Motor, 3 HP, 213/5 Frame, 208-230/460 Voltage, 1170 Nameplate RPM 2N991

3-Phase General Purpose Motor, 3 HP, 213/5 Frame, 208-230/460 Voltage, 1170 Nameplate RPM (Discontinued)

  • Mfr # 2N991
  • Zoro # G0376117
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2N991
Zoro #
G0376117
UPC #
190735896945
Country of Origin
Taiwan, Province of China

Dimensions

Length Less Shaft
13 13/16 in
Overall Length
16 13/16 in
Shaft Dia.
1 1/8 in
Shaft Length
3 in
Manufacturers Warranty Length
3 yr

Details

Item
General Purpose Motor
HP
3
Nameplate RPM
1170
Voltage
208-230/460
Motor Mounting Type
Rigid Base
Full Load Amps
10.1-9.1/4.6
Frame
213/5
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
3-Phase
Motor Enclosure Design
Open Dripproof
RPM Range
1101-1200
Phase
Three
No. of Speeds
1
Motor Application
General Application
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
208, 230, 240, 460, 208-220/440, 208-230, 208-230/460, 208-240, 220/460, 220-230/460, 230/460
Hz
60
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Shaft Design
Keyed
Nominal Efficiency
86.5%
Standards
UL Recognized, CSA Certified, CE
CC Number
CC060A
Frame Material
Steel
Motor Efficiency Group
Energy Efficient
Motor Thermal Protection
None
Duty
Continuous
Footnotes
2,10,15
Inverter Rated
Yes
RPM Group
1101-1200
NEMA Design
B

Description

General Purpose Motor, Three Phase, Motor Design 3-Phase, 3 HP, Nameplate RPM 1170, No. of Speeds 1, Voltage 208-230/460, Full Load Amps 10.1-9.1/4.6, 213/5 Frame, Hz 60, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Ins. Class F, NEMA Design B, Motor Enclosure Design Open Dripproof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Inverter Rated Yes, Motor Shaft Design Keyed, Motor Frame Material Steel
