Shop DAYTON

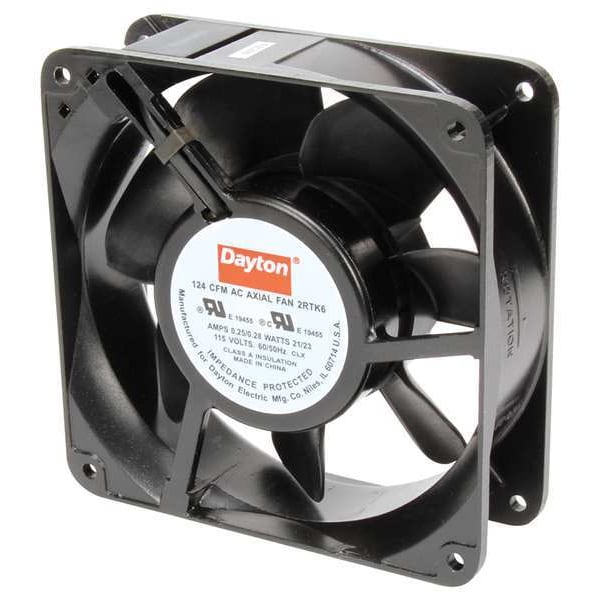

4-11/16 in H x 4-11/16 in W Square Axial Fan, 1-1/2 in D, 124 CFM, 115V AC, IP20

  • Mfr # 2RTK6

  • Zoro # G1013984

product price:
$
31.39
/ea

Key Features

Blade Material
Polybutylene
CFM @ 0.000-In. SP
124 cfm
Depth
1 1/2 in
Height
4 11/16 in
Housing Material
Aluminum
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2RTK6
Zoro #
G1013984
UPC #
190735230428
Country of Origin
China

Dimensions

Depth
1 1/2 in
Height
4 11/16 in
Width
4 11/16 in
Fan Depth
1-1/2"
Fan Height
4-11/16"
Fan Width
4-11/16"
Fan Width
4-11/16"

Details

Blade Material
Polybutylene
CFM @ 0.000-In. SP
124 cfm
Housing Material
Aluminum
Phase
1
Shape
Square
Watts
21/23 W
Voltage
115V AC
Bearings
Ball
Fan RPM
2750
Fan Item
Axial Fan
Housing Finish
Black
Electrical Connections
Terminals
Mounting Eye O.C.
4 1/8 in
Motor Type
Shaded pole
Mounting Eye O.C. - Fans
4-1/8"
Fan Watts
21
Fan Shape
Square
Item
Axial Fan
Hz
60/50 Hz
Standards
RoHS Compliant, UL Recognized
Fan dBA
47
Electrical Connection - Fans
Terminals
Fan Voltage
115VAC
Mounting Position
Horizontal/Vertical
Requires
Cord Set (Not Included)
dBA
47
Max. Ambient Temp.
158 Degrees F
Motor Insulation
A
Amps
0.25/0.28 A
Thermal Protection
Yes
IP Rating
IP20
Bearing Type
Ball
RPM
2,500 RPM, 2,750 RPM
Environmental Applications
Equipment Cooling
Motor Design
Shaded Pole
Color
Black
Includes Guard
No
Includes Filter
No
Environment Rating
Dry
Removable Base
Permanently Lubricated
Sound Level
47 dBA
Sound Level - Minimum
44 dBA

Description

Standard Square Axial Fan, Fan Shape Square, Mounting Eye O.C. 4 1/8 in, Height 4 11/16 in, Depth 1 1/2 in, Width 4 11/16 in, CFM @ 0.000-In. SP 100/85 cfm, Watts 21/23 W, Voltage 115V AC, 60/50 Hz Hz, 0.25/0.28 A Amps, Electrical Connection - Fans Terminals, Sound Level 47/44, IP Rating IP20, Mounting Position Vertical or Horizontal, Bearing Type Ball, 2750/2500 RPM RPM, Motor Design Shaded Pole, Motor Insulation Class A, Thermal Protection Impedance, Max. Ambient Temp. 158 Degrees F
