Shop SCHAEFER

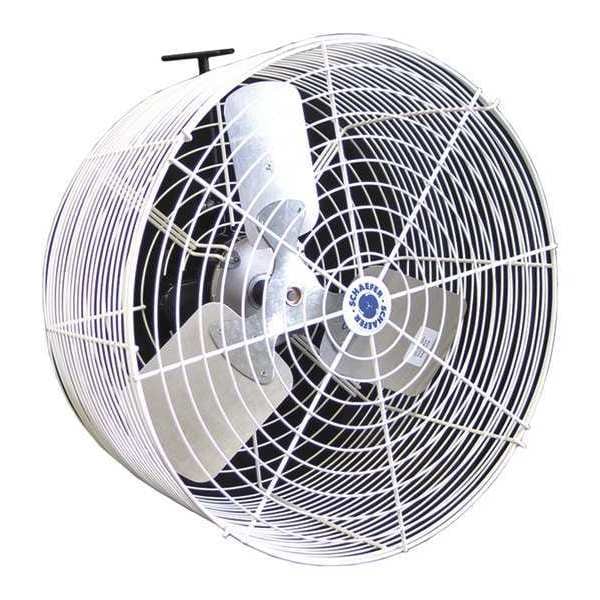

Standard Duty Industrial Fan, Wall Mount, 20 in Blade Dia, 115/230V, 5,470 cfm, Non-Oscillating

  • Mfr # GVK20

  • Zoro # G2596632

product price:  $338.99
/ea
Free Shipping & Returns

Key Features

Blade Diameter
20 in
Oscillation
Non-Oscillating
Number of Speeds
Variable
Voltage
115/230V AC
Phase
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
GVK20
Zoro #
G2596632
UPC #
-
Country of Origin
United States

Dimensions

Blade Diameter
20 in
Shaft Dia.
1/2 in
Outside Dia.
23"
Max. Depth
14-1/2"
Height
23 in
Width
23 in
Fan Cord Length
5 ft
Depth
14 1/2 in
Max. Mounting Height
Unrestricted

Details

Oscillation
Non-Oscillating
Number of Speeds
Variable
Voltage
115/230V AC
Phase
1
Motor HP
1/3 hp
Air Flow
5,470 cfm
Drive Type
Direct Drive
Blade Material
Aluminum
Item
Mounted Fan
Housing Material
Steel
Number of Conductors
3
CFM High
5473
Motor RPM
1725
Number of Blades
3
Includes
Mounting Bracket
Guard Material
Steel
Application
Spot Cooling and People Cooling
Wire Guard Finish
Powder Coated
Motor Type
Permanent Split Capacitor
Assembled
Yes
Motor Enclosure
Totally Enclosed Air-Over
Watts
315 W
Mobile/Stationary
Stationary
Thermal Protection
Auto
Bearing Type
Ball
Max. Ambient Temp.
104 Degrees F
Hz
60 Hz
Motor Insulation
B
NEMA Plug Configuration
5-15P
Fan Style
Standard
Fan Accessory Style
Standard
Fan Mounting Location
Wall
Environmental Applications
Industrial
RPM
1,725 RPM
Fan Housing Material
Steel
Amps
3.8/1.9
Assembly Required
No
Wheeled Base
Stationary
Material
Steel
Color
White
Motor hp
1/3 hp
NEMA plug Configuration
5-15p
Guard Color
White
Standards
ANSI/AMCA Standard 230-99
For Location
Greenhouse
Motor Design
Permanent Split Capacitor
Mount Type
Arm
Airflow
5,470 cfm

Description

Standard-Duty Industrial Fan, Blade Dia. 20 in, Stationary, Non-Oscillating, 1 Speeds, Voltage 115/230V AC, 1 Phase, CFM High 5473, Motor HP 1/3 hp, Motor RPM 1725, Operating Amps 3.8/1.9, Fan Mounting Location Wall, Fan Accessory Style Standard, Fan RPM 1725, Max. Ambient Temp. 104 Degrees F, Hz 60 Hz, Watts 315, Motor Type Permanent Split Capacitor, Drive Type Direct Drive, Outside Dia. 23 In., Height 23 in, Width 23 in, Max. Depth 14-1/2 In., Cord Length 5 ft.
