  9. 4/10 HP 2" Auto Submersible Sewage Pump 115V Tether

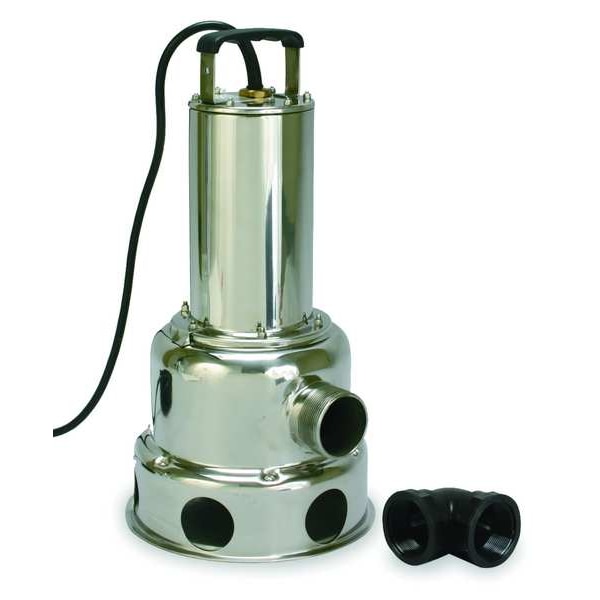

Dayton 4/10 HP 2" Auto Submersible Sewage Pump 115V Tether 2JGA4 - main

4/10 HP 2" Auto Submersible Sewage Pump 115V Tether

  • Mfr # 2JGA4

  • Zoro # G1954836

product price: $415.99
/ea
Free Shipping & Returns

Key Features

HP
4/10
Phase - Pumps
1
Switch Actuation
Tether Float
Body Material
Stainless Steel
Base Material
Stainless Steel
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2JGA4
Zoro #
G1954836
UPC #
190735220825
Country of Origin
China

Dimensions

Max. Diameter Solids
2 in
Max. Dia. Solids
2"
Diameter
9-1/4"
Height
17-3/4"
Cord Length
20 ft
Cord Length - Pumps
20 ft.
Manufacturers Warranty Length
1 yr
Min. Sump Pit Dia.
18 in
Overall Height
17 3/4 in
Discharge Dia.
2 in
Body Dia.
9 1/4 in
Solids Diameter - Maximum
2 in
Sump Pit Diameter - Minimum
18 in
Body Diameter
9 1/4 in
Width at Widest Point
9 1/4 in
Discharge Diameter
2 in

Details

HP
4/10
Phase - Pumps
1
Switch Actuation
Tether Float
Body Material
Stainless Steel
Base Material
Stainless Steel
Flow Rate @ 10 Ft. of Head
75 gpm
Max. Head
25 ft
Impeller Material
Stainless Steel
Bearing Type
Ball
Item - Sewage Pumps
Submersible Sewage Pump
Agency Compliance
CSA Certified, UL Listed
Includes
2" 90 Degrees Elbow
Thermal Protection
Yes
GPM of Water @ 5 Ft. of Head
90
Voltage - Pumps
120VAC
Phase
Single
Voltage
115
Max. Head - Pumps
25 ft.
Motor Type
Oil Filled
Switch Type - Pumps
Tether
Impeller Material - Pumps
Stainless Steel
Shaft Seal Material - Pumps
Buna-N, Carbon, Ceramic, Stainless Steel
Pump Body Material
Stainless Steel
Input Phase AC
1
Amps
11.00 A
Switch Type
Tether
Housing Material
Stainless Steel
Shaft Seal
CRB/CMC/Buna N/SS
GPM of Water @ 20 Ft. of Head
47
Motor RPM
3450
GPM of Water @ 25 Ft. of Head
28
Pump Type
Automatic
Amps - Pumps
11.00
GPM of Water @ 10 Ft. of Head
75
Discharge NPT
2"
Item
Sewage Ejector Pump
Max. Liquid Temp.
130 Degrees F
GPM of Water @ 15 Ft. of Head
60
RPM
3,450 RPM
Flow Rate @ 20 Ft. of Head
47 gpm
Discharge
2 in MNPT
Duty Cycle
Continuous
On Point
11 3/8 in
Discharge Gender
Male
Switch Electrical Connection
Piggyback
Discharge Standard
NPT
Rated Voltage
115V AC
Off Point
4 1/4 in
Flow Rate @ 15 Ft. of Head
60 gpm
Standards
cCSAus Certified
Type
Automatic
Frequency
60 Hz
Liquid Temperature - Maximum
130 Degrees F
Flow Rate @ 10 ft of Head
75 gpm
Shaft Seal Material
Carbon/Ceramic/Nitrile Rubber/Stainless Steel
Horsepower
2/5 hp
Current
11.00 A
Feet of Head - Maximum
25 ft
Rotation Speed - Maximum
3,450 RPM

Description

Sewage Ejector Pump, HP 4/10, Rated Voltage 115V AC, Phase - Pumps 1, Amps 11.00 A, Motor Type Oil Filled, Body Material Stainless Steel, Impeller Material Stainless Steel, Shaft Seal Material - Pumps Buna-N, Carbon, Ceramic, Stainless Steel, Switch Actuation Tether Float, Switch Electrical Connection Piggyback, On Point 11 3/8 in, Off Point 4 1/4 in, Flow Rate @ 10 Ft. of Head 75 gpm, Flow Rate @ 15 Ft. of Head 60 gpm, Flow Rate @ 20 Ft. of Head 47 gpm, Max. Diameter Solids 2 in

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
