Shop DAYTON

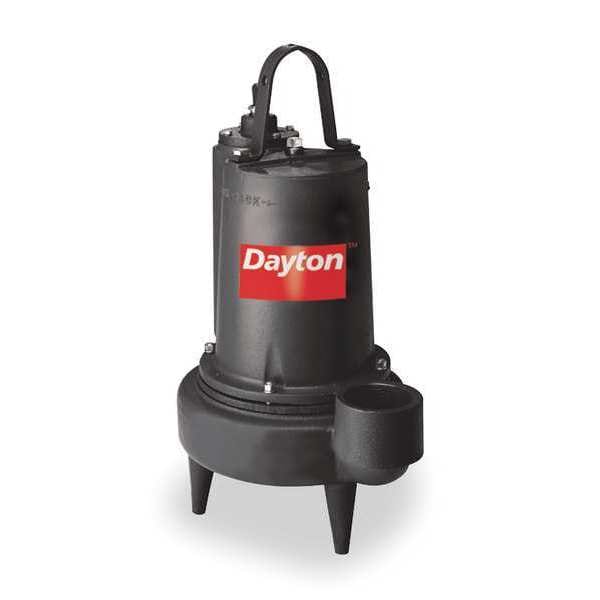

3 HP 3" Manual Submersible Sewage Pump 460V

  • Mfr # 3BB96

  • Zoro # G0260355

product price:  $3,756.99
/ea
Additional $135.00 delivery surcharge applies per item.
See details

Key Features

HP
3
Phase - Pumps
3
Switch Actuation
No Switch Included
Body Material
Cast Iron
Base Material
303 Stainless Steel
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
3BB96
Zoro #
G0260355
UPC #
190735280225
Country of Origin
China

Dimensions

Max. Diameter Solids
2 1/2 in
Diameter
17"
Cord Length
20 ft
Height
26-1/2"
Cord Length - Pumps
20 ft.
Max. Dia. Solids
2-1/2"
Overall Height
26 1/2 in
Body Dia.
17 in
Discharge Dia.
3 in
Solids Diameter - Maximum
2 1/2 in
Width at Widest Point
17 1/8 in
Discharge Diameter
3 in
Body Diameter
17 in

Details

HP
3
Phase - Pumps
3
Switch Actuation
No Switch Included
Body Material
Cast Iron
Base Material
303 Stainless Steel
Max. Head
52 ft
Impeller Material
Cast Iron
Pump Type
Manual
Housing Material
Cast iron
GPM of Water @ 40 Ft. of Head
115
GPM of Water @ 30 Ft. of Head
210
Shaft Seal
Silicon Carbide
Phase
Three
Discharge NPT
3"
Max. Head - Pumps
52 ft.
GPM of Water @ 50 Ft. of Head
15
Item - Sewage Pumps
Submersible Sewage Pump
Pump Body Material
Cast Iron
Input Phase AC
3
GPM of Water @ 25 Ft. of Head
250
Switch Type - Pumps
No Switch Included
Item
Sewage Ejector Pump
Amps - Pumps
12.90/6.10
Shaft Seal Material - Pumps
Carbon Ceramic
Voltage
460
Motor RPM
1750
GPM of Water @ 20 Ft. of Head
300
Max. Liquid Temp.
104 Degrees F
Switch Type
None
Voltage - Pumps
460VAC
Impeller Material - Pumps
Cast Iron
Amps
12.90/6.10 A
Gauge/Conductor
14/3
Switch Electrical Connection
No Switch Included
RPM
1,750 RPM
Flow Rate @ 20 Ft. of Head
300 gpm
Rated Voltage
230 to 460V AC
Flow Rate @ 40 Ft. of Head
115 gpm
Discharge Standard
NPT
Discharge
3 in NPT
Type
Manual
Horsepower
3 hp
Rotation Speed - Maximum
1,750 RPM
Liquid Temperature - Maximum
104 Degrees F
Feet of Head - Maximum
52 ft
Current
12.90/6.10 A
Shaft Seal Material
Carbon/Ceramic

Description

Sewage Ejector Pump, HP 3, Rated Voltage 230 to 460V AC, Phase - Pumps 3, Amps 12.90/6.10 A, Body Material Cast Iron, Impeller Material Cast Iron, Shaft Seal Material - Pumps Carbon Ceramic, Switch Actuation No Switch Included, Switch Electrical Connection No Switch Included, On Point Not Applicable, Off Point Not Applicable, Flow Rate @ 20 Ft. of Head 300 gpm, Flow Rate @ 40 Ft. of Head 115 gpm, Max. Diameter Solids 2 1/2 in, Body Dia. 17 in, Width at Widest Point 17 1/8 in
