This item is Discontinued.

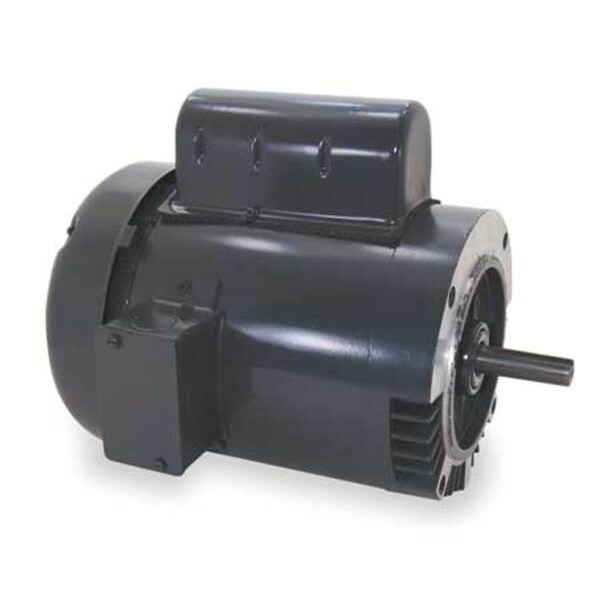

Dayton 50 Hz Motor, 1/2 HP, 1425,110/220, 56C, TEFC 6K952BB

50 Hz Motor, 1/2 HP, 1425,110/220, 56C, TEFC (Discontinued)

  • Mfr # 6K952BB
  • Zoro # G1208724
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
6K952BB
Zoro #
G1208724
UPC #
190735366738
Country of Origin
Mexico

Dimensions

Length Less Shaft
9 1/4 in
Shaft Dia.
5/8 in
Shaft Length
1 7/8 in

Details

Motor Design
Capacitor-Start
Motor Enclosure Design
Totally Enclosed Fan Cooled
Nameplate RPM
1,425
Frame
56C
Voltage
110/220V AC
Phase
Single
Motor Thermal Protection
None
Motor Mounting Type
Rigid Base
Full Load Amps
8.0/4.0 A
Ambient Temperature
40 Degrees C
Motor Bearings
Ball
No. of Speeds
1
Voltage Compatibility
110/220-230V AC, 110/220V AC
Item
50 Hz Motor
Motor Shaft Rotation
CW/CCW
Motor Application
General Purpose
Motor Shaft Design
Keyed
Hz
50 Hz
Motor Mounting Position
All Angle
Motor Service Factor
1.15
Ins. Class
B
RPM Range
1,401-1,500
Max. Ambient Temp.
40 Degrees C
Voltage @ 50Hz
110/220V AC
Usable @ 208V
Not Usable at 208V
Service Factor @ 50Hz
1.15
Weight
26 lb
HP @ 50Hz
1/2 hp
RPM @ 50Hz
1,425
Full Load Amps @ 50Hz
8/4 A
Usable @ 200V
Not Usable at 200V

Description

50 Hz Motor, Single Phase, Motor Design Capacitor-Start, Not Applicable HP, Nameplate RPM 1,425, No. of Speeds 1, Voltage 110/220V AC, Full Load Amps 8.0/4.0 A, 56C Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 50 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Ins. Class B, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base
