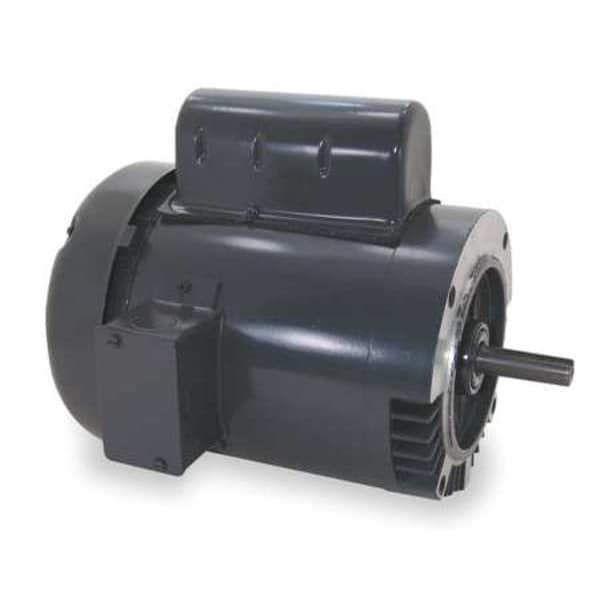

Dayton 50 Hz Motor, 1/3 HP, 1425,110/220, 56C, TEFC 6K950BB - main

50 Hz Motor, 1/3 HP, 1425,110/220, 56C, TEFC

  • Mfr # 6K950BB

  • Zoro # G0341896

product price: $544.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Capacitor-Start
Motor Enclosure Design
Totally Enclosed Fan Cooled
Frame
56C
Phase
Single
Motor Thermal Protection
None
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
6K950BB
Zoro #
G0341896
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Length
1 7/8 in
Shaft Dia.
5/8 in
Length Less Shaft
9 1/4 in
Overall Length
11 3/16 in

Details

Motor Design
Capacitor-Start
Motor Enclosure Design
Totally Enclosed Fan Cooled
Frame
56C
Phase
Single
Motor Thermal Protection
None
Motor Mounting Type
C-Face, Rigid Base
Full Load Amps
6.3/3.2 A
Motor Mounting Position
All Angle
Motor Shaft Rotation
CW/CCW
Ambient Temperature
40 Degrees C
Motor Application
General Purpose
Motor Service Factor
1.15
Voltage Compatibility
110/220-230V AC, 110/220V AC
RPM Range
1,401-1,500
Motor Bearings
Ball
Motor Shaft Design
Keyed
Item
50 Hz Motor
Ins. Class
B
No. of Speeds
1
Hz
50 Hz
Max. Ambient Temp.
40 Degrees C
Usable @ 208V
Not Usable at 208V
RPM @ 50Hz
1,425 RPM
Usable @ 200V
Not Usable at 200V
Service Factor @ 50Hz
1.15
Full Load Amps @ 50Hz
6.3/3.2 A
Weight
23.5 lb
HP @ 50Hz
1/3 hp
Voltage @ 50Hz
110/220V AC
Duty Cycle
Continuous
Motor Frame Material
Steel

Description

50 Hz Motor, Single Phase, Motor Design Capacitor-Start, Not Applicable HP, Nameplate RPM Not Applicable, No. of Speeds 1, Voltage Not Applicable, Full Load Amps 6.3/3.2 A, 56C Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 50 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW
