Shop DAYTON

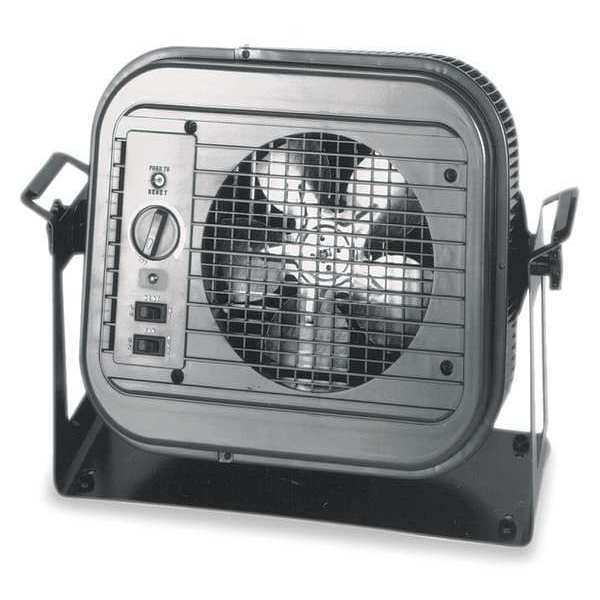

5/3.3/3.7/2.5kW Electric Utility Heater, 1-Phase, 240/208V

  • Mfr # 4E169

  • Zoro # G0383957

product price:  $645.99
/ea
Free Shipping & Returns

Key Features

Heater Voltage
208/240VAC
Height
16"
Width
21"
Depth
8"
Housing Material
Steel
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
4E169
Zoro #
G0383957
UPC #
190735323106
Country of Origin
United States

Dimensions

Height
16"
Width
21"
Depth
8"
Manufacturers Warranty Length
1 yr Parts, 5 yr Elements
Overall Height
16 in
Overall Width
21 in
Overall Dimensions - H x W x D
16 in x 21 in x 8 in
Overall Depth
8 in

Details

Heater Voltage
208/240VAC
Housing Material
Steel
Phase
1
Air Flow
210 cfm
Item
Wall & Ceiling Heater
Hz
60
Includes
Ceiling/Wall Mounting Bracket with Pre Drilled 16 in O.C. Holes, Doubles as Handle or Floor Stand
BtuH
17065/11372, 12800, 8533
Heater Housing Finish
Painted
Electric Heater Phase
1
kW
5.0/3.3 3.7/2.5
Amps AC
20.8/13.8 17.8/12.0
Standards
UL-CUL, Meets NEC and OSHA Requirements
Features
Thermostat, Totally Enclosed Permanently Lubricated Fan Motor, High/Low Heat Selector Switch, Fan Only Switch
Electric Heater Item
Electric Utility Heater
Temp. Rise
71 Degrees F
Vertical Floor Coverage
24 ft
Housing Finish
Painted
Wattage Output
2.5kW/3.7kW, 3.3kW/5kW
Voltage, Phase
208/240V AC, 1-phase
Heating Capacity
8,533 BtuH, 11,372 BtuH, 12,800 BtuH, 17,065 BtuH
Air Temp. Rise
71 Degrees F
Heating Method
Fan Forced
Control Type
Mechanical Selector Dial
Housing Color
Gray
Amperage
12A/17.8A, 13.8A/20.8A
Vertical Mounting H
15 ft
Horizontal Air Throw
12 ft
Voltage
208/240V AC
Frequency
60 Hz
Contactor Coil Voltage
240V AC
Requires
Mounting Bracket and Control Included
Electrical Connection
Hardwired

Description

Wall & Ceiling Heater, 17065/11372, 12800, 8533 BtuH, Heater Voltage 208/240 V AC, Electric Heater Phase 1, 20.8/13.8 17.8/12.0 Amps AC, Mounting Type Suspended, 60 Hz, Air Temp. Rise 71 Degrees F, Features Thermostat, Totally Enclosed Permanently Lubricated Fan Motor, High/Low Heat Selector Switch, Fan Only Switch, Manufacturers Warranty Length 1 yr Parts, 5 yr Elements, Standards UL-CUL, Meets NEC and OSHA Requirements
