Shop DAYTON

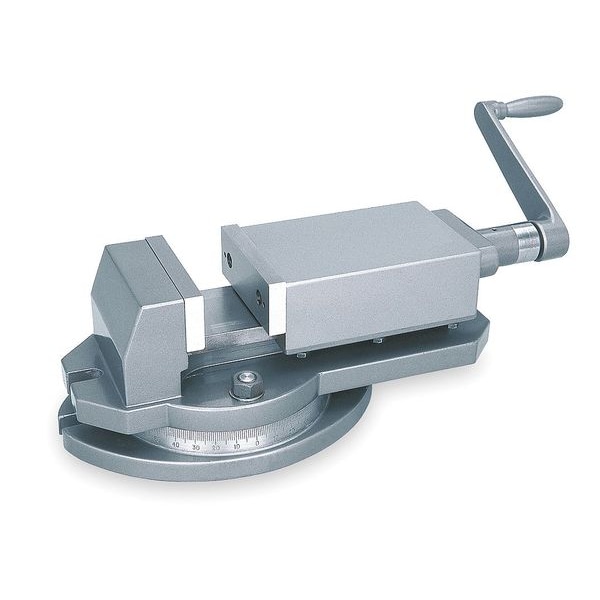

6 in Machine Vise with Swivel Base

  • Mfr # 4CPE9

  • Zoro # G2859482

product price:  $905.99
/ea
Free Shipping & Returns

Key Features

Base Type
Swivel
Jaw Width
6 in
Overall Height
5.41 in
Overall Length
16.93 in
Throat Depth
1 3/4 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
4CPE9
Zoro #
G2859482
UPC #
190735322413
Country of Origin
India

Dimensions

Jaw Width
6 in
Overall Height
5.41 in
Overall Length
16.93 in
Throat Depth
1 3/4 in
Jaw Width (In.)
6 in
Overall Length (In.)
16.93
Throat Depth (In.)
1 3/4 in
Overall Height (In.)
5.41
Overall Width
9.6 in
Base Length
12 in
Mounting Slot Length
26 mm
Mounting Slot/Keyway Width
17 mm
Base Width
9 19/32 in
Wire Rope Length
16.93 in

Details

Item
Machine Vise
Base Type
Swivel
Features
Base Allows Vise to be Set at Any Angle Along Vertical Axis, Hold Down Slot for Secure Clamping
Base
Swivel
Jaw Opening (In.)
6 in
Bed/Base
Parallel To 0.0012 in
Max. Opening
6"
Jaw Plate
Square To 0.0012 in per 4 in
Jaw Deflection
0.006 in Per 4 in At 33 lb Load On Hand Crank
Type
Milling
Jaw Material
Steel
Jaw Opening - Maximum
6 in
Machine Vise Type
Angle
Compatible Machinery
CNC Milling Machine, Milling Machine
Bed/Base Parallel Tolerance - Maximum
0.0012 in
Jaw Face Type
Smooth
Base Swivel - Maximum
360 Degrees
Jaw Deflection - Maximum
0.006 in
Base Shape
Round
Power Source
Hand Crank
Clamping Force - Maximum
3,968.316 lbf
Power Source - TS Only
Hand Crank

Description

When you need to secure your workpiece, the Dayton 4CPE9 6" Machine Vise is the perfect tool. Its jaws are 6 in. wide and can open up to a maximum of 6 in. The machine vise has jaws that are 6 in. wide and an opening of 6 in., with a throat depth of 1 3/4 in. It also has a swivel base that allows for 360 degrees rotation, while its parallel bed ensures smooth movement without scratching or marring your workpiece. The square jaw plate can measure up to 0.0012 in per 4 in., making it ideal for detailed work on small parts. With this Dayton Machine Vise, you will be able to do precise work on even the smallest pieces.
