Shop DAYTON

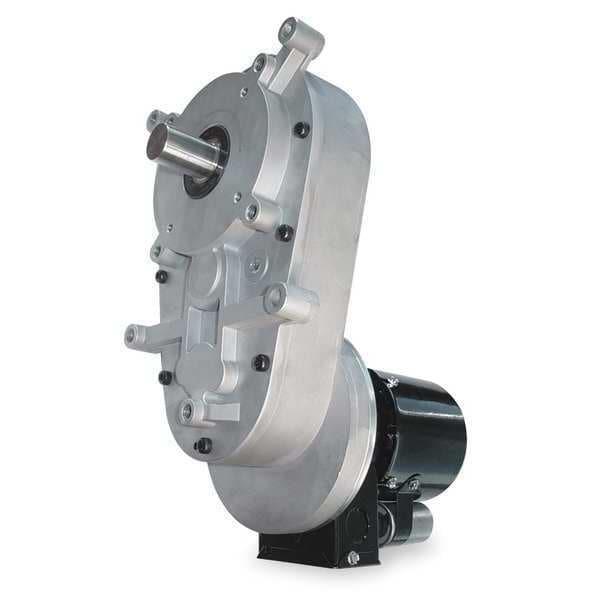

AC Gearmotor, 1,900 in-lb Max. Torque, 2 RPM Nameplate RPM, 115/230V AC Voltage, 1 Phase

  • Mfr # 1LPY7

  • Zoro # G0945795

product price:
$
1,185.99
/ea
Free Shipping & Returns

Key Features

Gearmotor Voltage
115/230V AC
Gearmotor Phase
1
Gearmotor Type
AC Gearmotor
Max. Torque
1,900 in-lb
Gearmotor Shaft Type
Single
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1LPY7
Zoro #
G0945795
UPC #
190735144633
Country of Origin
Mexico

Dimensions

Length Less Shaft
10.13 in
Keyway Size Type
#806 Woodruff Key
Keyway Size
#806 Woodruff Key
Shaft Dia. (Dimension U)
1 in
Shaft Length (Dimension V)
1.5 in_x000D_
Output Shaft Length
1 1/2 in
Output Shaft Diameter
1 in

Details

Item
AC Gearmotor
Gearmotor Voltage
115/230V AC
Gearmotor Phase
1
Gearmotor Type
AC Gearmotor
Max. Torque
1,900 in-lb
Gearmotor Shaft Type
Single
Gearmotor Shaft Orientation
Parallel
Nameplate RPM
2 RPM
Gearmotor Enclosure
Totally Enclosed Fan-Cooled
Gearmotor Rotation
CW/CCW
Gearmotor Brake Type
None
Gearmotor Mounting Position
All Angle
Full Load Amps
1.2/0.63 A
Standards
cRUus
Input HP
1/12 hp
Shaft
Single Output
Hz
60/50 Hz
Gear Material
Hardened Steel
Seals
Lip Type on Output Shaft
Rotation
CW/CCW
Finish
Unpainted
Enclosure
TEFC
Voltage
115/230
Mounting
All Position
Brake
Adaptable to 5X400
Gear Ratio
835:1
Gear Case Material
Die Cast Aluminum
Insulation Class
b
Gears
Hardened Steel; 1st Stage Helical, Subsequent Stages Spur
Bearings
Ball and Needle on Case, Ball on Motor
Gear Type
Helical (1st Stage), Spur (Subsequent Stages)
Capacitor Required
Yes
Max. Ambient Temp.
40 Degrees C
Lubrication
Grease Filled
Phase
Single
Thermal Protection
None
Reversible Shaft Output
No
Housing
Die Cast Aluminum
RPM Range
0 to 15
RPM @ 50 Hz
1.7 RPM
Overhung Load
550 lb
Motor Type
Permanent Split Capacitor
Shaft Orientation
Parallel
Housing Material
Die Cast Aluminum
Operating Voltage
115/230V AC
Nameplate Speed
2 RPM
Mounting Orientation
Any Angle
Maximum Torque
1,900 in-lb
Maximum Ambient Temperature
104 Degrees F
Mount Type
Any Position
Overhung Load Capacity
550 lb
Full Load Current
1.2/0.63 A
Housing Material Finish
Unpainted
Bearing Type
Ball and Needle on Case, Ball on Motor
Number of Output Shafts
1
Seal Type
Lip Type on Output Shaft
Inverter Rating
835:1
Brake Type
None
Motor Enclosure
Totally Enclosed Fan-Cooled
Input Horsepower
0.083 hp
Motor Insulation Class
B
Inverter Rated
No
Keyway Type
Woodruff
Frequency
50 Hz, 60 Hz
Includes Capacitor
Capacitor Included

Description

AC Gearmotor, Number of Output Shafts 1, Motor Type Permanent Split Capacitor, Motor Enclosure Totally Enclosed Fan-Cooled, Nameplate Speed 2 RPM, Maximum Torque 1,900 in-lb, Overhung Load Capacity 550 lb, Rotation CW/CCW, Mounting Orientation Any Angle, Operating Voltage 115/230V AC, Inverter Rated No, Gear Ratio 835:1, Brake Type None, Shaft Orientation Parallel, Includes Capacitor Capacitor Included, Motor Insulation Class B
