Shop CENTURY

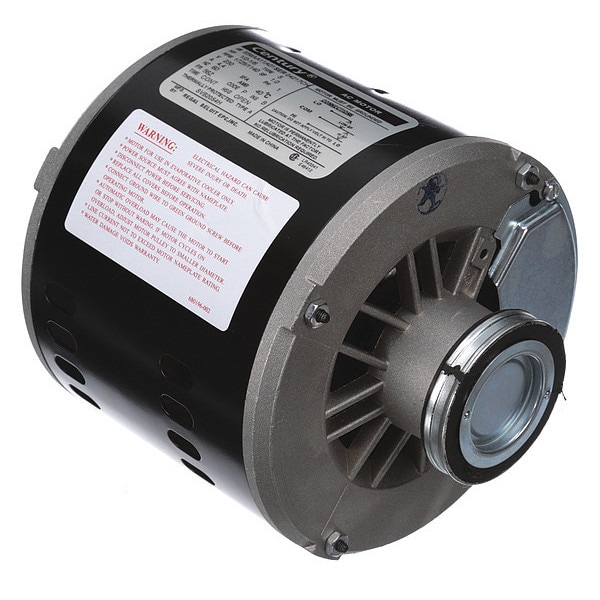

Evaporative Cooler Motor, 1/2 hp; 1/6 hp

  • Mfr # SVB2054HV1
  • Zoro # G3059384
product price:
$
242.99
/ea
Free Shipping & Returns

Key Features

Voltage
230V AC
Motor Enclosure Design
Open Dripproof
RPM Range
1,701-1,800
HP
1/2, 1/6
Full Load Amps
4.4/2.0 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
SVB2054HV1
Zoro #
G3059384
UPC #
-
Country of Origin
China

Dimensions

Overall Length
9 7/16 in
Shaft Dia.
1/2 in
Ring Dia.
2 1/2 in
Resilient Ring Dia.
2 1/2 in
Shaft Length
1 1/2 in
Length Less Shaft
7 15/16 in
Resilient Ring Diameter
2 1/2 in
Body Diameter
6.4 in
Shaft Diameter
1/2 in
Frame Size
56Z
Wire Rope Length
9 7/16 in
Length
9 7/16 in

Details

Item
Evaporative Cooler Motor
Voltage
230V AC
Motor Enclosure Design
Open Dripproof
RPM Range
1,701-1,800
HP
1/2, 1/6
Full Load Amps
4.4/2.0 A
Phase
Single
Motor Thermal Protection
Auto
Motor Design
Split-Phase
Hz
60 Hz
No. of Speeds
2
Frame
56Z
Motor Application
HVAC/R
Nameplate RPM
1,725/1,140
Max. Ambient Temp.
40 Degrees C
Motor Shaft Rotation
CW/CCW
Motor Service Factor
1
Ins. Class
B
Ambient Temperature
40 Degrees C
Motor Bearings
Ball
Motor Sub Application
Evaporator Cooler
Motor Mounting Type
Ring
Voltage Compatibility
115V AC, 200V AC to 230V AC, 115V AC, 208V AC to 230V AC, 115V AC, 230V AC, 120V AC, 240V AC, 200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 277V AC, 208V AC to 230V AC, 460V AC, 230V AC, 240V AC, 277V AC, 230V AC
Ring to Ring Center
7 7/16 in
Standards
CSA, UL
Finish
Varnish
Usable @ 200V
Not Usable at 200V
Features
Moisture Resistant
Usable @ 208V
Not Usable at 208V
Motor Mounting Position
All Angle
Includes
Hardware, Switch Parts
Number of Speeds
2
Capacitor Required
Capacitor Not Required
Nameplate Service Factor @ 60 Hz
1
Sub Application
Evaporative Cooler
Product Type
Evaporative Cooler Motor
Frame Material
Steel
Application
Evaporative Cooler
Full Load Current @ 60 Hz
4.4/2.0 A
Wattage
370 W
Drive Type
Direct Drive
Insulation Class
B
Ambient Temperature - Maximum
40 Degrees C
Efficiency Rating
Standard Efficiency (IE1)
Motor Enclosure Type
Open Drip Proof
Frequency
60 Hz

Description

Evaporative Cooler Motor, Single Phase, Motor Design Split-Phase, 1/2 hp, 1/6 hp HP, Nameplate RPM 1,725/1,140 RPM, No. of Speeds 2, Voltage 230V AC, 4.4/2.0 A Full Load Amps, 56Z Frame, Output Watts 370 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Resilient Ring
