Shop DAYTON

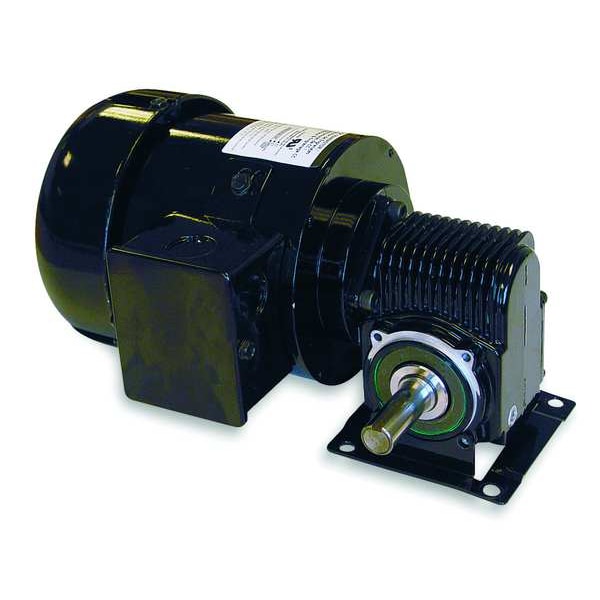

AC Gearmotor, 108 in-lb Max. Torque, 80 RPM Nameplate RPM, 115/230V AC Voltage, 1 Phase

  • Mfr # 3XA89

  • Zoro # G2129486

product price:
$
827.99
/ea
Free Shipping & Returns

Key Features

Gearmotor Voltage
115/230V AC
Gearmotor Phase
1
Gearmotor Type
AC Gearmotor
Max. Torque
108 in-lb
Gearmotor Shaft Type
Single Right
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
3XA89
Zoro #
G2129486
UPC #
190735295953
Country of Origin
Mexico

Dimensions

Shaft Length (Dimension V)
1.5"
Shaft Dia. (Dimension U)
5/8 in
Overall Width
5.63 in
Overall Height
6 in
Output Shaft Length
1 1/2 in
Output Shaft Height
1.69 in
Mount Hole Center-to-Center Length
3 in
Keyway Width
3/16 in
Mount Hole Center-to-Center Width
3.25 in
Keyway Depth
1/8 in
Output Shaft Diameter
5/8 in

Details

Item
AC Gearmotor
Gearmotor Voltage
115/230V AC
Gearmotor Phase
1
Gearmotor Type
AC Gearmotor
Max. Torque
108 in-lb
Gearmotor Shaft Type
Single Right
Gearmotor Shaft Orientation
Right Angle
Nameplate RPM
80 RPM
Gearmotor Enclosure
Totally Enclosed Fan-Cooled
Gearmotor Rotation
CW/CCW
Gearmotor Brake Type
None
Gearmotor Mounting Position
All Angle
Full Load Amps
2.35/1.25 A
Standards
C-UL Recognized, UL Recognized
Input HP
1/4 hp
Overhung Load
200 lb
Gear Case Material
Die Cast Aluminum
Lubrication
Oil Filled
Seals
Lip Type on Input and Output Shaft
Housing
Die Cast Aluminum
Gear Ratio
20:1
Thermal Protection
None
Voltage
115/230
Brake
Adaptable to 5X400
Mounting
All Position
Capacitor Required
Yes
RPM @ 50 Hz
71
Max. Ambient Temp.
40 Degrees C
Enclosure
TEFC
RPM Range
76 to 100
Bearings
Ball on Motor, Needle on Case
Rotation
CW/CCW
Motor Type
Permanent Split Capacitor
Shaft Orientation
Right Angle
Phase
Single
Gear Material
Hardened Steel
Housing Material
Die Cast Aluminum
Number of Output Shafts
1
Mounting Orientation
Any Angle
Motor Enclosure
Totally Enclosed Fan-Cooled
Bearing Type
Ball on Motor, Needle on Case
Frequency
50 Hz, 60 Hz
Inverter Rating
20:1
Input Horsepower
0.25 hp
Maximum Torque
108 in-lb
Overhung Load Capacity
200 lb
Full Load Current
2.35/1.25 A
Operating Voltage
115/230V AC
Mount Type
All Angle
Maximum Ambient Temperature
104 Degrees F
Nameplate Speed
80 RPM
Seal Type
Lip Type on Input and Output Shaft
Brake Type
None
Inverter Rated
No
Output Location
Right Hand
Includes Capacitor
Capacitor Included

Description

AC Gearmotor, Number of Output Shafts 1, Motor Type Permanent Split Capacitor, Motor Enclosure Totally Enclosed Fan-Cooled, Nameplate Speed 80 RPM, Maximum Torque 108 in-lb, Overhung Load Capacity 200 lb, Rotation CW/CCW, Output Shaft Height 1.69 in, Mounting Orientation Any Angle, Operating Voltage 115/230V AC, Inverter Rated No, Gear Ratio 20:1, Brake Type None, Output Location Right Hand, Shaft Orientation Right Angle, Includes Capacitor Capacitor Included
