  6. AC Gearmotor, 12.0 in.-lb. Max. Torque, 50 Nameplate RPM, 115 V AC Voltage, 1 Phase

This item is Discontinued.

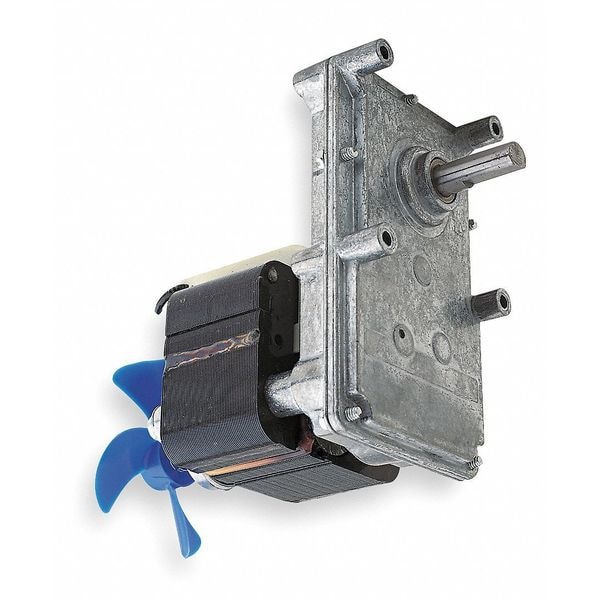

Dayton AC Gearmotor, 12.0 in.-lb. Max. Torque, 50 Nameplate RPM, 115 V AC Voltage, 1 Phase 4Z147

AC Gearmotor, 12.0 in.-lb. Max. Torque, 50 Nameplate RPM, 115 V AC Voltage, 1 Phase (Discontinued)

  • Mfr # 4Z147
  • Zoro # G0303177
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
4Z147
Zoro #
G0303177
UPC #
190735340103
Country of Origin
United States

Dimensions

Length Less Shaft
4-1/2"
Shaft Dia. (Dimension U)
3/8"
Dimension L
4-1/2"
Shaft Length (Dimension V)
1"

Details

Item
AC Gearmotor
Gearmotor Voltage
115 V AC
Gearmotor Phase
1
Gearmotor Type
AC Gearmotor
Max. Torque
12.0 in.-lb.
Gearmotor Shaft Type
Single
Gearmotor Shaft Orientation
Parallel
Nameplate RPM
50
Gearmotor Enclosure
Open
Gearmotor Rotation
CW
Gearmotor Brake Type
None
Gearmotor Mounting Position
All Angle
Full Load Amps
1.2
Standards
UL Recognized
Input HP
1/60
Motor Type
Shaded pole
Lubrication
Grease filled
Starting Torque
10 in.-lb.
Enclosure
Open
Application
Vending Machines and Valve Actuators
Bearings
Bronze Sleeve or Needle
Rotation
CW
Gear Type
Helical First Stage
Overhung Load
7 lb.
Shaft Orientation
Parallel
Gear Case Material
Die Cast Zinc
Mounting
All Position
Gear Material
Phenolic, powdered metal, steel or delrin
Insulation Class
b
Phase
1
Gear Ratio
64:1
Voltage
115
Thermal Protection
None
RPM Range
31 to 50
Housing
Die Cast Zinc
Gears
Sintered and Cut Steel/Phenolic
Hz
60

Description

AC Gearmotor, Motor Type Shaded Pole, Rotation CW, Gear Ratio 64:1, Shaft Orientation Parallel, Application Vending Machines and Valve Actuators
