  6. AC Gearmotor, 18.0 in.-lb. Max. Torque, 4 Nameplate RPM, 115 V AC Voltage, 1 Phase

This item is Discontinued.

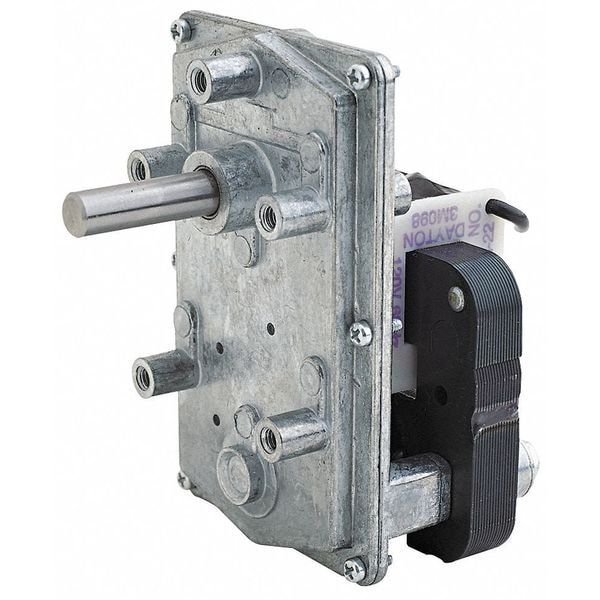

Dayton AC Gearmotor, 18.0 in.-lb. Max. Torque, 4 Nameplate RPM, 115 V AC Voltage, 1 Phase 3M098

AC Gearmotor, 18.0 in.-lb. Max. Torque, 4 Nameplate RPM, 115 V AC Voltage, 1 Phase (Discontinued)

  • Mfr # 3M098
  • Zoro # G0509467
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3M098
Zoro #
G0509467
UPC #
190735291382
Country of Origin
United States

Dimensions

Length Less Shaft
2-1/4"
Shaft Length (Dimension V)
1"
Shaft Dia. (Dimension U)
5/16"

Details

Item
AC Gearmotor
Gearmotor Voltage
115 V AC
Gearmotor Phase
1
Gearmotor Type
AC Gearmotor
Max. Torque
18.0 in.-lb.
Gearmotor Shaft Type
Single
Gearmotor Shaft Orientation
Parallel
Nameplate RPM
4
Gearmotor Enclosure
Open
Gearmotor Rotation
CW
Gearmotor Brake Type
None
Full Load Amps
0.32
Standards
UL Recognized and CSA Certified
Input HP
1/250
Bearings
Porous Bronze Sleeve on Both Case and Motor
Shaft Orientation
Parallel
Motor Type
Shaded pole
Lubrication
Grease filled
Gear Ratio
734:1
Phase
1
Overhung Load
3.5 lb.
Enclosure
Open
Gear Material
Delrin/Steel
Hz
60
Rotation
CW
Voltage
115
Gears
Delrin/Steel
Thermal Protection
Impedance
RPM Range
0 to 15
Duty Cycle
Continuous
Gear Case Material
Die Cast Zinc
Housing
Die Cast Zinc

Description

AC Gearmotor, Motor Type Shaded Pole, Rotation CW, Gear Ratio 734:1, Shaft Orientation Parallel
