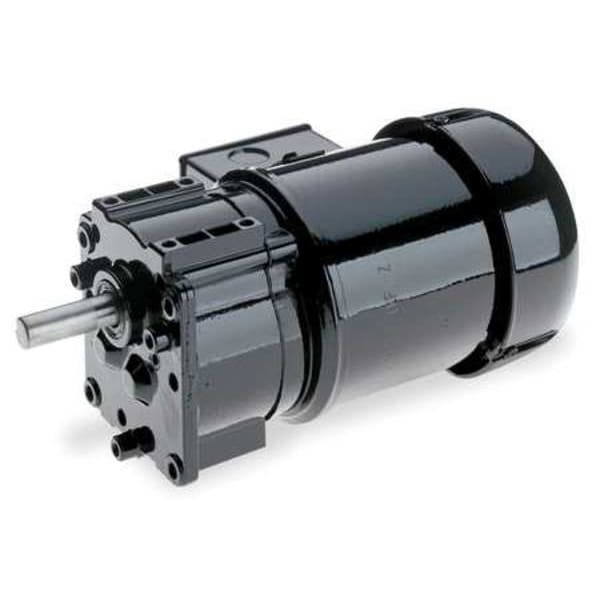

AC Gearmotor, 320 in-lb Max. Torque, 7.8 RPM Nameplate RPM, 115/230V AC Voltage, 1 Phase
Mfr # 6Z816
Zoro # G3052664
product price:Â $797.99
/ea
Free Shipping & Returns
Key Features
Gearmotor Voltage
115/230V AC
Gearmotor Phase
1
Gearmotor Type
AC Gearmotor
Max. Torque
320 in-lb
Gearmotor Shaft Type
Single
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
6Z816
Zoro #
G3052664
UPC #
190735374917
Country of Origin
United States
Dimensions
Length Less Shaft
9.56 in
Shaft Length (Dimension V)
1.5"
Shaft Dia. (Dimension U)
5/8 in
Overall Height
5.13 in
Overall Width
6 in
Mount Hole Center-to-Center Length
1.5 in
Keyway Width
3/16 mm
Output Shaft Diameter
5/8 in
Keyway Depth
1/16 in
Output Shaft Height
3.5 in
Mount Hole Center-to-Center Width
4 in
Output Shaft Length
1 1/2 in
Description
AC Gearmotor, Number of Output Shafts 1, Motor Type Permanent Split Capacitor, Motor Enclosure Totally Enclosed Fan-Cooled, Nameplate Speed 7.8 RPM, Maximum Torque 320 in-lb, Overhung Load Capacity 175 lb, Rotation CW/CCW, Output Shaft Height 3.5 in, Mounting Orientation Any Angle, Operating Voltage 115/230V AC, Inverter Rated No, Gear Ratio 216:1, Brake Type None, Shaft Orientation Parallel, Includes Capacitor Capacitor Included, AGMA Gear Class Class 9
