Shop DAYTON

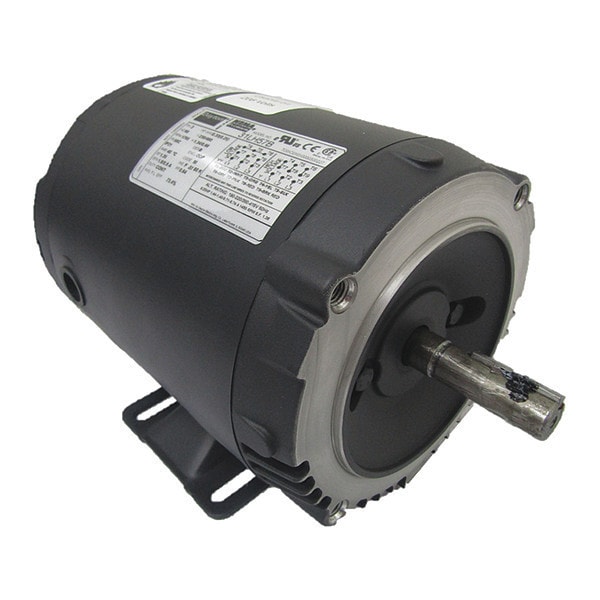

Three-Phase General Purpose Motor, 1/3 HP, 56C Frame, 230/460V AC Voltage, 1765 Nameplate RPM

  • Mfr # 31LH57

  • Zoro # G9096315

product price:  $266.99
/ea
Free Shipping & Returns

Key Features

HP
1/3
Nameplate RPM
1765
Voltage
230/460V AC
Motor Mounting Type
Rigid Base, C-Face
Full Load Amps
1.3/0.68 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
31LH57
Zoro #
G9096315
UPC #
190735255247
Country of Origin
Mexico

Dimensions

Length Less Shaft
6 15/16 in
Overall Length
10 5/16 in
Shaft Dia.
5/8 in
Shaft Length
1 7/8 in
Manufacturers Warranty Length
1 yr
Bolt Circle Diameter
5 7/8 in
Body Diameter
6.45 in
Frame Size
56C
Shaft Diameter
5/8 in

Details

Item
General Purpose Motor
HP
1/3
Nameplate RPM
1765
Voltage
230/460V AC
Motor Mounting Type
Rigid Base, C-Face
Full Load Amps
1.3/0.68 A
Frame
56C
Motor Bearings
Ball
Motor Service Factor
1.35
Motor Design
Three-Phase
Motor Enclosure Design
Open Drip Proof
RPM Range
1701-1800
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
73.4 %
Standards
CE, CSA, UL
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Footnotes
15,16
Includes
Shaft Key
Inverter Rated
Yes
Green Certification or Other Recognition
NEMA Premium(R) Rated
Motor Thermal Protection
None
Capacitor Required
No
Duty Cycle
Continuous
Shaft Design
Keyed
Manufacturers Warranty
1 yr
Bearing Protection Type
No Protection
Frame Material
Steel
Nameplate Service Factor @ 60 Hz
1.15
Usable @ 200V
Not Usable at 200V
Number of Speeds
1
Insulation Class
F
Product Type
General Purpose Motor
Bearing Lubrication Type
Permanently Lubricated
Conduit Box Location
Interior
Efficiency Rating
NEMA Premium Efficiency
Ambient Temperature - Maximum
40 Degrees C
Inverter Rating
Inverter Rated
Application
General Purpose
NEMA Design Class
B
Full Load Current @ 60 Hz
1.3 / 0.65 A
Usable @ 208V
Not Usable at 208V
Frequency
60 Hz
Variable Torque Rating
10:1
Weight
8 5/16 kg
Bearing Type
Ball
Motor Enclosure Type
Open Drip Proof

Description

General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 1/3 HP, Nameplate RPM 1765, Frame 56C, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 1.3/0.68 A, Rigid Base, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.35, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 73.4 Percent, Continuous Duty, 1701-1800, CE, CSA, UL
