Shop DAYTON

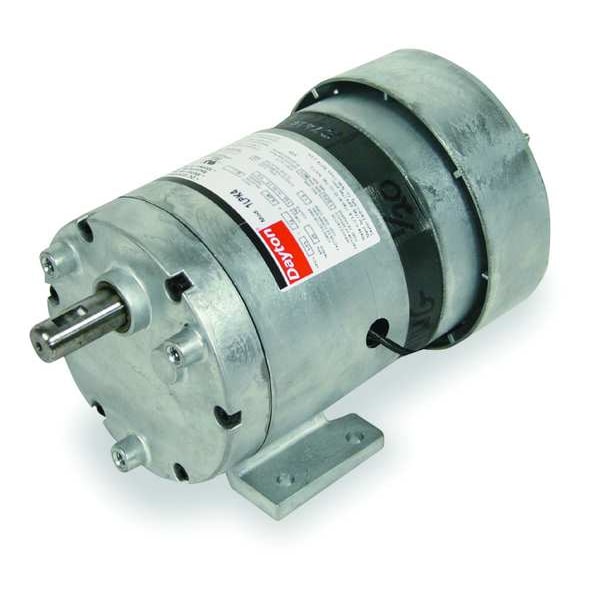

AC Gearmotor, 42 in-lb Max. Torque, 30 RPM Nameplate RPM, 115V AC Voltage, 1 Phase

  • Mfr # 1LPL9

  • Zoro # G2277012

product price:
$
553.99
/ea
Free Shipping & Returns

Key Features

Gearmotor Voltage
115V AC
Gearmotor Phase
1
Gearmotor Type
AC Gearmotor
Max. Torque
42 in-lb
Gearmotor Shaft Type
Single
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
1LPL9
Zoro #
G2277012
UPC #
190735144077
Country of Origin
Mexico
Item
AC Gearmotor
Gearmotor Voltage
115V AC
Gearmotor Phase
1
Gearmotor Type
AC Gearmotor
Max. Torque
42 in-lb
Gearmotor Shaft Type
Single
Gearmotor Shaft Orientation
Parallel
Nameplate RPM
30 RPM
Gearmotor Enclosure
Totally Enclosed Fan-Cooled
Gearmotor Rotation
CW
Gearmotor Brake Type
None
Gearmotor Mounting Position
All Angle
Full Load Amps
1.6 A
Standards
CSA Certified, UL Recognized
Input HP
1/20 hp
Voltage
115
Shaft Orientation
Parallel
Bearings
Ball on Motor, Porous Bronze Sleeve on Case
Shaft
Single Output
Thermal Protection
None
Reversible Shaft Output
No
Lubrication
Grease Filled
Overhung Load
150 lb
Gear Ratio
52:1
Gear Case Material
Die Cast Zinc
Hz
60 Hz
Max. Ambient Temp.
40 Degrees C
Housing
Die Cast Zinc
RPM Range
16 to 30
Seals
Lip Type on Output Shaft
Insulation Class
b
Finish
Unpainted
Gear Material
Acetyl, Steel
Gears
Acetyl/Steel
Mounting
All Position
Enclosure
TEFC
Rotation
CW
Phase
Single
Motor Type
Shaded Pole
Housing Material
Die Cast Zinc
Mount Type
Any Position
Housing Material Finish
Unpainted
Maximum Torque
42 in-lb
Mounting Orientation
Any Angle
Brake Type
None
Seal Type
Lip Type on Output Shaft
Keyway Type
Woodruff
Full Load Current
1.6 A
Nameplate Speed
30 RPM
Operating Voltage
115V AC
Input Horsepower
0.05 hp
Inverter Rated
No
Bearing Type
Ball on Motor, Porous Bronze Sleeve on Case
Inverter Rating
52:1
Overhung Load Capacity
150 lb
Motor Insulation Class
B
Number of Output Shafts
1
Motor Enclosure
Totally Enclosed Fan-Cooled
Maximum Ambient Temperature
104 Degrees F
Frequency
60 Hz

Description

AC Gearmotor, Number of Output Shafts 1, Motor Type Shaded Pole, Motor Enclosure Totally Enclosed Fan-Cooled, Nameplate Speed 30 RPM, Maximum Torque 42 in-lb, Overhung Load Capacity 150 lb, Rotation CW, Output Shaft Height 3.5 in, Mounting Orientation Any Angle, Operating Voltage 115V AC, Inverter Rated No, Gear Ratio 52:1, Brake Type None, Shaft Orientation Parallel, Motor Insulation Class B
