  6. AC Gearmotor, 50.0 in.-lb. Max. Torque, 1.1 Nameplate RPM, 115 V AC Voltage, 1 Phase

This item is Discontinued.

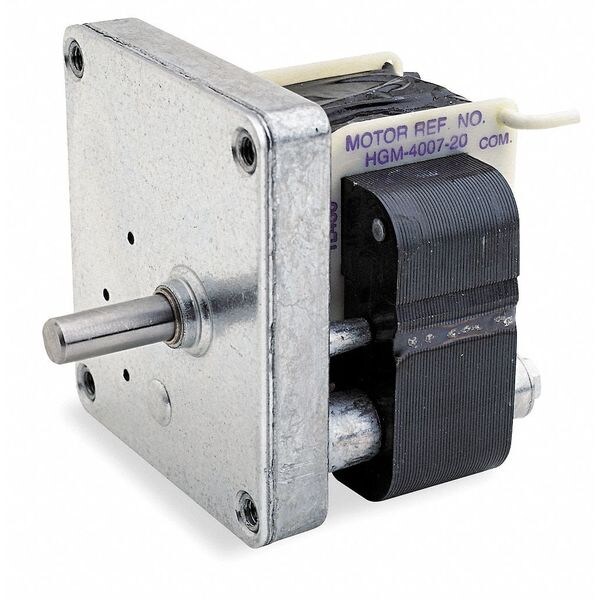

Dayton AC Gearmotor, 50.0 in.-lb. Max. Torque, 1.1 Nameplate RPM, 115 V AC Voltage, 1 Phase 3M095

AC Gearmotor, 50.0 in.-lb. Max. Torque, 1.1 Nameplate RPM, 115 V AC Voltage, 1 Phase (Discontinued)

  • Mfr # 3M095
  • Zoro # G2446543
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
3M095
Zoro #
G2446543
UPC #
190735291351
Country of Origin
United States

Dimensions

Length Less Shaft
2-1/16"
Dimension L
2.06"
Shaft Dia. (Dimension U)
5/16"
Shaft Length (Dimension V)
.75"

Details

Item
AC Gearmotor
Gearmotor Voltage
115 V AC
Gearmotor Phase
1
Gearmotor Type
AC Gearmotor
Max. Torque
50.0 in.-lb.
Gearmotor Shaft Type
Single
Gearmotor Shaft Orientation
Parallel
Nameplate RPM
1.1
Gearmotor Enclosure
Open
Gearmotor Rotation
CW
Gearmotor Brake Type
None
Gearmotor Mounting Position
All Angle
Full Load Amps
0.3
Standards
UL Recognized and CSA Certified
Input HP
1/250
Gear Material
Delrin and Powdered Iron
Voltage
115
Phase
1
Housing
Die Cast Zinc with Steel Cover
Gear Case Material
Die Cast Zinc with Steel Cover
Gear Type
Helical First Stage/Balance Spur
Gear Ratio
2645:1
Enclosure
Open
Lubrication
Grease filled
RPM Range
0 to 15
Gears
Delrin/Steel
Shaft Orientation
Parallel
Mounting
All Position
Bearings
Oil Impregnated Sintered Bronze
Hz
60
Overhung Load
3.5 lb.
Application
Restaurant Equipment, Water Softener Valve Controls
Starting Torque
50 in.-lb.
Motor Type
Shaded pole
Rotation
CW
Insulation Class
b
Thermal Protection
Impedance

Description

AC Gearmotor, Motor Type Shaded Pole, Rotation CW, Gear Ratio 2645:1, Shaft Orientation Parallel, Application Restaurant Equipment, Water Softener Valve Controls
