  11. AC Gearmotor, 600.0 in-lb Max. Torque, 6 RPM Nameplate RPM, 115V AC Voltage, 1 Phase
Shop All AC Gear Motors
Dayton

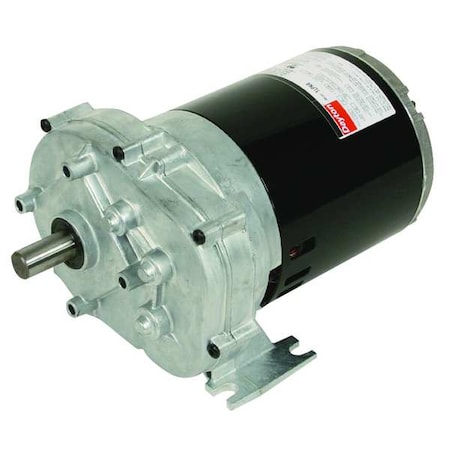

AC Gearmotor, 600.0 in-lb Max. Torque, 6 RPM Nameplate RPM, 115V AC Voltage, 1 Phase

Hover or click to zoom Tap to zoom
Key Features
  • Item: AC Gearmotor
  • Gearmotor Voltage: 115V AC
  • Gearmotor Phase: 1
  • Gearmotor Type: AC Gearmotor
  • Max. Torque: 600.0 in-lb
  • Gearmotor Shaft Type: Single
  • Gearmotor Shaft Orientation: Parallel
  • Nameplate RPM: 6 RPM
See full product details
$605.83
Join our email list for 10% off your first order
For 10% Off Your First Order
Free Shipping on $50+ Orders
No-Hassle, 30-Day Returns 30-Day Returns
125 U.S.-Based Customer Service Agents 125 U.S.-Based Customer Service Agents

Dayton #1LPP7 Specifications

  • Item: AC Gearmotor
  • Gearmotor Voltage: 115V AC
  • Gearmotor Phase: 1
  • Gearmotor Type: AC Gearmotor
  • Max. Torque: 600.0 in-lb
  • Gearmotor Shaft Type: Single
  • Gearmotor Shaft Orientation: Parallel
  • Nameplate RPM: 6 RPM
  • Gearmotor Enclosure: Open Dripproof
  • Gearmotor Rotation: CW/CCW
  • Gearmotor Brake Type: None
  • Length Less Shaft: 9 7/8 in
  • Gearmotor Mounting Position: All Angle
  • Full Load Amps: 3.1
  • Keyway Size Type: #605 Woodruff Key
  • Standards: UL Recognized, C-UL Recognized
  • Input HP: 1/4 hp
  • Gears: Phenolic/Steel
  • Overhung Load: 300 lb
  • Housing: Die Cast Zinc
  • Gear Material: Steel/Phenolic
  • Phase: 1
  • Max. Ambient Temp.: 40 Degrees C
  • Shaft Length (Dimension V): 1.5 in_x000D_
  • Lubrication: Grease filled
  • Gear Case Material: Die Cast Zinc
  • Shaft Orientation: Parallel
  • Seals: Lip Type on Input and Output Shaft
  • Bearings: Porous Bronze Sleeve on Case, Ball on Motor
  • RPM Range: 0 to 15
  • Voltage: 115
  • Finish: Unpainted
  • Enclosure: ODP
  • Keyway Size: #605 Woodruff Key
  • Insulation Class: b
  • Rotation: Reversible
  • Hz: 60 Hz
  • Mounting: All Position
  • Motor Type: Split-phase
  • Shaft Dia. (Dimension U): 3/4 in
  • Thermal Protection: None
  • Reversible Shaft Output: No
  • Shaft: Single Output
  • Gear Ratio: 286:1
  • Country of Origin (subject to change): United States

Description

AC Gearmotor, Gearmotor Voltage 115V AC, 1 Gearmotor Phase, Max. Torque 600 in-lb, Single Gearmotor Shaft Type, Gearmotor Shaft Orientation Parallel, Gearmotor Rotation CW/CCW, Nameplate RPM 6 RPM, Open Dripproof Gearmotor Enclosure, All Angle Gearmotor Mounting Position, 60 Hz Hz, Overhung Load 300 lb, Input HP 1/4 hp, Gear Ratio 286:1, Full Load Amps 3.1, Insulation Class B, None Thermal Protection, Motor Type Split-Phase, Unpainted Finish, Die Cast Zinc Housing
