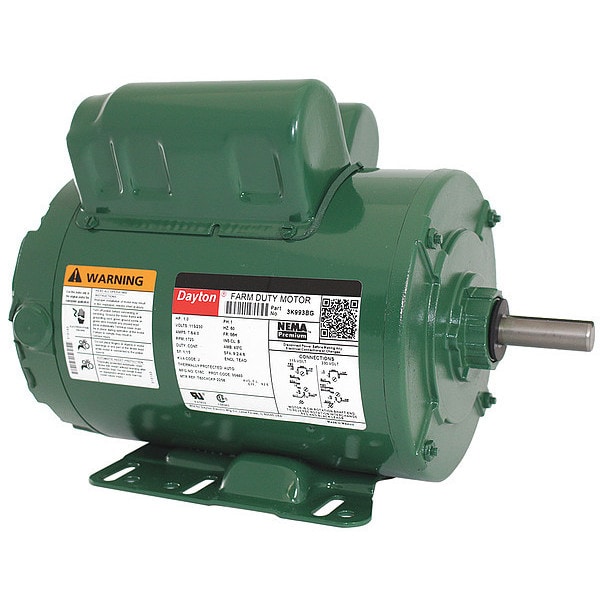

Dayton Agricultural Fan Motor, Capacitor-Start/Run, 1 HP, 115/230V AC, 1,725 Nameplate RPM, 56H Frame 3K993 - main

Agricultural Fan Motor, Capacitor-Start/Run, 1 HP, 115/230V AC, 1,725 Nameplate RPM, 56H Frame

  • Mfr # 3K993

  • Zoro # G2103967

product price:  $416.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Capacitor-Start/Run
Phase
Single
HP
1
RPM Range
1,701-1,800
Voltage
115/230V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
3K993
Zoro #
G2103967
UPC #
190735290293
Country of Origin
Multiple

Dimensions

Overall Length
11 15/16 in
Length Less Shaft
10 1/16 in
Shaft Length
1 7/8 in
Shaft Dia.
5/8 in

Details

Item
Agricultural Fan Motor
Motor Design
Capacitor-Start/Run
Phase
Single
HP
1
RPM Range
1,701-1,800
Voltage
115/230V AC
Frame
56H
Motor Service Factor
1.15
Motor Thermal Protection
Auto
Motor Enclosure Design
Totally Enclosed Air-Over
Nameplate RPM
1,725
Motor Application
Farm Duty
Motor Frame Material
Rolled Steel
Motor Mounting Position
Horizontal
Motor Mounting Type
Rigid Base
Motor Sub Application
Agricultural Fan
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Standards
CSA Certified (258501), UL Recognized (E37403)
Max. Ambient Temperature
40 Degrees C
Nominal Efficiency
80 %
Motor Bearings
Ball
Ins. Class
B
Full Load Amps
7.9/4.0 A
Capacitor Required
Included
Item - Farm Duty Motors
Agricultural Fan Motor
Hz
60 Hz
Duty
Continuous Air Over
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
Includes
Shaft Key, Gasketed Capacitor Cover, Conduit Box, Shaft Slinger
Duty Cycle
Continuous
Max. Ambient Temp.
40 Degrees C
No. of Speeds
1

Description

Farm Duty Motor, Single Phase, Motor Design Capacitor-Start/Run, 1 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 7.9/4.0 A, 56H Frame, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal, Motor Frame Material Steel
