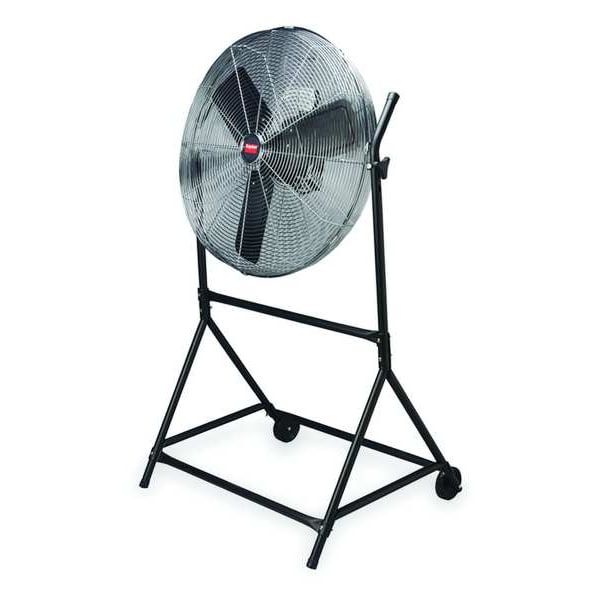

Air Circulator 24" Non-Oscillating, 115VAC, 4200/4550/4950 CFM

Dayton Air Circulator 24" Non-Oscillating,  115VAC,  4200/4550/4950 CFM 2LY92
Tap to zoom
Hover or click to zoom
Feedback Help us improve our product images
$227.64
  • Item: Air Circulator
  • Blade Diameter: 24"
  • Oscillation: Non-Oscillating
See full product details
This item ships free.
Total: $227.64

Dayton #2LY92 Specifications

  • Item: Air Circulator
  • Blade Diameter: 24"
  • Oscillation: Non-Oscillating
  • Air Flow: 4200/4550/4950 CFM
  • Voltage: 115VAC
  • Number of Speeds: 3
  • Motor HP: 1/4
  • Material: Steel
  • Color: Black
  • Number of Blades: 3
  • Includes: Cart, Tilt Kit and 4" Diameter Wheels
  • Phase: 1
  • Height: 52"
  • Thermal Protection: Auto
  • Wire Guard Finish: Chrome Plated
  • Oscillating / Non-Oscillating: Non-Oscillating
  • Motor Enclosure: Open Air-Over
  • Operating Amps: 2.7/2.3/2.1
  • Max. Ambient Temp.: 104 Degrees F
  • Blade Dia.: 24"
  • Blade Material: Black Painted Steel
  • Bearing Type: Sleeve
  • Watts: 310/270/240
  • CFM Medium: 4550
  • Fan Style: Standard
  • Housing Material: Steel
  • Shaft Dia.: 12.7mm
  • Speeds: 3
  • Drive Type: Direct
  • Cord Length: 9 ft.
  • Mobile/Stationary: Stationary
  • Oscillating: No
  • Number of Conductors: 3
  • CFM Low: 4200
  • Motor Insulation: Class B
  • Hz: 60
  • Max. Depth: 29"
  • Fan Mounting Location: Floor
  • Environmental Applications: Light Commercial
  • Application: People cooling
  • Width: 34"
  • Fan Accessory Style: Standard
  • Standards: cULus Listed E19455, OSHA compliant wire guards
  • Guard Material: Steel
  • CFM High: 4950
  • Assembled: Partially Assembled
  • Motor RPM: 1500/1300/1100
  • NEMA Plug Configuration: 5-15P
  • Motor Type: Shaded pole
  • Fan RPM: 1500/1300/1100
  • Frame Material: Steel
  • Includes Remote Control: No
  • Depth: 29 in
  • Fan Cord Length: 9 ft
  • Country of Origin (subject to change): China
Feedback Help us improve our product information

Description

Mobile Floor Fan, Overall Style - Fans Mobile, Fan Mounting Location Floor, Number of Speeds 3, Blade Dia. 24 in, Non-Oscillating, Fan Cord Length 9 ft, Fan Power Source Plug-In, 310/270/240 Watts, 1500/1300/1100 RPM, Number of Blades 3, Fan, Length 34 In., 2.7/2.3/2.1 Amps, Height 52 in, Width 34 in, 60 Hz, Bearing Type Sleeve, Blade Material Black Painted Steel, Steel, 3, 5-15P, Black, cULus Listed E19455, OSHA compliant wire guards, 4 in Diameter Wheels, Cart, Tilt Kit
