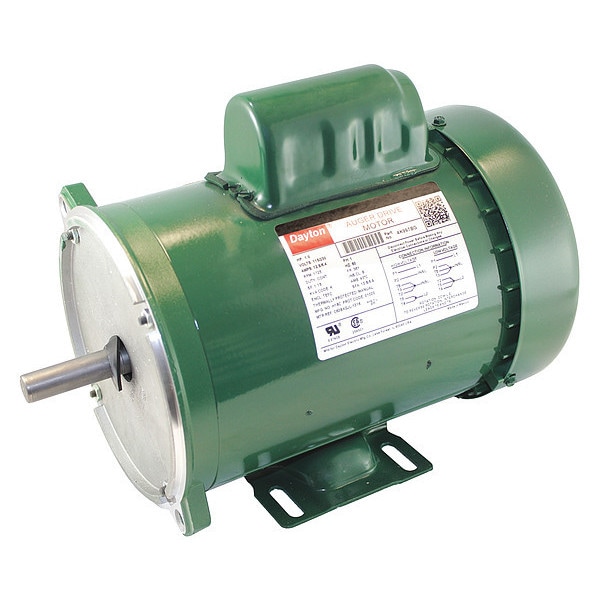

Dayton Auger Drive Motor, Capacitor-Start, 1 HP, 115/230V AC, 1,725 Nameplate RPM, 56Y Frame 4K997 - main

Auger Drive Motor, Capacitor-Start, 1 HP, 115/230V AC, 1,725 Nameplate RPM, 56Y Frame

  • Mfr # 4K997

  • Zoro # G0992957

product price:  $462.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Capacitor-Start
Phase
Single
HP
1
RPM Range
1,701-1,800
Voltage
115/230V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
4K997
Zoro #
G0992957
UPC #
190735327616
Country of Origin
Mexico

Dimensions

Shaft Length
2 1/8 in
Length Less Shaft
10 13/16 in
Overall Length
12 15/16 in
Shaft Dia.
5/8 in

Details

Item
Auger Drive Motor
Motor Design
Capacitor-Start
Phase
Single
HP
1
RPM Range
1,701-1,800
Voltage
115/230V AC
Frame
56Y
Motor Service Factor
1.15
Motor Thermal Protection
Manual
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Nameplate RPM
1,725
Motor Application
Farm Duty
Motor Frame Material
Rolled Steel
Motor Mounting Position
Horizontal
Motor Mounting Type
Face/Base
Motor Shaft Design
Keyed
Motor Sub Application
Auger
Motor Shaft Rotation
CW/CCW
Standards
CSA Certified (258501), UL Recognized (E37403)
Includes
Gasketed Conduit Box and Capacitor Cover, Shaft Extension beyond fan guard for manual cranking and Shaft Key
Motor Bearings
Ball
Capacitor Required
Included
Duty
Continuous
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
Nominal Efficiency
71.3 %
Ins. Class
B
Hz
60 Hz
Frame Material
Rolled steel
Item - Farm Duty Motors
Auger Drive Motor
Max. Ambient Temperature
40 Degrees C
Finish
Green
Full Load Amps
12.8/6.4 A
Max. Ambient Temp.
40 Degrees C
No. of Speeds
1
Duty Cycle
Continuous

Description

Farm Duty Motor, Single Phase, Motor Design Capacitor-Start, 1 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 12.8/6.4 A, 56Y Frame, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection Manual, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type C-Face, Motor Mounting Position Horizontal, Motor Frame Material Steel, Finish Green
