Shop DAYTON

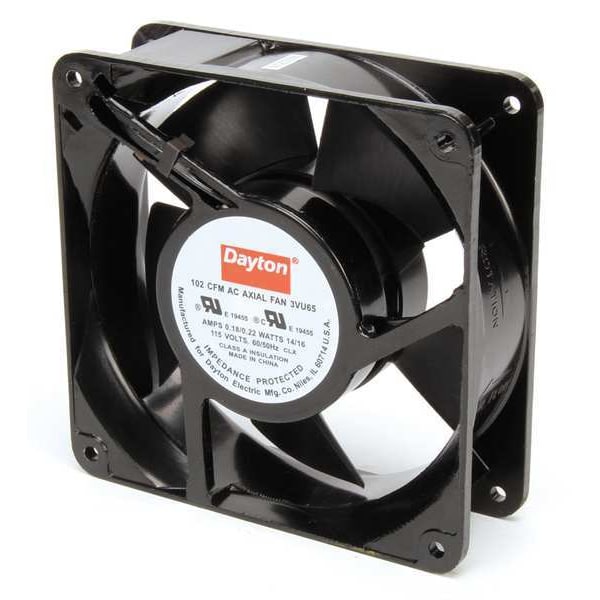

Axial Fan, Square, 115V AC, 1 Phase, Cast Aluminum, 4 11/16 in W.

  • Mfr # 3VU65
  • Zoro # G3154347
product price:
$
41.89
/ea

Key Features

Blade Material
Polybutylene Terephthalate
CFM @ 0.000-In. SP
62 cfm, 90 cfm
Depth
1 1/2 in
Height
4 11/16 in
Housing Material
Aluminum
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
3VU65
Zoro #
G3154347
UPC #
190735294772
Country of Origin
China
Blade Material
Polybutylene Terephthalate
CFM @ 0.000-In. SP
62 cfm, 90 cfm
Housing Material
Aluminum
Phase
1
Shape
Square
Watts
14/16 W
Voltage
115V AC
Mounting Eye O.C.
4 1/8 in
Motor Insulation
A
Fan Voltage
115VAC
Electrical Connections
Terminals
Fan Shape
Square
Fan dBA
45/48
Amps
0.18/0.22 A
Item
Axial Fan
Hz
50/60 Hz
Fan Item
Axial Fan
Housing Finish
Black Painted
Fan RPM
2600/3000
Requires
Cord Set (Not Included)
dBA
48
Bearings
Ball
Thermal Protection
Yes
Fan Watts
16.0/14.0
Mounting Position
Horizontal/Vertical
Electrical Connection - Fans
Terminals
Standards
RoHS Compliant, UL Recognized
Mounting Eye O.C. - Fans
4-1/8"
Max. Ambient Temp.
158 Degrees F
Motor Type
Shaded pole
IP Rating
IP20
RPM
2,600 RPM, 3,000 RPM
Color
Black
Environmental Applications
Equipment Cooling
Motor Design
Shaded Pole
Bearing Type
Ball
Sound Level - Minimum
45 dBA
Environment Rating
Dry
Sound Level
48 dBA
Includes Filter
No
Includes Guard
No
Removable Base
Permanently Lubricated

Description

Axial Fan, Fan Shape Square, Mounting Eye O.C. 4 1/8 in, Height 4 11/16 in, Diameter Not Applicable, Depth 1 1/2 in, Width 4 11/16 in, CFM @ 0.000-In. SP 62 cfm, 90 cfm, Watts 14/16 W, Voltage 115V AC, 60/50 Hz Hz, 0.18/0.22 A Amps, Electrical Connection - Fans Terminals, Sound Level 48 dBA, IP Rating IP20, Fan Mounting Location Enclosure, Mounting Position Horizontal/Vertical, Bearing Type Ball, 2,600 RPM, 3,000 RPM RPM, Motor Design Shaded Pole, Motor Insulation A, Thermal Protection Yes
