  9. Axial Fan, Square, 12V DC, - Phase, 36.5 cfm, 3 1/8 in W.
This item is Discontinued.

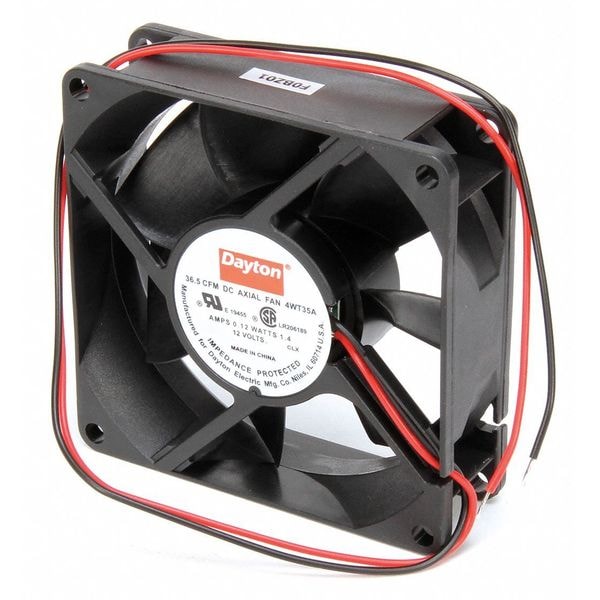

Dayton Axial Fan, Square, 12V DC, - Phase, 36.5 cfm, 3 1/8 in W. 4WT35

Axial Fan, Square, 12V DC, - Phase, 36.5 cfm, 3 1/8 in W. (Discontinued)

  • Mfr # 4WT35
  • Zoro # G0394983
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
4WT35
Zoro #
G0394983
UPC #
190735336854
Country of Origin
China

Dimensions

Depth
1 in
Height
3 1/8 in
Width
3 1/8 in
Fan Width
3-1/8"
Fan Depth
1"
Fan Height
3-1/8"
Fan Width
3-1/8"

Details

Blade Material
Polybutylene Terephthalate
CFM @ 0.000-In. SP
105/85 cfm
Housing Material
PBT Plastic
Shape
Square
Watts
1.4 W
Voltage
12V DC
Fan Voltage
12VDC
Mounting Eye O.C. - Fans
2-13/16"
Mounting Eye O.C.
2 13/16 in
Fan dBA
31
Electrical Connections
12" Leads
Fan Watts
1.4
Item
Axial Fan
Electrical Connection - Fans
12" Leads
Motor Insulation
Class A
Motor Type
Brushless DC
Fan RPM
2700
Thermal Protection
Impedance
Housing Finish
Black Painted
Bearings
Sleeve
Mounting Position
Horizontal
Fan Shape
Square
Fan Item
Axial Fan
Standards
UL and cUL Component Recognized
dBA
31
Amps
0.12 A
Max. Ambient Temp.
158 Degrees F
IP Rating
IP20
Color
Black
Bearing Type
Sleeve
RPM
2900 RPM
Motor Design
Brushless DC
Environmental Applications
Equipment Cooling

Description

Standard Square Axial Fan, Fan Shape Square, Mounting Eye O.C. 2 13/16 in, Height 3 1/8 in, Depth 1 in, Width 3 1/8 in, CFM @ 0.000-In. SP 105/85 cfm, Watts 1.4 W, Voltage 12V DC, - Hz, 0.12 A Amps, Electrical Connection - Fans Lead Wires, Sound Level 31, IP Rating IP20, Mounting Position Horizontal, Bearing Type Sleeve, 2900 RPM RPM, Motor Design Brushless DC, Motor Insulation Class A, Thermal Protection Impedance, Max. Ambient Temp. 158 Degrees F, Blade Material Polybutylene Terephthalate
