  5. Axial Fan, Square, 12V DC, - Phase, 74.5 cfm, 3 1/8 in W.

This item is Discontinued.

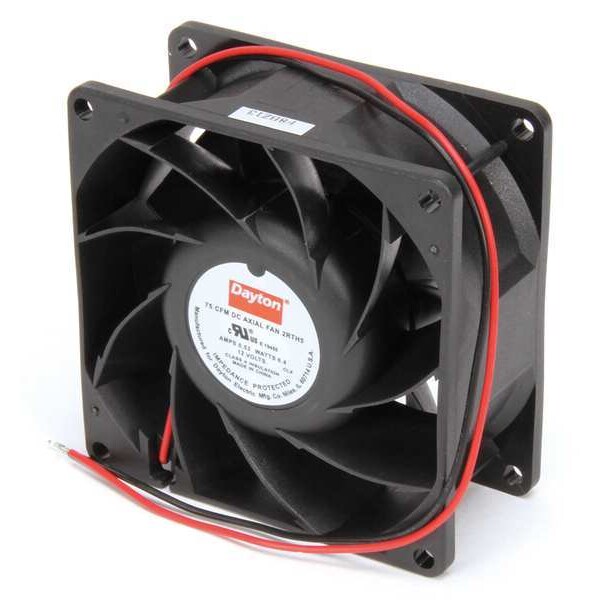

Dayton Axial Fan, Square, 12V DC, - Phase, 74.5 cfm, 3 1/8 in W. 2RTH5

Axial Fan, Square, 12V DC, - Phase, 74.5 cfm, 3 1/8 in W. (Discontinued)

  • Mfr # 2RTH5
  • Zoro # G1659323
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2RTH5
Zoro #
G1659323
UPC #
190735230275
Country of Origin
China

Dimensions

Depth
1 1/2 in
Height
3 1/8 in
Width
3 1/8 in
Fan Depth
1-1/2"
Fan Width
3-1/8"
Fan Width
3-1/8"
Fan Height
3-1/8"

Details

Blade Material
Polybutylene
CFM @ 0.000-In. SP
84 cfm
Housing Material
PBT Plastic
Shape
Square
Watts
6.4 W
Voltage
12V DC
Max. Ambient Temp.
158 Degrees F
Motor Insulation
Class A
Housing Finish
Black Painted
Item
Axial Fan
Fan Item
Axial Fan
Mounting Eye O.C.
2 13/16 in
Electrical Connections
12" Leads
Thermal Protection
Impedance
Electrical Connection - Fans
12" Leads
Mounting Position
Vertical or Horizontal
Amps
0.53 A
Fan RPM
4900
Fan Watts
6.4
Bearings
Ball
Fan Shape
Square
Mounting Eye O.C. - Fans
2-13/16"
Fan dBA
51.6
Fan Voltage
12VDC
Standards
CE Certified and RoHS Compliant, UL Component Recognized for US and Canada
dBA
51.6
IP Rating
IP20
Bearing Type
Ball
Motor Design
Brushless DC
Environmental Applications
Equipment Cooling
Color
Black
RPM
4900 RPM

Description

Standard Square Axial Fan, Fan Shape Square, Mounting Eye O.C. 2 13/16 in, Height 3 1/8 in, Depth 1 1/2 in, Width 3 1/8 in, CFM @ 0.000-In. SP 84 cfm, Watts 6.4 W, Voltage 12V DC, - Hz, 0.53 A Amps, Electrical Connection - Fans Lead Wires, Sound Level 51.6, IP Rating IP20, Mounting Position Vertical or Horizontal, Bearing Type Ball, 4900 RPM RPM, Motor Design Brushless DC, Motor Insulation Class A, Thermal Protection Impedance, Max. Ambient Temp. 158 Degrees F, Blade Material Polybutylene
