  5. Axial Fan, Square, 12V DC, - Phase, 84.1 cfm, 3 1/8 in W.

This item is Discontinued.

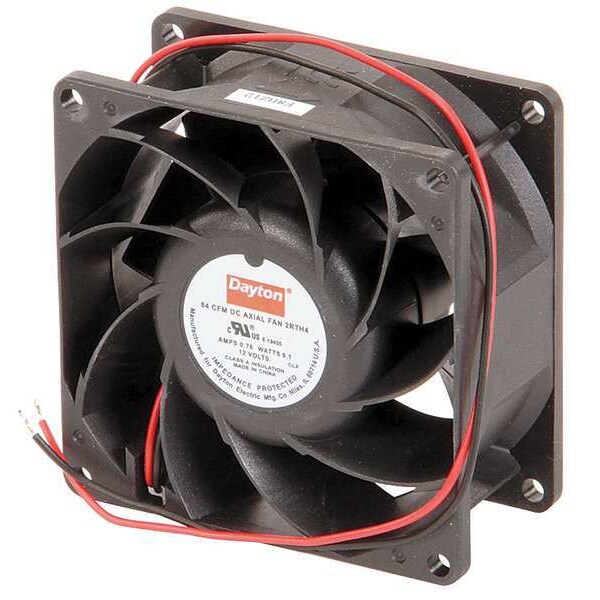

Dayton Axial Fan, Square, 12V DC, - Phase, 84.1 cfm, 3 1/8 in W. 2RTH4

Axial Fan, Square, 12V DC, - Phase, 84.1 cfm, 3 1/8 in W. (Discontinued)

  • Mfr # 2RTH4
  • Zoro # G2551543
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2RTH4
Zoro #
G2551543
UPC #
190735230268
Country of Origin
China

Dimensions

Depth
1 1/2 in
Height
3 1/8 in
Width
3 1/8 in
Fan Width
3-1/8"
Fan Depth
1-1/2"
Fan Height
3-1/8"
Fan Width
3-1/8"

Details

Blade Material
Polybutylene
CFM @ 0.000-In. SP
31.5 cfm
Housing Material
PBT Plastic
Shape
Square
Watts
9.1 W
Voltage
12V DC
Fan Watts
9.1
Standards
CE Certified and RoHS Compliant, UL Component Recognized for US and Canada
Fan Voltage
12VDC
Amps
0.76 A
Fan dBA
55.2
Fan Shape
Square
Item
Axial Fan
Bearings
Ball
Fan RPM
5700
dBA
55.2
Mounting Position
Vertical or Horizontal
Electrical Connections
12" Leads
Fan Item
Axial Fan
Mounting Eye O.C. - Fans
2-13/16"
Thermal Protection
Impedance
Max. Ambient Temp.
158 Degrees F
Motor Insulation
Class A
Housing Finish
Black Painted
Electrical Connection - Fans
12" Leads
Mounting Eye O.C.
2 13/16 in
IP Rating
IP20
Color
Black
Environmental Applications
Equipment Cooling
RPM
5700 RPM
Bearing Type
Ball
Motor Design
Brushless DC

Description

Standard Square Axial Fan, Fan Shape Square, Mounting Eye O.C. 2 13/16 in, Height 3 1/8 in, Depth 1 1/2 in, Width 3 1/8 in, CFM @ 0.000-In. SP 31.5 cfm, Watts 9.1 W, Voltage 12V DC, - Hz, 0.76 A Amps, Electrical Connection - Fans Lead Wires, Sound Level 55.2, IP Rating IP20, Mounting Position Vertical or Horizontal, Bearing Type Ball, 5700 RPM RPM, Motor Design Brushless DC, Motor Insulation Class A, Thermal Protection Impedance, Max. Ambient Temp. 158 Degrees F, Blade Material Polybutylene
