Shop DAYTON

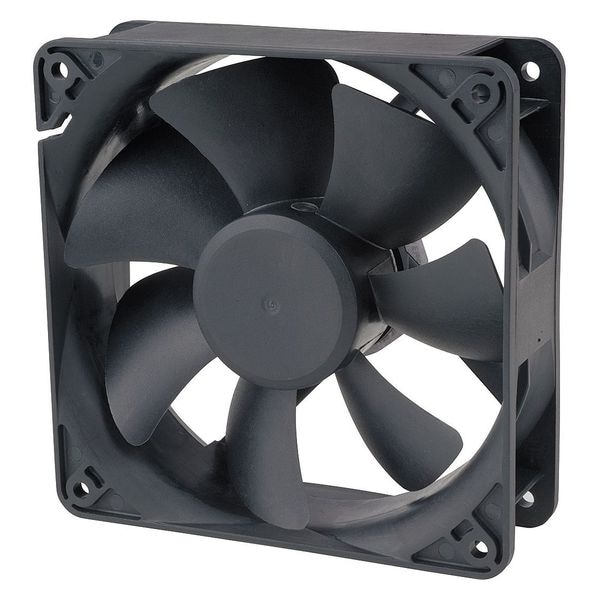

Axial Fan, Square, 24V DC, PBT Plastic, 4 11/16 in W.

  • Mfr # 31CC85

  • Zoro # G8567964

product price:  $29.59
/ea

Key Features

Blade Material
Polybutylene Terephthalate
CFM @ 0.000-In. SP
80 cfm, 105 cfm
Depth
1 in
Height
4 11/16 in
Housing Material
Polybutylene Terephthalate
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
31CC85
Zoro #
G8567964
UPC #
190735249475
Country of Origin
China

Dimensions

Depth
1 in
Height
4 11/16 in
Width
4 11/16 in
Fan Dia.
4-11/16"
Fan Width
4-11/16"
Fan Depth
1"
Fan Width
4-11/16"
Fan Height
4-11/16"
Lead Length
13 in

Details

Blade Material
Polybutylene Terephthalate
CFM @ 0.000-In. SP
80 cfm, 105 cfm
Housing Material
Polybutylene Terephthalate
Shape
Square
Watts
5 W
Voltage
24V DC
Fan Shape
Square
IP Rating
IP55
Housing Finish
Black
Amps
0.207 A
Fan RPM
3100
Max. Ambient Temp.
158 Degrees F
Fan dBA
44.5
dBA
44.5
Mounting Eye O.C. - Fans
4-1/8"
Bearings
Ball
Fan Watts
5.0
Mounting
Flange
Motor Type
DC
Mounting Position
Horizontal/Vertical
Electrical Connection - Fans
Lead Wires
Mounting Eye O.C.
4 1/8 in
Electrical Connections
12" Leads
Fan Voltage
24VDC
Motor Insulation
A
Standards
RoHS Compliant (IP55 fans are TUV compliant).
Fan Item
Axial Fan
Item
Axial Fan
Thermal Protection
Yes
Bearing Type
Ball
RPM
3,100 RPM
Environmental Applications
Equipment Cooling
Motor Design
DC
Color
Black
Sound Level - Minimum
44.5 dBA
Includes Filter
No
Removable Base
Permanently Lubricated
Environment Rating
Wet
Includes Guard
No
Sound Level
44.5 dBA
Hz
60/50 Hz
Bearing Protection
Shielded

Description

Wet-Location Square Axial Fan, Fan Shape Square, Mounting Eye O.C. 4 1/8 in, Height 4 11/16 in, Depth 1 in, Width 4 11/16 in, CFM @ 0.000-In. SP 105/80 cfm, Watts 5 W, Voltage 24V DC, 0.207 A Amps, Electrical Connection - Fans Lead Wires, Sound Level 44.5, IP Rating IP55, Mounting Position Vertical or Horizontal, Bearing Type Ball, 3100 RPM RPM, Motor Design DC, Motor Insulation Class A, Thermal Protection Electronic, Max. Ambient Temp. 158 Degrees F
