Shop DAYTON

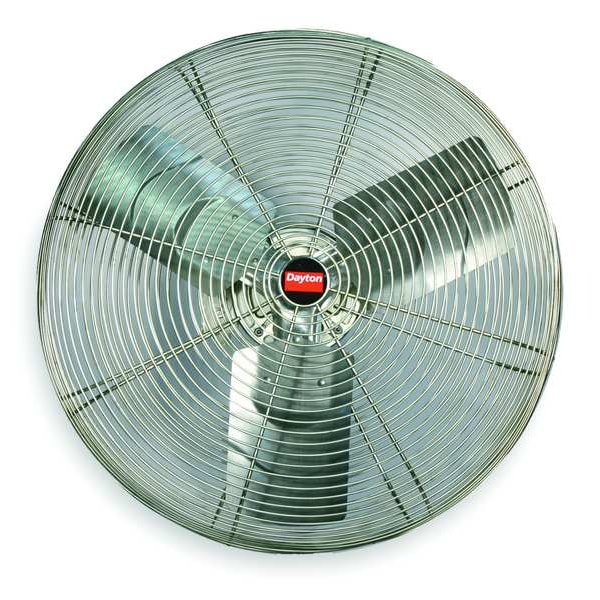

Washdown Industrial Washdown Fan, Wall Mount, 24 in Blade Dia, 115/230V, 6,849 cfm, Non-Oscillating

  • Mfr # 1VCG1

  • Zoro # G0937571

product price:  $753.99
/ea
Free Shipping & Returns

Key Features

Blade Diameter
24 in
Oscillation
Non-Oscillating
Number of Speeds
1
Voltage
115/230V
Phase
1
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
1VCG1
Zoro #
G0937571
UPC #
190735148488
Country of Origin
China

Dimensions

Blade Diameter
24 in
Width
27 in
Max. Depth
24 in
Outside Dia.
27 in
Shaft Dia.
1/2 in
Height
32 in
Depth
23 in
Height Adjustment
Fixed Height
Max. Mounting Height
Unrestricted

Details

Oscillation
Non-Oscillating
Number of Speeds
1
Voltage
115/230V
Phase
1
Motor HP
1/3
Air Flow
6,849 cfm
Drive Type
Direct Drive
Blade Material
Aluminum
Fan Power Source
Hardwired
Sound Level
77 dBA
Item
Industrial Washdown Fan
Fan Mounting Location
Wall
Air Velocity @ 60 Ft.
170 fpm
Hz
60 Hz
Motor Insulation
Class F
Includes
Conduit Box, Mounting Hardware, Mounting Bracket, Secondary Safety Support Cable
Air Velocity @ 40 Ft.
245 fpm
Motor RPM
1,100 RPM
Bearing Type
Ball
Fan Style
Washdown
Air Velocity @ 10 Ft.
1090 fpm
Number of Blades
3
Housing Material
Steel
Max. Ambient Temp.
104 Degrees F
Motor Enclosure
Totally Enclosed Air Over
Wire Guard Finish
Zinc Plated
Fan Accessory Style
Washdown
Air Velocity @ 20 Ft.
732 fpm
Environmental Applications
Industrial
Mobile/Stationary
Stationary
Guard Material
Steel
Assembled
Yes
Watts
400 W
Application
Spot cooling for food and beverage processing plants
Thermal Protection
Automatic Reset
Standards
cULus, UL 507, OSHA Compliant Guards
Motor Type
Permanent Split Capacitor
CFM High
6849
Assembly Required
No
Color
Gray
Amps
3.6/1.8
Wheeled Base
Stationary
Fan Housing Material
Steel
RPM
1,100 RPM
Material
Steel
Motor hp
1/3 hp
NEMA plug Configuration
Hardwired
Environment Rating
Wet
Removable Base
Permanently Lubricated
Corrosion-Resistant
Yes
Features
AC Motor
Head Tilt Adjustment
90 Degrees
IP Rating
Not Rated
For Location
Outdoor
Motor Design
Permanent Split Capacitor
Number of Conductors
0
Mount Type
Bracket
Smart Connectivity
Not Bluetooth Compatible, Not Wi-Fi Compatible
Airflow
6,900 cfm
Fan Shape
Basket
Bearing Protection
Double-Sealed
Guard Color
Silver
High-Visibility
No

Description

Mounted Fan, Blade Dia. 24 in, Stationary, Non-Oscillating, 1 Speeds, Voltage 115/230V AC, 1 Phase, CFM High 6849, Air Velocity @ 20 Ft. 590 fpm, Motor HP 1/3 hp, Motor RPM 1100, Operating Amps 3.6/1.8, Fan Mounting Location Wall, Fan Accessory Style Washdown, Fan RPM 1100, Sound Level 77 dBA, Max. Ambient Temp. 104 Degrees F, Hz 60 Hz, Watts 400 W, Motor Type Permanent Split Capacitor, Drive Type Direct Drive, Outside Dia. 27 In., Height 32 in, Width 27 in, Max. Depth 24 In.

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
