  9. Axial Fan, Square, 24V DC, - Phase, 19.3 cfm, 2 3/8 in W.
Dayton

Axial Fan, Square, 24V DC, - Phase, 19.3 cfm, 2 3/8 in W.

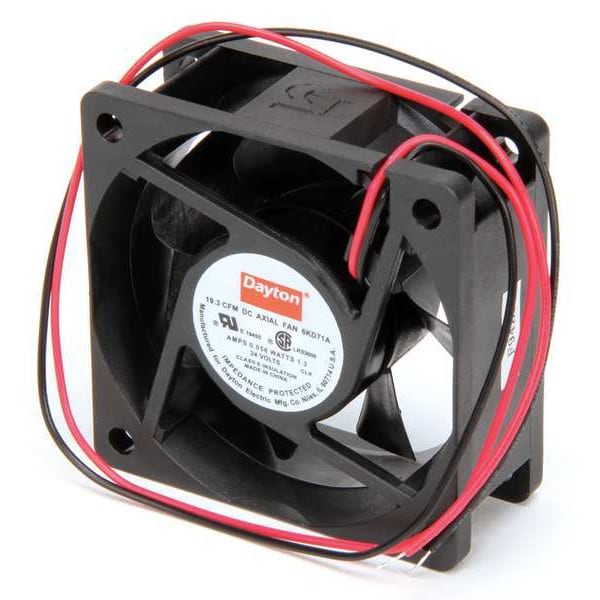

Dayton Axial Fan, Square, 24V DC, - Phase, 19.3 cfm, 2 3/8 in W. 6KD71
Hover or click to zoom Tap to zoom
$34.17
  • Blade Material: Polybutylene Terephthalate
  • CFM @ 0.000-In. SP: 19.3
  • Depth: 1 in
See full product details
Orders over $75 ship free.
Total: $34.17

Dayton #6KD71 Specifications

  • Blade Material: Polybutylene Terephthalate
  • CFM @ 0.000-In. SP: 19.3
  • Depth: 1 in
  • Height: 2 3/8 in
  • Housing Material: PBT Plastic
  • Phase: -
  • Shape: Square
  • Watts: 1.3
  • Width: 2 3/8 in
  • Voltage: 24V DC
  • Fan Voltage: 24VDC
  • Mounting Eye O.C. - Fans: 1-15/16"
  • Motor Insulation: Class A
  • Fan Shape: Square
  • dBA: 30
  • Max. Ambient Temp.: 158 Degrees F
  • Standards: RoHS Compliant
  • Motor Type: Brushless DC
  • Fan Depth: 1"
  • Electrical Connections: 12" Leads
  • Fan RPM: 3800
  • Fan Width: 2-3/8"
  • Hz: -
  • Requires: -
  • Electrical Connection - Fans: 12" Leads
  • Mounting Position: Vertical or Horizontal
  • Housing Finish: Black Painted
  • Fan Width: 2-3/8"
  • Fan Watts: 1.3
  • Amps: 0.56
  • Fan Item: Axial Fan
  • Thermal Protection: Impedance
  • Bearings: Ball
  • Fan Height: 2-3/8"
  • Fan dBA: 30
  • Mounting Eye O.C.: 1 15/16 in
  • Item: Axial Fan
  • IP Rating: IP20
  • Motor Design: Brushless DC
  • RPM: 3800
  • Bearing Type: Ball
  • Environmental Applications: Equipment Cooling
  • Color: Black
  • Country of Origin (subject to change): China

Description

Standard Square Axial Fan, Fan Shape Square, Mounting Eye O.C. 1 15/16 in, Height 2 3/8 in, Depth 1 in, Width 2 3/8 in, CFM @ 0.000-In. SP 19.3, Watts 1.3, Voltage 24V DC, - Hz, 0.06 Amps, Electrical Connection - Fans Lead Wires, Sound Level 30, IP Rating IP20, Mounting Position Vertical or Horizontal, Bearing Type Ball, 3800 RPM, Motor Design Brushless DC, Motor Insulation Class A, Thermal Protection Impedance, Max. Ambient Temp. 158 Degrees F, Blade Material Polybutylene Terephthalate
