  9. Bath Exhaust Fan, 8In, Galvn Steel, 115 V
Shop All Residential Exhaust Fans
No Product Image Available
Dayton

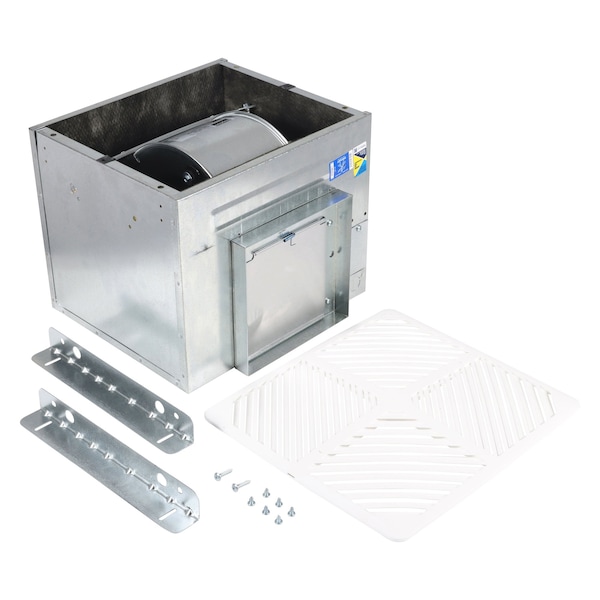

Bath Exhaust Fan, 8In, Galvn Steel, 115 V

product price: $391.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Voltage 115, 220-240 V
  • Phase 1
  • Grille Material Polystyrene
  • Profile High
  • Amps 1.34
See all product information

Product Information

Dimensions

Housing Width 11 7/8 in
Housing Length 14 in
Grille Width 13 1/2 in
Housing Height 11 1/4 in
Grille Length 15 in
Duct Dia. 8 x 8 in
Duct Height 8 in
Profile Height Family High
Duct Width 8 in
Overall Height 11 1/4 in
For Cut-Out Length 14 1/4 in
For Cut-Out Width 12 1/8 in
Overall Depth 14 in
Overall Width 11 7/8 in

Details

Item Bath Exhaust Fan
Voltage 115, 220-240 V
Phase 1
Grille Material Polystyrene
Profile High
Amps 1.34
Requires Ductwork
Hz 60 Hz
Humidity Sensing No
Number of Speeds 1
Night-Light No
Housing Material Steel
Includes Acoustic Insulation, Grille, Mounting Brackets, Aluminum Backdraft Damper
Grille Color White
Heater Without Heater
Motion Sensing No
Sones @ 0.100-In. SP @ 5 Ft. 4.5
Standards AMCA, cUL Listed, UL Listed
Watts 135 W
Lighted With Light
Nominal RPM 1350 RPM
CFM @ 0.100-In. SP 395 cfm
Discharge Horizontal or Vertical
Sensor Type None
Noise Level @ 0.125 in SP @ 5 ft 4.5 sones
Full Load Current 1.34 A
Maximum Airflow 412 cfm
Grille Finish Polystyrene
Exhaust Airflow @ 0.000 in SP 410 cfm
Mounting Orientation Horizontal
Frequency 60 Hz
Motor Insulation Class B
Exhaust Airflow @ 0.250 in SP 368 cfm
Wattage 57.2 W
Includes Light Bulbs No
Includes Grill Yes
Noise Level @ 0.000 in SP @ 5 ft 4.5 sones
Maximum Noise Level 5.5 sones
Duct Shape Rectangular
Discharge Direction Horizontal and Vertical
Noise Level @ 0.100 in SP @ 5 ft 4.5 sones
Exhaust Airflow @ 0.100 in SP 395 cfm
Blower Wheel Curve Forward
Motor Speed 1,300 RPM
Nameplate Voltage 115V AC
Housing Finish Galvanized
Vent Design Ducted
Blower Wheel Material Polypropylene
Noise Level @ 0.250 in SP @ 5 ft 4.5 sones

Description

Bath Exhaust Fan, Discharge Direction Horizontal and Vertical, Duct Shape Rectangular, Housing Finish Galvanized, Housing Material Steel, Heater Without Heater, Includes Acoustic Insulation, Grille, Mounting Brackets, Aluminum Backdraft Damper, Mounting Location Ceiling, Maximum Airflow 412 cfm, Exhaust Airflow @ 0.100 in SP 395 cfm, Exhaust Airflow @ 0.000 in SP 410 cfm, Maximum Noise Level 5.5 sones, Noise Level @ 0.100 in SP @ 5 ft 4.5 sones, Number of Speeds 1, Overall Depth 14 in

Restrictions

  • WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
  • This item has been restricted from sale in the following states: NJ
