  13. Beam Clamp, Vertical Lift, 2000 lb.
Shop All Beam & Plate Clamps
Dayton

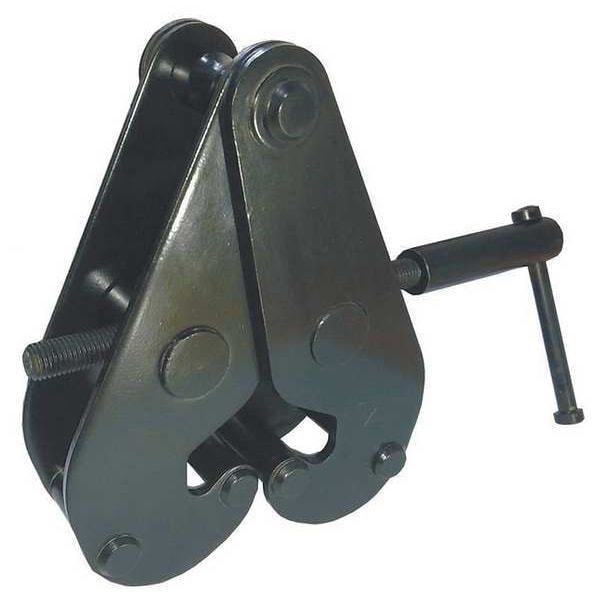

Beam Clamp, Vertical Lift, 2000 lb.

product price: $75.25
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Material Steel
  • Jaw Material Steel
  • Lifting Point Shaft
  • Standards ANSI/ASME B30.20
  • Locking Type Locking Screw
See all product information

Product Information

Dimensions

Overall Width 14 1/4 in
Overall Height 9 1/8 in
Overall Depth 2 7/8 in
Maximum Beam Width 8 5/8 in
Minimum Beam Width 3 in

Details

Item Beam Lifting Clamp
Material Steel
Jaw Material Steel
Lifting Point Shaft
Standards ANSI/ASME B30.20
Locking Type Locking Screw
Jaw Capacity 3 in to 9 in
Safe Working Load 2,000 lb
Operation Vertical Lift
Working Load Limit 2,000 lb
Maximum Jaw Opening 10 1/4 in
Maximum Beam Thickness 3/4 in
Clamp Type Beam Flange Clamp
Minimum Jaw Opening 2 1/2 in
Compatible Beam Shape Flat
Attachment Type Shaft
Beam Mount Location Top

Description

Beam Lifting Clamp, Clamp Type Beam Flange Clamp, Material Steel, Maximum Jaw Opening 10 1/4 in, Minimum Jaw Opening 2 1/2 in, Working Load Limit 2,000 lb, Attachment Type Shaft, Maximum Beam Thickness 3/4 in, Compatible Beam Shape Flat, Minimum Beam Thickness Not Applicable, Overall Height 9 1/8 in, Attachment Diameter Not Applicable, Beam Mount Location Top, Maximum Beam Width 8 5/8 in, Minimum Beam Width 3 in, Overall Depth 2 7/8 in, Overall Width 14 1/4 in, Standards ANSI/ASME B30.20
