Shop DAYTON

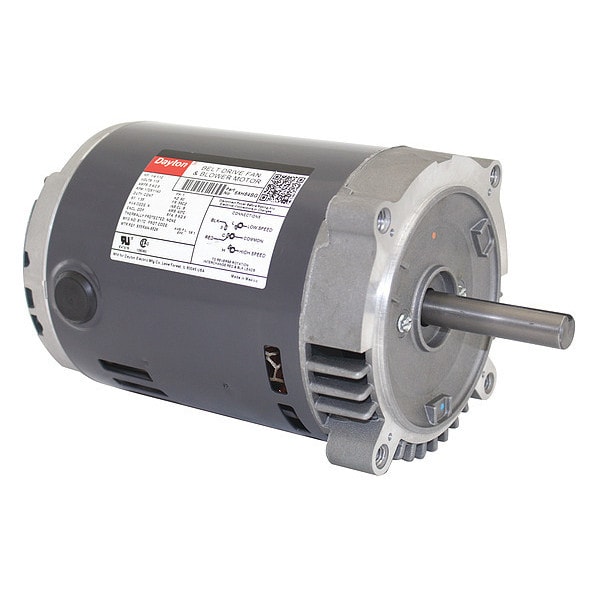

Belt Drive Mtr, SplitPh, ODP, 1/4HP, 1725rpm

  • Mfr # 6XH84BG

  • Zoro # G1234755

product price:  $297.99
/ea
Free Shipping & Returns

Key Features

Motor Shaft Rotation
CW/CCW
Motor Frame Material
Rolled Steel
Shaft Dia.
5/8 in
Standards
CSA Certified, UL Recognized
Motor Mounting Type
Face
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
6XH84BG
Zoro #
G1234755
UPC #
190735373293
Country of Origin
Mexico

Dimensions

Shaft Dia.
5/8 in
Length Less Shaft
1701-1800
Manufacturers Warranty Length
1 yr
Shaft Length
2 7/16 in
Frame Size
56CZ
Shaft Diameter
5/8 in

Details

Motor Shaft Rotation
CW/CCW
Motor Frame Material
Rolled Steel
Standards
CSA Certified, UL Recognized
Motor Mounting Type
Face
Voltage
115V AC
Frame Material
Steel
Motor Mounting Position
All Angle
Item
Belt Drive Motor
Duty
Continuous
Motor Thermal Protection
None
Motor Shaft Design
Keyed
Max. Ambient Temp.
104 Degrees F
Motor Service Factor
1.35
No. of Speeds
2
Motor Design
Split-Phase
Motor Enclosure Design
Open Dripproof
Hz
60 Hz
Nameplate RPM
1,725/1,140
Motor Sub Application
Belt Drive Fan/Blower
Motor Bearings
Ball
Motor Application
HVAC/R
HP
1/4, 1/12
Footnotes
45
Frame
56CZ
RPM Range
1,701-1,800
Ins. Class
B
Full Load Amps
5.4/2.8 A
Phase
Single
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Duty Cycle
Continuous
Manufacturers Warranty
1 yr
Shaft Design
Keyed
Drive Type
Belt Drive
Frequency
60 Hz
Motor Enclosure Type
Open Drip Proof
Product Type
Fan and Blower Motor
Mounting Position
All Angle
Nameplate Service Factor @ 60 Hz
1.35
Application
Fan/Blower
Bearing Type
Ball
Ambient Temperature - Maximum
40 Degrees C
Full Load Current @ 60 Hz
5.4/2.8 A
Insulation Class
B

Description

Fan and Blower Motor, Single Phase, Motor Design Split-Phase, 1/12 hp, 1/4 hp HP, Nameplate RPM 1,725/1,140 RPM, No. of Speeds 2, Voltage 115V AC, 5.4/2.8 A Full Load Amps, 56CZ Frame, 60 Hz Hz, Motor Service Factor 1.35, Motor Thermal Protection None, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type C-Face, Motor Frame Material Steel, Motor Mounting Position All Angle
