Dayton

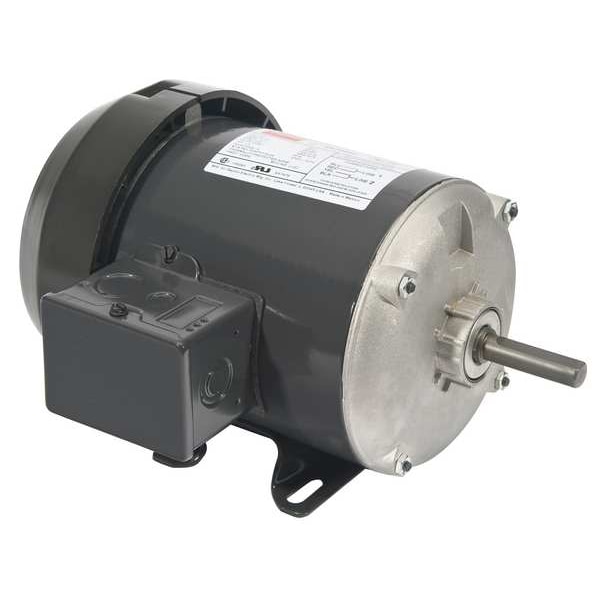

GP Mtr, Split Ph, TEFC, 1/4 HP, 1725 rpm, 48Z

product price: $184.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • HP 1/4
  • Frame 48Z
  • Voltage Compatibility 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
  • Motor Design Split-Phase
  • Duty Continuous
See all product information

Product Information

Dimensions

Length Less Shaft 8 11/16 in
Overall Length 10 5/8 in
Manufacturers Warranty Length 1 yr
Shaft Length 1 7/8 in
Shaft Dia. 1/2 in

Details

HP 1/4
Frame 48Z
Voltage Compatibility 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Motor Design Split-Phase
Duty Continuous
Voltage 115V AC
Motor Enclosure Design Totally Enclosed Fan-Cooled
Hz 60 Hz
Ins. Class B
No. of Speeds 1
RPM Range 1,701-1,800
Motor Thermal Protection None
Standards CSA (156060), UL (E47479)
RPM Group 1701-1800
Motor Shaft Rotation CW/CCW
Motor Frame Material Rolled Steel
Phase Single
Motor Efficiency Group Standard Efficient
Item General Purpose Motor
Max. Ambient Temp. 104 Degrees F
Motor Service Factor 1
Nominal Efficiency 55.2 %
Nameplate RPM 1,725
Frame Material Rolled steel
Motor Mounting Type Rigid Base
Motor Application General Application
Motor Bearings Ball
Includes Conduit Box
Full Load Amps 4.9 A
Motor Shaft Design Flat
Duty Cycle Continuous

Description

General Purpose Motor, Single Phase, Motor Design Split-Phase, 1/4 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115V AC, Full Load Amps 4.9 A, 48Z Frame, Hz 60 Hz, Motor Service Factor 1, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Shaft Design Flat, Motor Frame Material Rolled Steel
