  9. Blower, 1 Phase, Direct Drive, Steel 1 Speed

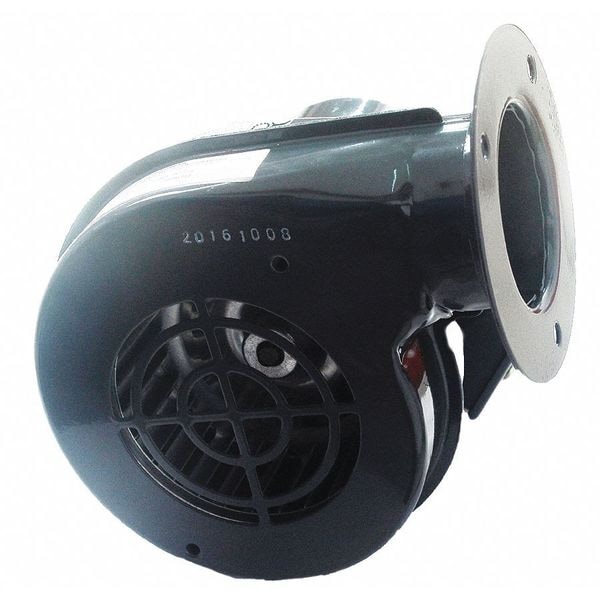

Dayton Blower, 1 Phase, Direct Drive, Steel 1 Speed 42NL22 - main

Blower, 1 Phase, Direct Drive, Steel 1 Speed

  • Mfr # 42NL22

  • Zoro # G4549761

product price: $79.99
/ea
Free Shipping & Returns

Key Features

Drive Type
Direct Drive
Housing Material
Steel
Number of Speeds
1
Overall Height
5 3/4 in
Overall Width
7 1/16 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
42NL22
Zoro #
G4549761
UPC #
190735298893
Country of Origin
Taiwan, Province of China

Dimensions

Overall Height
5 3/4 in
Overall Width
7 1/16 in
Overall Depth
6 3/8 in
Housing Width
2 3/16 in
Inlet Diameter
3 1/8 in
Wheel Diameter
3 7/8 in
Outlet Diameter
2 1/8 in
Housing Height
5 3/4 in
Flange Size
4 1/32 Dia.
Wheel Width
1 7/8 in
Manufacturer Warranty Length
1 yr
Housing Depth
6 3/8 in
Shaft Diameter
8 mm

Details

Drive Type
Direct Drive
Housing Material
Steel
Number of Speeds
1
Phase
1
Agency Compliance
CE and RoHS Compliance, cULus Recognized (E47479) for the Motor Only Not the Blower
Item
Blower
Housing Color
Gray
Bearing Type
Ball
Wheel Type
Forward-Curved
Motor Enclosure
Open Air-Over
Number of Inlets
1
Standards
CE and RoHS Compliance, cULus Recognized (E47479) for the Motor Only Not the Blower
Includes Motor
Yes
Assembly
Assembled
Minimum Ambient Temperature
14 Degrees F
For Ventilation Type
Exhaust, Make-Up, Return, Supply
Electrical Connection
Wire Leads
OEM Replacement
No
For High-Static Pressure Applications
No
Airflow @ 0.125 in SP
73 cfm
Airflow @ 0.750 in SP
48 cfm
Corrosion Resistant
Yes
Airflow @ 0.375 in SP
66 cfm
Motor Horsepower
1/70 hp
Compatible Speed Control
No
Chemical Resistant
No
Brake Horsepower
Not Rated
Airflow @ 0.000 in SP
75 cfm
Application
Air Conditioners, Air Cooling, Component Cooling, Cooling, Drying, General Heating, Machine Cooling, Space Ventilation, Ventilating
Hazardous Location Application
No
Sound Level
Not Rated
Motor Insulation Class
B
Motor Duty Class
Continuous
Wheel Material
Aluminum
Market
Commercial, Industrial, Residential
Housing Material Grade
SPCC
Housing Material Gauge
0.8 mm
Motor IP Rating
IP20
Spark Resistant Construction Type
Not Rated
Features
multi-blade forwardly centrifugal blower wheel
Maximum Static Pressure
1 in wc
Frequency
50/60 Hz
Airflow @ 1.000 in SP
0 cfm
Nameplate Voltage
115V
Maximum Ambient Temperature
104 Degrees F
Airflow @ 0.100 in SP
74 cfm
Flange Type
Flanged
Rotation
CW
Airflow @ 0.400 in SP
63 cfm
Maximum Fan Speed
3,020 RPM
Product Type
centrifugal type
AMCA Fan Class
Not Rated
Airflow @ 0.500 in SP
62 cfm
Airflow @ 0.250 in SP
68 cfm
Motor Frame Designation
3.3" PSC motor
High-Efficiency Motor
No
Discharge Position
Bottom Horizontal, Down Blast, Top Horizontal, Up Blast
For Location
Indoor
Minimum Fan Speed
0 RPM
Maximum Inlet Air Temperature
104 Degrees F
Includes Mounting Hardware
No
Number of Discharge Positions
4
Outlet Shape
Round
Current
0.45 A
For Air Type
air cleaning, ventilation, air circulation, air discharging, air suction, heating, cooling
Wheel Material Finish
Aluminum Plated
Replacement For
Nil
Mounting Orientation
Multiposition
Motor Type
Permanent Split Capacitor
Motor Speed
3,020 RPM
Speed Controllable
No
Thermal Overload Protection
Yes

Description

Blower, Wheel Type Forward-Curved, Drive Type Direct Drive, Includes Drive Package Not Applicable, Assembly Assembled, Wheel Diameter 3 7/8 in, Airflow @ 0.000 in SP 75 cfm, Airflow @ 0.100 in SP 74 cfm, Airflow @ 0.125 in SP 73 cfm, Airflow @ 0.250 in SP 68 cfm, Airflow @ 0.375 in SP 66 cfm, Airflow @ 0.400 in SP 63 cfm, Airflow @ 0.500 in SP 62 cfm, Airflow @ 0.750 in SP 48 cfm, Airflow @ 1.000 in SP 0 cfm, Airflow @ 1.250 in SP Not Applicable, Airflow @ 1.500 in SP Not Applicable
