  9. Blower, 9-1/2 In, 115 V, 1395 CFM at 0.600-In

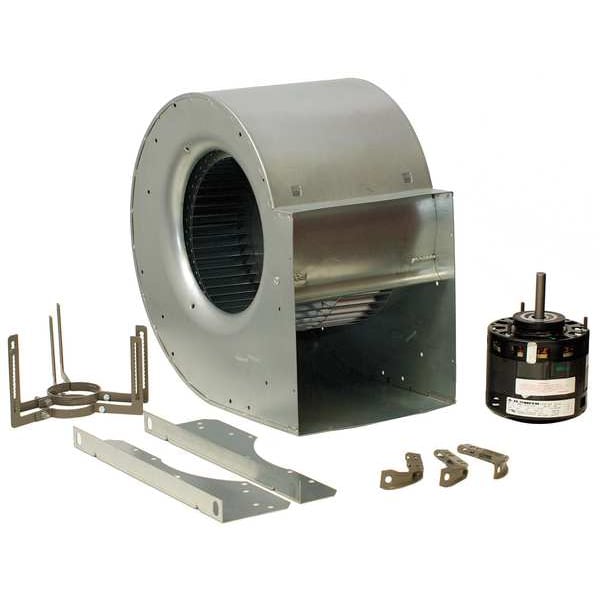

Dayton Blower, 9-1/2 In, 115 V, 1395 CFM at 0.600-In 7HL57 - main

Blower, 9-1/2 In, 115 V, 1395 CFM at 0.600-In

  • Mfr # 7HL57

  • Zoro # G0531815

product price: $384.99
/ea
Free Shipping & Returns

Key Features

Type
Double Inlet Forward Curve
Discharge Height (In.)
10 1/4 in
Motor RPM
1075
Max. Inlet Temp. (Deg. F)
104 Degrees F
Footnotes
# Motor Overload Condition
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
7HL57
Zoro #
G0531815
UPC #
00190735347959
Country of Origin
China

Dimensions

Discharge Height (In.)
10 1/4 in
Wheel Width (In.)
9 1/4 in
Housing Height (In.)
15 9/16 in
Discharge Width (In.)
11 7/8 in
Housing Width (In.)
11 7/8 in
Housing Depth (In.)
14 15/16 in
Wheel Dia.
9 1/2 in
Housing Width
11 7/8 in
Housing Height
15 1/2 in
Inlet Diameter
7 13/16 in
Wheel Diameter
9 1/2 in
Outlet Width
11 7/8 in
Outlet Height
10 1/4 in
Wheel Width
9 1/4 in
Housing Depth
14 15/16 in
Manufacturer Warranty Length
1 yr Limited

Details

Item
Blower with Motor
Type
Double Inlet Forward Curve
Motor RPM
1075
Max. Inlet Temp. (Deg. F)
104 Degrees F
Footnotes
# Motor Overload Condition
CFM @ 1.200-In. SP
- - --
CFM @ 0.400-In. SP
# # # #
Mounting
Multipostion
CFM @ 0.800-In. SP
# 1345 1235 1135
Housing Material
Steel
Motor Enclosure
Open Air-Over
Blower RPM
1,075 RPM
Housing Finish
None
CFM Range
1395 to 875 @ 0.6-In SP to 1.1-In SP
CFM @ 1.70-In. SP
- - --
Speed Controllable
No
CFM @ 1.000-In. SP
1290 - - -
Includes
Hardware, Housing Support
Hz
60
Motor HP
1/2 hp
Bearing Type
Sleeve
Full Load Amps
6.3
Drive Type
Direct Drive
CFM @ 0.700-In. SP
# 1410 1300 1200
CFM @ 1.600-In. SP
- - - -
Assembled/Unassembled
Unassembled
Speed
4
CFM @ 0.600-In. SP
# # 1395 1280
Max. Ambient Temp. (F)
104 Degrees F
Wheel Material
Steel
Phase
1
CFM @ 1.10-In. SP
875 - - -
Motor Type
Permanent Split Capacitor
Voltage
115
CFM @ 1.30-In. SP
- - --
CFM @ 0.500-In. SP
# # # #
CFM @ 0.000-In. SP
# # # #
CFM @ 1.40-In. SP
- - - -
CFM @ 0.300-In. SP
# # # #
CFM @ 1.500-In. SP
- - --
CFM @ 1.250-In. SP
- - - -
CFM @ 0.900-In. SP
1460 - - -
Standards
CSA Certified, UL Listed
Application
Air Conditioning, Heating, Ventilation Systems
Features
Includes Housing Support with Resilient Pads to Help Minimize Vibration, Adjustable Motor Mounting Bracket with Hardware, and Assembly Instructions, The Included Mounting Bracket Adjusts to Fit Blower Motors 3-1/2 in to 6-1/8 in L, Unit Can Replace Most Direct-Drive Blowers with the Same Horsepower Ratings and is Suitable for Use in New and Replacement Installations, Blower Wheel Reinforced to Ensure Optimal Performance and Trouble-Free Service, this Dayton Blower with Motor Has a Discharge That can be Rotated in Four 90 Degrees Increments
Flange Type
Non-Flanged
Wheel Type
Forward-Curved
Outlet Shape
Rectangular
Maximum Fan Speed
1,075 RPM
Includes Motor
Yes
High-Efficiency Motor
Yes
Housing Material Finish
Galvanized
Maximum Ambient Temperature
104 Degrees F
Maximum Static Pressure
1 in wc
Frequency
60 Hz
Motor Speed
1,075 RPM
Motor Duty Class
Continuous
Includes Mounting Hardware
Yes
Motor Frame Designation
42Y
Current
7.1 A
Assembly
Unassembled
Nameplate Voltage
115V AC
Number of Speeds
4
Number of Discharge Positions
4
Motor Horsepower
1/2 hp
Maximum Inlet Air Temperature
104 Degrees F
Number of Inlets
2
Airflow @ 1.000 in SP
1,290 cfm
Includes Drive Package
Yes
Resistance Properties
Corrosion Resistant
Mount Type
Multiposition
Corrosion Resistant
Yes
Motor Insulation Class
B
OEM Replacement
No

Description

Blower with Motor, Wheel Type Forward-Curved, Drive Type Direct Drive, Includes Drive Package Yes, Assembly Unassembled, Wheel Diameter 9 1/2 in, Airflow @ 0.000 in SP Not Applicable, Airflow @ 0.100 in SP Not Applicable, Airflow @ 0.125 in SP Not Applicable, Airflow @ 0.250 in SP Not Applicable, Airflow @ 0.375 in SP Not Applicable, Airflow @ 0.400 in SP Not Applicable, Airflow @ 0.500 in SP Not Applicable, Airflow @ 1.000 in SP 1,290 cfm, Airflow @ 1.250 in SP Not Applicable
