Shop DAYTON

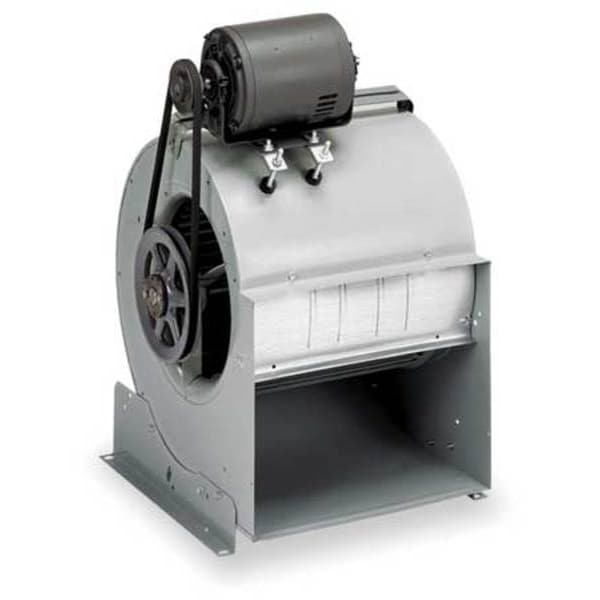

Blower, 9 1/2 In

  • Mfr # 7D609

  • Zoro # G0545571

product price:
$
539.99
/ea
Free Shipping & Returns

Key Features

Wheel Width (In.)
9 1/2 in
Max. Inlet Temp. (Deg. F)
150 Degrees F
Voltage
208-230/460
Phase
3
Motor HP
1/4 hp
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
7D609
Zoro #
G0545571
UPC #
-
Country of Origin
Multiple

Dimensions

Wheel Width (In.)
9 1/2 in
Housing Width (In.)
11 13/16 in
Wheel Dia.
9 1/2 in
Discharge Height
6 5/16 in
Housing Height (In.)
16 15/16 in
Discharge Width
11 13/16 in
Housing Depth (In.)
14 15/16 in
Wheel Width
9 1/2 in
Housing Width
11 3/4 in
Inlet Diameter
7 1/2 in
Outlet Height
6 5/16 in
Housing Height
16 15/16 in
Manufacturer Warranty Length
1 yr Limited
Wheel Diameter
9 1/2 in
Outlet Width
11 13/16 in
Housing Depth
14 15/16 in

Details

Max. Inlet Temp. (Deg. F)
150 Degrees F
Voltage
208-230/460
Phase
3
Motor HP
1/4 hp
Motor Enclosure
Totally Enclosed Nonventilated
Wheel Material
Steel
Assembled/Unassembled
Unassembled
Item
Blower with Motor and Drive Package
Speed Controllable
No
CFM Range
1645 to 968 @ 0.125-in SP to 0.375-in SP
Motor Type
3-Phase
Bearing Type
Ball
Type
Double Inlet Forward Curve
Blower RPM
700 RPM
Full Load Amps
1.2-1.2/0.60 A
Max. Ambient Temp. (F)
104 Degrees F
Mounting
Multiposition
Includes
Isolation Grommet, Mounting Hardware
Hz
60 Hz
CFM @ 0.250-In. SP
1426
Housing Finish
Gray
Motor RPM
1,725 RPM
Housing Material
Steel
CFM @ 0.125-In. SP
1645
Drive Type
Belt Drive
Footnotes
# Motor Overload Condition
CFM @ 0.375-In. SP
968
Speed
1
Wheel Type
Forward-Curved
Number of Inlets
2
Maximum Static Pressure
3/8 in wc
Housing Color
Gray
Motor Speed
1,725 RPM
Includes Mounting Hardware
Yes
Current
1.1/0.5 A
Outlet Shape
Rectangular
Motor Duty Class
Continuous
Airflow @ 0.250 in SP
1,550 cfm
Airflow @ 0.375 in SP
1,340 cfm
Mount Type
Multiposition
Motor Insulation Class
F
Maximum Inlet Air Temperature
150 Degrees F
Motor Frame Designation
143-5T/56HZ
Maximum Fan Speed
700 RPM
Maximum Ambient Temperature
104 Degrees F
Housing Material Finish
Gray
Flange Type
Non-Flanged
High-Efficiency Motor
Yes
Motor Horsepower
1/4 hp
Includes Drive Package
Yes
Airflow @ 0.125 in SP
1,690 cfm
Number of Speeds
1
Frequency
60 Hz
Nameplate Voltage
208-230/460V AC
Includes Motor
Yes
Assembly
Unassembled
Standards
CSA Certified, UL Listed
OEM Replacement
No

Description

Blower with Motor and Drive Package, Wheel Type Forward-Curved, Drive Type Belt Drive, Includes Drive Package Yes, Assembly Unassembled, Wheel Diameter 9 1/2 in, Airflow @ 0.000 in SP Not Applicable, Airflow @ 0.100 in SP Not Applicable, Airflow @ 0.125 in SP 1,690 cfm, Airflow @ 0.250 in SP 1,550 cfm, Airflow @ 0.375 in SP 1,340 cfm, Airflow @ 0.400 in SP Not Applicable, Airflow @ 0.500 in SP Not Applicable, Airflow @ 0.750 in SP Not Applicable, Airflow @ 1.000 in SP Not Applicable
