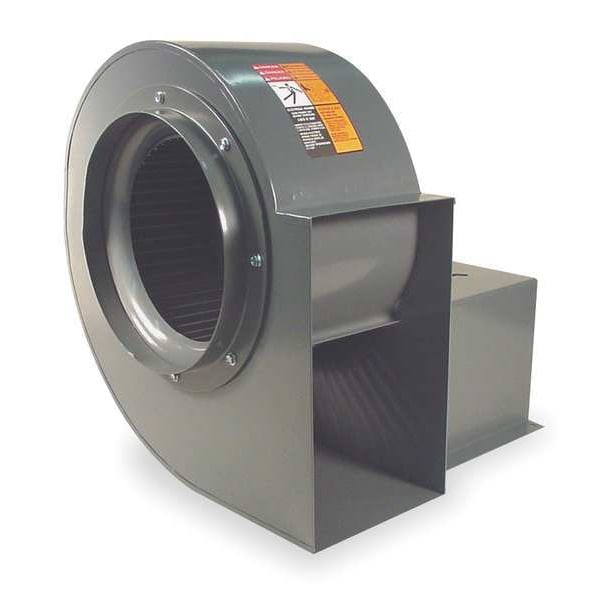

Dayton Blower, Duct, 9 In 4C118 - main

Blower, Duct, 9 In

  • Mfr # 4C118

  • Zoro # G1874896

product price: $581.99
/ea
Free Shipping & Returns

Key Features

Type
Less Motor
Depth (In.)
15 in
Wheel Bore (In.)
7/8 in
Outlet Width (In.)
6 1/2 in
Housing Material
Steel
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
4C118
Zoro #
G1874896
UPC #
-
Country of Origin
Canada

Dimensions

Depth (In.)
15 in
Outlet Width (In.)
6 1/2 in
Wheel Width (In.)
4 1/2 in
Outlet Height (In.)
10 3/4 in
Height (In.)
18 in
Width (In.)
16 in
Inlet Dia. (In.)
9 in
Wheel Dia. (In.)
9 in
Overall Height
18 in
Overall Width
16 in
Outlet Width
6 1/2 in
Manufacturer Warranty Length
1 yr Limited
Inlet Diameter
9 in
Outlet Height
10 3/4 in
Overall Depth
15 in
Wheel Bore Diameter
7/8 in
Wheel Diameter
9 in
Wheel Width
4 1/2 in

Details

Item
Blower
Type
Less Motor
Wheel Bore (In.)
7/8 in
Housing Material
Steel
Rotation
CW
Max. Ambient Temp. (F)
104 Degrees F
Housing Finish
Gray Polyester Epoxy
Wheel Material
Steel
Max. Inlet Temp. (Deg. F)
180 Degrees F
Includes
Dynamically Balanced Wheel, Housing, Motor Base
Drive Type
Direct Drive
Application
Cooling, Drying, Exhausting Foul Air, Forced Air Furnaces
Features
Blower Has an Rotating Discharge and Provides High Volume Ventilation When Duct Systems are Required, Combines the Characteristics of High Volume and High Pressure Blowers, Great for Medium Pressures, Motor Packed Separately
Standards
NEC, OSHA
Includes Motor
No
Housing Material Gauge
16 ga
Maximum Inlet Air Temperature
180 Degrees F
Housing Material Finish
Gray Polyester Epoxy
Number of Discharge Positions
8
Number of Inlets
1
Housing Color
Gray
Wheel Type
Forward-Curved
Maximum Motor Speed
1,725 RPM
Maximum Airflow
1,390 cfm
Discharge Position
Bottom Angular Down, Bottom Angular Up, Bottom Horizontal, Down Blast, Top Angular Down, Top Angular Up, Top Horizontal, Up Blast
Mount Type
Motor Mount
Assembly
Unassembled
Minimum Airflow
1,050 cfm
Maximum Motor Horsepower
1 hp
Maximum Static Pressure
2 in wc
Maximum Ambient Temperature
104 Degrees F
For Ventilation Type
Exhaust
Flange Type
Non-Flanged
Outlet Shape
Rectangular

Description

Blower, Wheel Type Forward-Curved, Drive Type Direct Drive, Assembly Unassembled, Wheel Diameter 9 in, Minimum Airflow 1,050 cfm, Maximum Airflow 1,390 cfm, Maximum Static Pressure 2 in wc, Maximum Inlet Air Temperature 180 Degrees F, Wheel Material Steel, Housing Material Steel, Wheel Width 4 1/2 in, Number of Inlets 1, Inlet Diameter 9 in, Outlet Shape Rectangular, Outlet Height 10 3/4 in, Outlet Width 6 1/2 in, Outlet Diameter Not Applicable, Flange Type Non-Flanged

Restrictions

This item has been restricted from sale in the following states: CA
