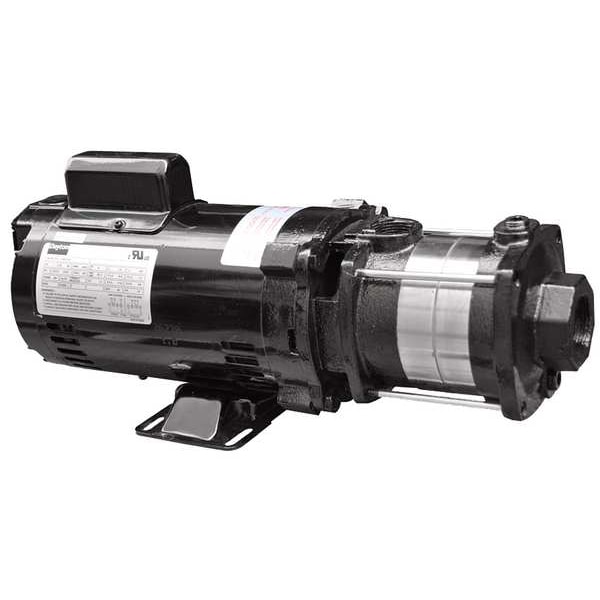

Booster Pump, 1/3 hp, 120/240V AC, 1 Phase, 3/4 in NPT Inlet Size, 3 Stage, 58 psi Max Pressure

  • Mfr # 5UXF3

  • Zoro # G1418837

product price:
$
564.99
/ea
Free Shipping & Returns

Key Features

Booster Pump Type
Multi-Stage Booster Pump
HP - Pumps
1/3 hp
Voltage - Pumps
120/240V AC
Phase - Pumps
1
Inlet Size - Pumps
3/4 in NPT
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5UXF3
Zoro #
G1418837
UPC #
190735353028
Country of Origin
India

Dimensions

Inlet Size - Pumps
3/4 in NPT
Outlet Size - Pumps
3/4 in NPT
Manufacturers Warranty Length
1 yr
Length
16.44 in
Max. Dia. Solids
5/64 in
Height
6 5/16 in
Width
6 1/2 in
Overall Height
6.31 in
Overall Width
6.5 in
Overall Length
16.44 in
Compatible Discharge Pipe Size
3/4 in
Solid Diameter (Maximum)
0.07 in
Compatible Intake Pipe Size
3/4 in
Intake Size
3/4 in
Manufacturer Warranty Length
1 yr
Inlet Diameter
3/4 in
Solids Diameter - Maximum
0.07 in
Wire Rope Length
16.44 in

Details

Booster Pump Type
Multi-Stage Booster Pump
Item
Booster Pump
HP - Pumps
1/3 hp
Voltage - Pumps
120/240V AC
Phase - Pumps
1
Number of Stages - Pumps
3
Max. Pressure - Pumps
58 psi
Housing Material - Pumps
Cast Iron
Motor Enclosure - Pumps
Open Dripproof
Seal Material
Buna-N/Carbon/Ceramic/Stainless Steel
Bearing Type
Ball
Impeller Type
Closed
Includes
Manual
GPM @ 40 PSI
12
Max. Liquid Temp.
194 Degrees F
Phase
Single
GPM @ 10 PSI
20
Hz
60
HP
1/3
Best Efficiency GPM @ PSI
12 @ 41
GPM @ 20 PSI
18
Motor Type
Capacitor-Start
Suction Lift
5 ft with a Foot Valve
Stages
3
Max. Pressure
58 psi
Motor Enclosure
Open Dripproof (ODP)
Max. Case Pressure
150 psi
Pump Mounting Position
Horizontal or Vertical with Inlet Down
Amps
7.5/3.8 A
Impeller Material
Cast Iron
Inlet
3/4" FNPT
Motor RPM
3,450 RPM
Motor Ambient Temp. Rating
40 Degrees C
Housing Material
Cast iron
Wetted Materials
Buna N, Carbon/Ceramic, Cast Iron, Stainless Steel
Frame
56J
Agency Compliance
c UL us
Duty
Continuous
Outlet
3/4" FNPT
Voltage
115/230
Standards
cULus Listed
Flow Rate @ 20 psi
18 gpm
Intake Type
NPT
Pumping Application
City Water Mains, Cooling Water Systems, Irrigation
Case Pressure (Maximum)
150 psi
Priming
Manual
Flow Rate @ 10 psi
20 gpm
Compatible with Media Type
Non-Flammable Liquids, Water
Impeller Design
Closed
Motor Ambient Temperature (Minimum)
40 Degrees F
Duty Cycle
Continuous
Number of Stages
3
Mounting Orientation
Horizontal
Nameplate Voltage
115/230V AC
Flow Rate @ 50 psi
6.7 gpm
Wetted Material
Buna-N, Carbon, Cast Iron, Ceramic, Stainless Steel
Pump Housing Material
Cast Iron
Shut Off Pressure (Maximum)
58 psi
Best Efficiency Pressure
41 psi
Maximum Media Temperature
194 Degrees F
Flow Rate @ 30 psi
15.4 gpm
Suction Lift (Maximum)
5 ft
Motor Ambient Temperature (Maximum)
104 Degrees F
Flow Rate @ 40 psi
12 gpm
Horsepower
1/3 hp
Motor Frame Designation
56J NEMA
For Use With Potable Systems
No
Discharge Type
NPT
Frequency
60 Hz
Maximum RPM
3,450 RPM
Full Load Current
7.5/3.8 A
Suction Lift - Maximum
5 ft
Inlet Gender
Female
Pump Casing Material
Cast Iron
Discharge Standard
NPT
Inlet Standard
NPT
Motor Ambient Temperature - Minimum
40 Degrees F
Shut Off Pressure - Maximum
58 psi
Installation
Floor Standing
Revolutions Per Minute - Maximum
3,450 RPM
Media Temperature - Maximum
194 Degrees F
Motor Ambient Temperature - Maximum
104 Degrees F
Case Pressure - Maximum
150 psi
Best Efficiency Flow
10 gpm
Motor Design
Capacitor-Start
Motor Enclosure Design
Open Drip Proof
Media Temperature - Minimum
0 Degrees F
Power Source
Corded Electric
Power Source - TS Only
Corded Electric
Power Source - old
Corded Electric

Description

Booster Pump, Phase Single, Pump Housing Material Cast Iron, Motor Enclosure Open Dripproof, Horsepower 1/3 hp, Nameplate Voltage 115/230V AC, Flow Rate @ 10 psi 20 gpm, Flow Rate @ 20 psi 18 gpm, Flow Rate @ 30 psi 15.4 gpm, Flow Rate @ 40 psi 12 gpm, Flow Rate @ 50 psi 6.7 gpm, Shut Off Pressure (Maximum) 58 psi, Compatible Intake Pipe Size 3/4 in, Compatible Discharge Pipe Size 3/4 in, Intake Type NPT, Mounting Orientation Horizontal, For Use With Potable Systems No, Amps 7.5/3.8 A
