  5. Booster Pump, 2 hp, 115/208 to 230 AC, 1 Phase, 1-1/4 in Flanged Inlet Size, 5 Stage

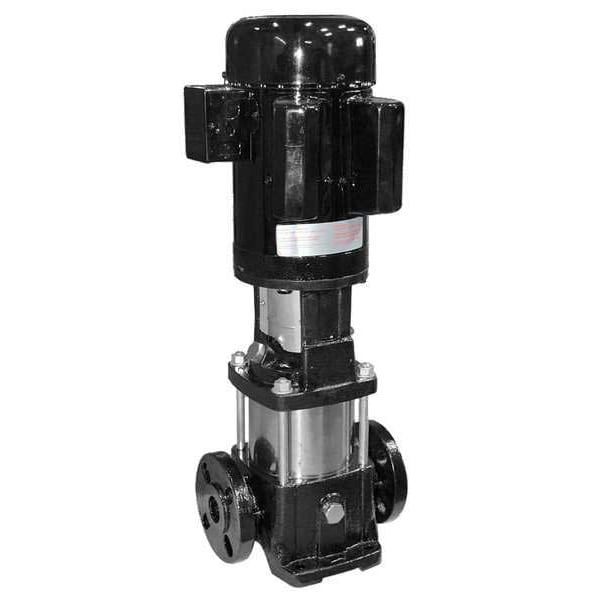

Dayton Booster Pump, 2 hp, 115/208 to 230 AC, 1 Phase, 1-1/4 in Flanged Inlet Size, 5 Stage 5UWJ5 - main

Booster Pump, 2 hp, 115/208 to 230 AC, 1 Phase, 1-1/4 in Flanged Inlet Size, 5 Stage

  • Mfr # 5UWJ5

  • Zoro # G0438173

product price:  $1,557.99
/ea
Item requires special delivery charges. A $130.00 per item surcharge will be applied.

Key Features

Booster Pump Type
Multi-Stage Booster Pump
HP - Pumps
2 hp
Voltage - Pumps
115/208 to 230 AC
Phase - Pumps
1
Inlet Size - Pumps
1-1/4 in Flanged
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
5UWJ5
Zoro #
G0438173
UPC #
190735352809
Country of Origin
India

Dimensions

Inlet Size - Pumps
1-1/4 in Flanged
Outlet Size - Pumps
1-1/4 in Flanged
Max. Dia. Solids
5/64 in
Manufacturers Warranty Length
1 yr
Length
9 7/8 in
Height
26 1/2 in
Width
8 3/4 in
Overall Height
26.5 in
Overall Length
9.88 in
Overall Width
8.75 in
Intake Size
1 1/4 in
Manufacturer Warranty Length
1 yr
Compatible Discharge Pipe Size
1 1/4 in
Discharge Flange Size
1 1/4 in
Compatible Intake Pipe Size
1 1/4 in
Solid Diameter (Maximum)
0.07 in
Solids Diameter - Maximum
0.07 in
Discharge Diameter
1 1/4 in
Inlet Diameter
1 1/4 in

Details

Booster Pump Type
Multi-Stage Booster Pump
Item
Booster Pump
HP - Pumps
2 hp
Voltage - Pumps
115/208 to 230 AC
Phase - Pumps
1
Number of Stages - Pumps
5
Max. Pressure - Pumps
70 psi
Housing Material - Pumps
Cast Iron
Motor Enclosure - Pumps
Totally Enclosed Fan-Cooled
Max. Pressure
70 psi
Phase
Single
Pump Mounting Position
Horizontal
Motor Enclosure
Totally Enclosed Fan Cooled (TEFC)
Motor Ambient Temp. Rating
40 Degrees C
Max. Case Pressure
245 psi
Frame
56c
Duty
Continuous
Impeller Material
Stainless Steel
Max. Liquid Temp.
248 Degrees F
Includes
Manual
Housing Material
Cast iron
Agency Compliance
c UL us
Motor Type
Capacitor-Start/Run
Stages
5
Wetted Materials
Cast Iron, EPDM, Silicon Carbide, Stainless Steel
Bearing Type
Ball
Voltage
115/208-230
Outlet
1-1/4" FNPT
Best Efficiency GPM @ PSI
30 @ 50
Seal Material
EPDM/Silicon Carbide/Stainless Steel
Hz
60
Impeller Type
Closed
Inlet
1-1/4" FNPT
GPM @ 60 PSI
14
HP
2
GPM @ 40 PSI
35
Motor RPM
3,450 RPM
Amps
16.6/9.4-8.3 A
Standards
cULus Listed
Discharge Type
Flange
Motor Frame Designation
56C
Maximum RPM
3,450 RPM
Best Efficiency Pressure
50 psi
Flow Rate @ 60 psi
14 gpm
Mounting Orientation
Vertical
Horsepower
2 hp
Compatible with Media Type
Non-Abrasive Liquids, Water
Flow Rate @ 50 psi
25 gpm
Shut Off Pressure (Maximum)
70 psi
Motor Ambient Temperature (Maximum)
104 Degrees F
Wetted Material
Cast Iron, EPDM, Silicon Carbide, Stainless Steel
Nameplate Voltage
115/230V AC
Pump Housing Material
Cast Iron
For Use With Potable Systems
No
Number of Stages
5
Flow Rate @ 40 psi
35 gpm
Maximum Media Temperature
248 Degrees F
Intake Type
Flange
Pumping Application
City Water Mains, Cooling Water Systems, Irrigation
Case Pressure (Maximum)
245 psi
Duty Cycle
Continuous
Impeller Design
Closed
Frequency
60 Hz
Motor Ambient Temperature (Minimum)
40 Degrees F
Best Efficiency Flow
26 gpm
Installation
Floor Standing
Media Temperature - Maximum
248 Degrees F
Motor Ambient Temperature - Maximum
104 Degrees F
Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Design
Capacitor-Start/Run
Shut Off Pressure - Maximum
70 psi
Discharge Standard
Flange
Case Pressure - Maximum
245 psi
Inlet Gender
Female
Full Load Current
16.6/9.4-8.3 A
Pump Casing Material
Cast Iron
Motor Ambient Temperature - Minimum
40 Degrees F
Revolutions Per Minute - Maximum
3,450 RPM
Media Temperature - Minimum
0 Degrees F
Inlet Standard
Flange
Power Source
Corded Electric

Description

Booster Pump, Phase Single, Pump Housing Material Cast Iron, Motor Enclosure Totally Enclosed Fan Cooled, Horsepower 2 hp, Nameplate Voltage 115/230V AC, Flow Rate @ 40 psi 35 gpm, Flow Rate @ 50 psi 25 gpm, Flow Rate @ 60 psi 14 gpm, Shut Off Pressure (Maximum) 70 psi, Compatible Intake Pipe Size 1 1/4 in, Compatible Discharge Pipe Size 1 1/4 in, Intake Type Flange, Mounting Orientation Vertical, For Use With Potable Systems No, Amps 16.6/9.4-8.3 A, Best Efficiency Pressure 50 psi

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
This is a restricted item in the USA. It cannot be used for potable water applications.
