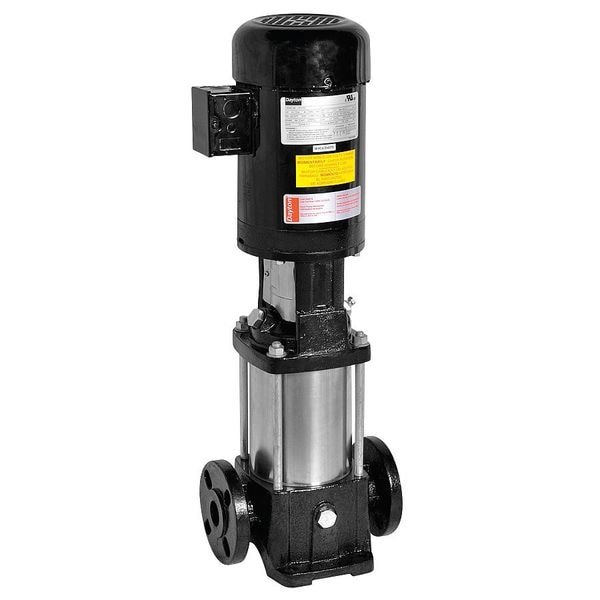

Dayton Booster Pump, 2 hp, 208 to 240/480V AC, 3 Phase, 1-1/4 in Flanged Inlet Size, 11 Stage 5UWJ9 - main

Booster Pump, 2 hp, 208 to 240/480V AC, 3 Phase, 1-1/4 in Flanged Inlet Size, 11 Stage

  • Mfr # 5UWJ9

  • Zoro # G0349431

product price:  $1,599.99
/ea
Free Shipping & Returns

Key Features

Booster Pump Type
Multi-Stage Booster Pump
HP - Pumps
2 hp
Voltage - Pumps
208 to 240/480V AC
Phase - Pumps
3
Inlet Size - Pumps
1-1/4 in Flanged
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
5UWJ9
Zoro #
G0349431
UPC #
190735352847
Country of Origin
India

Dimensions

Inlet Size - Pumps
1-1/4 in Flanged
Outlet Size - Pumps
1-1/4 in Flanged
Width
8 3/4 in
Height
28 1/2 in
Max. Dia. Solids
5/64 in
Length
9 7/8 in
Manufacturers Warranty Length
1 yr
Overall Length
9.88 in
Overall Width
8.75 in
Overall Height
28.5 in
Intake Size
1 1/4 in
Solid Diameter (Maximum)
0.07 in
Discharge Flange Size
1 1/4 in
Manufacturer Warranty Length
1 yr
Compatible Intake Pipe Size
1 1/4 in
Compatible Discharge Pipe Size
1 1/4 in
Solids Diameter - Maximum
0.07 in
Discharge Diameter
1 1/4 in
Inlet Diameter
1 1/4 in

Details

Booster Pump Type
Multi-Stage Booster Pump
Item
Booster Pump
HP - Pumps
2 hp
Voltage - Pumps
208 to 240/480V AC
Phase - Pumps
3
Number of Stages - Pumps
11
Max. Pressure - Pumps
148 psi
Housing Material - Pumps
Cast Iron
Motor Enclosure - Pumps
Totally Enclosed Fan-Cooled
Seal Material
EPDM/Silicon Carbide/Stainless Steel
Pump Mounting Position
Horizontal
Agency Compliance
c UL us
Wetted Materials
Cast Iron, EPDM, Silicon Carbide, Stainless Steel
GPM @ 120 PSI
12
Motor Ambient Temp. Rating
40 Degrees C
Stages
11
Inlet
1-1/4" FNPT
Impeller Type
Closed
Best Efficiency GPM @ PSI
16 @ 104
Outlet
1-1/4" FNPT
Motor Type
3-Phase
Suction Lift
0 ft
Max. Pressure
148 psi
GPM @ 100 PSI
16
GPM @ 60 PSI
22
Voltage
208-230/460
Housing Material
Cast iron
GPM @ 80 PSI
19
Bearing Type
Ball
Motor Enclosure
Totally Enclosed Fan Cooled (TEFC)
Impeller Material
Stainless Steel
HP
2
Max. Case Pressure
245 psi
Max. Liquid Temp.
248 Degrees F
Frame
56c
Hz
60
Includes
Manual
Motor RPM
3,450 RPM
Duty
Continuous
Phase
Three
GPM @ 140 PSI
4
Amps
5.6/2.8 A
Standards
cULus Listed
Wetted Material
Cast Iron, EPDM, Silicon Carbide, Stainless Steel
Duty Cycle
Continuous
Flow Rate @ 120 psi
12 gpm
Flow Rate @ 80 psi
19 gpm
Flow Rate @ 70 psi
21.5 gpm
Suction Lift (Maximum)
0 ft
Flow Rate @ 140 psi
4 gpm
Maximum Media Temperature
248 Degrees F
Flow Rate @ 100 psi
16 gpm
Maximum RPM
3,450 RPM
Case Pressure (Maximum)
245 psi
Intake Type
Flange
Frequency
60 Hz
Motor Ambient Temperature (Minimum)
40 Degrees F
Impeller Design
Closed
Motor Ambient Temperature (Maximum)
104 Degrees F
Discharge Type
Flange
Motor Frame Designation
56C
Flow Rate @ 90 psi
17.5 gpm
Shut Off Pressure (Maximum)
148 psi
Compatible with Media Type
Non-Abrasive Liquids, Water
Pumping Application
City Water Mains, Cooling Water Systems, Irrigation
Pump Housing Material
Cast Iron
Number of Stages
11
Nameplate Voltage
230/460V AC
Mounting Orientation
Horizontal
Horsepower
2 hp
Flow Rate @ 60 psi
22 gpm
Best Efficiency Pressure
104 psi
For Use With Potable Systems
No
Shut Off Pressure - Maximum
148 psi
Revolutions Per Minute - Maximum
3,450 RPM
Discharge Standard
Flange
Motor Ambient Temperature - Minimum
40 Degrees F
Motor Ambient Temperature - Maximum
104 Degrees F
Full Load Current
5.6/2.8 A
Motor Design
Three-Phase
Case Pressure - Maximum
245 psi
Suction Lift - Maximum
0 ft
Media Temperature - Minimum
0 Degrees F
Pump Casing Material
Cast Iron
Best Efficiency Flow
14 gpm
Media Temperature - Maximum
248 Degrees F
Motor Enclosure Design
Totally Enclosed Fan Cooled
Inlet Standard
Flange
Power Source
Corded Electric
Installation
Floor Standing
Inlet Gender
Female
Flow Rate - Maximum
22 gpm
Feet of Head - Maximum
341 ft

Description

Booster Pump, Phase Three, Pump Housing Material Cast Iron, Motor Enclosure Totally Enclosed Fan Cooled, Horsepower 2 hp, Nameplate Voltage 230/460V AC, Flow Rate @ 60 psi 22 gpm, Flow Rate @ 70 psi 21.5 gpm, Flow Rate @ 80 psi 19 gpm, Flow Rate @ 90 psi 17.5 gpm, Flow Rate @ 100 psi 16 gpm, Flow Rate @ 120 psi 12 gpm, Shut Off Pressure (Maximum) 148 psi, Compatible Intake Pipe Size 1 1/4 in, Compatible Discharge Pipe Size 1 1/4 in, Intake Type Flange, Mounting Orientation Horizontal

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
This is a restricted item in the USA. It cannot be used for potable water applications.
