  5. Booster Pump, 3 hp, 240V AC, 1 Phase, 1-1/4 in Flanged Inlet Size, 9 Stage, 127 psi Max Pressure

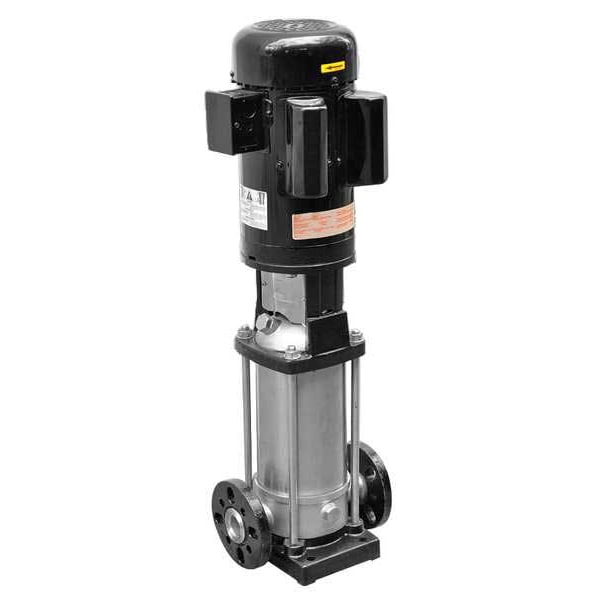

Dayton Booster Pump, 3 hp, 240V AC, 1 Phase, 1-1/4 in Flanged Inlet Size, 9 Stage, 127 psi Max Pressure 5UWL2 - main

Booster Pump, 3 hp, 240V AC, 1 Phase, 1-1/4 in Flanged Inlet Size, 9 Stage, 127 psi Max Pressure

  • Mfr # 5UWL2

  • Zoro # G0779642

product price:  $2,009.99
/ea
Free Shipping & Returns

Key Features

Booster Pump Type
Multi-Stage Booster Pump
HP - Pumps
3 hp
Voltage - Pumps
240V AC
Phase - Pumps
1
Inlet Size - Pumps
1-1/4 in Flanged
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5UWL2
Zoro #
G0779642
UPC #
190735352977
Country of Origin
India

Dimensions

Inlet Size - Pumps
1-1/4 in Flanged
Outlet Size - Pumps
1-1/4 in Flanged
Manufacturers Warranty Length
1 yr
Length
9 7/8 in
Width
8 1/4 in
Max. Dia. Solids
5/64 in
Height
31 15/16 in
Overall Length
9.88 in
Overall Height
31.94 in
Overall Width
8.25 in
Discharge Flange Size
1 1/4 in
Compatible Intake Pipe Size
1 1/4 in
Solid Diameter (Maximum)
0.07 in
Intake Size
1 1/4 in
Manufacturer Warranty Length
1 yr
Compatible Discharge Pipe Size
1 1/4 in
Inlet Diameter
1 1/4 in
Solids Diameter - Maximum
0.07 in
Discharge Diameter
1 1/4 in

Details

Booster Pump Type
Multi-Stage Booster Pump
Item
Booster Pump
HP - Pumps
3 hp
Voltage - Pumps
240V AC
Phase - Pumps
1
Number of Stages - Pumps
9
Max. Pressure - Pumps
127 psi
Housing Material - Pumps
Stainless Steel
Motor Enclosure - Pumps
Totally Enclosed Fan-Cooled
GPM @ 100 PSI
25
GPM @ 120 PSI
9
HP
3
Motor Ambient Temp. Rating
40
Motor RPM
3,450 RPM
Suction Lift
0 ft
Motor Enclosure
Totally Enclosed Fan Cooled (TEFC)
GPM @ 40 PSI
42
Max. Liquid Temp.
362 psi
Amps
12.5 A
Best Efficiency GPM @ PSI
30 @ 93
Impeller Type
Closed
GPM @ 80 PSI
Stainless Steel
Voltage
230
Motor Type
Capacitor-Start/Run
Duty
Continuous
Inlet
1-1/4" FNPT
Wetted Materials
EPDM, Silicon Carbide, Stainless Steel
Phase
Single
Seal Material
EPDM/Silicon Carbide/Stainless Steel
Includes
Manual
GPM @ 10 PSI
54
Stages
9
Hz
60
Agency Compliance
c UL us
Max. Pressure
127 psi
Pump Mounting Position
Horizontal
Housing Material
Stainless steel
Bearing Type
Ball
Frame
56c
Impeller Material
Stainless Steel
GPM @ 60 PSI
35
Max. Case Pressure
245 psi
Outlet
1-1/4" FNPT
Standards
cULus Listed
Flow Rate @ 100 psi
25 gpm
Mounting Orientation
Vertical
Discharge Type
Flange
Motor Frame Designation
56C
Duty Cycle
Continuous
Suction Lift (Maximum)
0 ft
Case Pressure (Maximum)
245 psi
Pumping Application
City Water Mains, Cooling Water Systems, Irrigation
Horsepower
3 hp
Shut Off Pressure (Maximum)
127 psi
Frequency
60 Hz
Maximum RPM
3,450 RPM
For Use With Potable Systems
No
Compatible with Media Type
Non-Abrasive Liquids, Water
Impeller Design
Closed
Flow Rate @ 60 psi
42 gpm
Flow Rate @ 70 psi
38.5 gpm
Nameplate Voltage
230V AC
Best Efficiency Pressure
93 psi
Intake Type
Flange
Number of Stages
9
Pump Housing Material
Stainless Steel
Motor Ambient Temperature (Maximum)
104 Degrees F
Flow Rate @ 90 psi
30 gpm
Maximum Media Temperature
362 Degrees F
Wetted Material
EPDM, Silicon Carbide, Stainless Steel
Flow Rate @ 80 psi
35 gpm
Motor Ambient Temperature (Minimum)
40 Degrees F
Flow Rate @ 120 psi
9 gpm
Inlet Gender
Female
Best Efficiency Flow
29 gpm
Suction Lift - Maximum
0 ft
Motor Ambient Temperature - Minimum
40 Degrees F
Motor Ambient Temperature - Maximum
104 Degrees F
Media Temperature - Maximum
362 Degrees F
Installation
Floor Standing
Inlet Standard
Flange
Motor Design
Capacitor-Start/Run
Media Temperature - Minimum
0 Degrees F
Full Load Current
12.5 A
Pump Casing Material
Stainless Steel
Revolutions Per Minute - Maximum
3,450 RPM
Case Pressure - Maximum
245 psi
Shut Off Pressure - Maximum
127 psi
Discharge Standard
Flange
Motor Enclosure Design
Totally Enclosed Fan Cooled
Power Source
Corded Electric

Description

Booster Pump, Phase Single, Pump Housing Material Stainless Steel, Motor Enclosure Totally Enclosed Fan Cooled, Horsepower 3 hp, Nameplate Voltage 230V AC, Flow Rate @ 10 psi Not Applicable, Flow Rate @ 60 psi 42 gpm, Flow Rate @ 70 psi 38.5 gpm, Flow Rate @ 80 psi 35 gpm, Flow Rate @ 90 psi 30 gpm, Flow Rate @ 100 psi 25 gpm, Flow Rate @ 120 psi 9 gpm, Shut Off Pressure (Maximum) 127 psi, Compatible Intake Pipe Size 1 1/4 in, Compatible Discharge Pipe Size 1 1/4 in, Intake Type Flange

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
This is a restricted item in the USA. It cannot be used for potable water applications.
