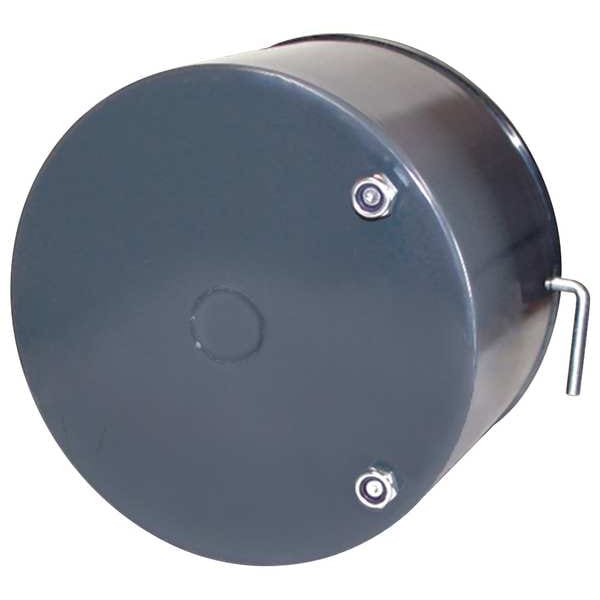

Dayton Brake, End Mount, Torque 15 Ft-Lb 5URA3 - main

Brake, End Mount, Torque 15 Ft-Lb

  • Mfr # 5URA3

  • Zoro # G1944975

product price: $683.99
/ea
Free Shipping & Returns

Key Features

Type
End Mount Disc
Shaft Dia. (In.)
7/8 in
Length (In.)
4 in
Coil Volts
115-208/230V AC or 95/174-190V AC
Static Torque (Ft.-Lb.)
15
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5URA3
Zoro #
G1944975
UPC #
190735352083
Country of Origin
United States

Dimensions

Shaft Dia. (In.)
7/8 in
Length (In.)
4 in
Keyseat Size (In.)
3/16 x 3/32
Power Lead Length (In.)
18
Dia. (In.)
6 1/2 in
Outside Diameter
6.5 in
Overall Length
4 in
Shaft Diameter
5/8 in
Keyway Depth
3/32 in
Keyway Width
3/16 in

Details

Item
Brake
Type
End Mount Disc
Coil Volts
115-208/230V AC or 95/174-190V AC
Static Torque (Ft.-Lb.)
15
NEMA/IEC Frame
143/145TC
Enclosure
Dripproof
Max. RPM
3,600 RPM
Mounts On
143/145TC Motor Flange
Lever Type
Manual Release
Ambient (C)
40 Degrees C
Function
Stops And Holds A Motor Shaft From Rotating
Inrush Amps
11.5/5.8
Series
5603 Style
Voltage @ 50 Hz
95/174-190
Max. Bore (In.)
7/8 in
Service Factor
1.4
Includes
Brake and Instruction Manual
Max. HP @ 3450 RPM
5 hp
Duty
Continuous
Finish
Red Primer
Application
Brake Attaches to the Accessory End of a Motor to Stop and Hold the Motor Shaft
Converts
Motor to a Brake Motor
Max. HP @ 1725 RPM
3 hp
Hz
60/50
Phase
Single
Amps Holding
0.5/0.3
Agency Compliance
CSA, ROHS Compliant
Voltage @ 60 Hz
115/208-230
Brake Mouting Position
Horizontal
Standards
CSA Certified, ROHS Compliant
Horsepower @ RPM
1 hp @ 3450 RPM, 1/2 hp @ 1725 RPM
Clutch/Brake Type
End Mount Disc
Static Torque
15 ft-lb
Enclosure Type
Dripproof
Housing Material Finish
Red Primer
Maximum Speed
3,600 RPM
Mounting Orientation
Horizontal
Lever Release
Manual
Operating Voltage
115/208-230V AC
Holding Current
0.3/0.2 A
Continuous Duty
Yes
Inrush Current
6.7/3.4 A
Coil Voltage
115/208-230V AC
Frequency
50 Hz, 60 Hz
Maximum Ambient Temperature
40 Degrees C

Description

Brake, Clutch/Brake Type End Mount Disc, Coil Voltage 115/208-230V AC, Operating Voltage 115/208-230V AC, Enclosure Type Dripproof, Static Torque 15 ft-lb, Horsepower @ RPM 1 hp @ 3450 RPM, 1/2 hp @ 1725 RPM, Shaft Diameter 5/8 in, Maximum Speed 3,600 RPM, Mounting Location 56C Motor Flange, Includes Brake and Instruction Manual, Continuous Duty Yes, Outside Diameter 6.5 in, Overall Length 4 in, Overall Width Not Applicable, Phase Single, Service Factor 1.4
