  11. Brake, Magnetic Disc, 3.0313 in, 115V AC

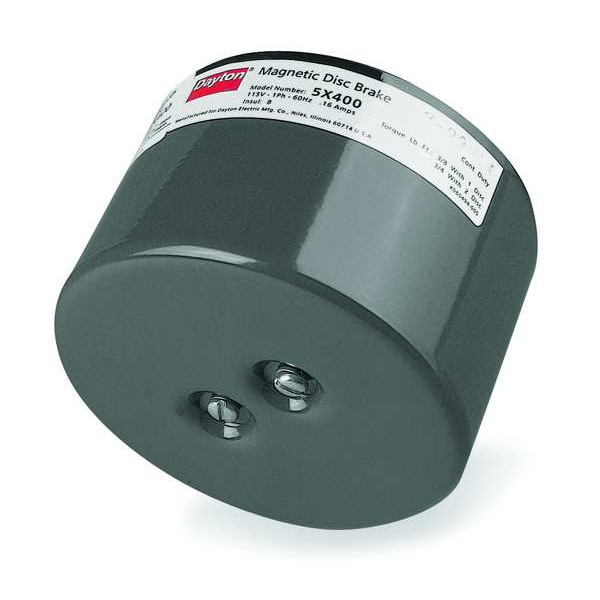

Dayton Brake, Magnetic Disc, 3.0313 in, 115V AC 5X400 - main

Brake, Magnetic Disc, 3.0313 in, 115V AC

  • Mfr # 5X400

  • Zoro # G1161693

product price: $213.99
/ea
Free Shipping & Returns

Key Features

Type
Magnetic Disc
Length (In.)
3.0313 in
Coil Volts
115V AC
Static Torque (Ft.-Lb.)
0.375 ft-lb, 0.75 ft-lb
Max. RPM
2320
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5X400
Zoro #
G1161693
UPC #
190735355039
Country of Origin
United States

Dimensions

Length (In.)
3.0313 in
Power Lead Length (In.)
15
Dia. (In.)
4 1/16 in
Overall Length
4 in
Outside Diameter
4.06 in
Shaft Diameter
5/8 in
Keyway Width
3/16 in
Keyway Depth
3/32 in

Details

Item
Brake
Type
Magnetic Disc
Coil Volts
115V AC
Static Torque (Ft.-Lb.)
0.375 ft-lb, 0.75 ft-lb
Max. RPM
2320
Function
Provide 3/4 Ft-Lb Stopping and Holding Action on 1/14 to 1/4 HP Shaded Pole, Splitphase and PSC Gearmotors
Agency Compliance
CSA
Max. HP @ 3450 RPM
1/2 hp
Hz
60
Features
One Disc can Easily be Removed to Reduce Torque to 3/8 ft-lb
Application
Brake Attaches to the Accessory End of a Motor to Stop and Hold the Motor Shaft
Service Factor
1.4
Converts
Motor to a Brake Motor
Max. HP @ 1725 RPM
1/6 hp
Ambient (C)
40 Degrees C
Brake Mouting Position
Horizontal
Duty
Continuous
Voltage @ 60 Hz
115
Includes
Brake and Instruction Manual
Phase
Single
Mounts On
Shaft Extension of Gearmotors by Using Brake Hub and Mounting Bolts
Standards
CSA Certified, ROHS Compliant
Operating Voltage
115V AC
Holding Current
0.3/0.2 A
Coil Voltage
115 V AC
Inrush Current
6.7/3.4 A
Lever Release
Manual
Continuous Duty
Yes
Horsepower @ RPM
1/2 hp @ 3600 RPM, 1/4 hp @ 1800 RPM
Clutch/Brake Type
End Mount Disc
Static Torque
0.75 lb-ft
Frequency
50 Hz, 60 Hz
Maximum Speed
3,600 RPM
Housing Material Finish
Red Primer
Mounting Orientation
Horizontal
Maximum Ambient Temperature
40 Degrees C
Enclosure Type
Dripproof

Description

Magnetic Disc Brake, Clutch/Brake Type End Mount Disc, Coil Voltage 115 V AC, Operating Voltage 115V AC, Enclosure Type Dripproof, Static Torque 0.75 lb-ft, Horsepower @ RPM 1/2 hp @ 3600 RPM, 1/4 hp @ 1800 RPM, Shaft Diameter 5/8 in, Maximum Speed 3,600 RPM, Mounting Location 56C Motor Flange, For Use With -, Includes Brake and Instruction Manual, Continuous Duty Yes, Outside Diameter 4.06 in, Overall Length 4 in, Phase Single, Service Factor 1.4, Standards CSA Certified, ROHS Compliant
