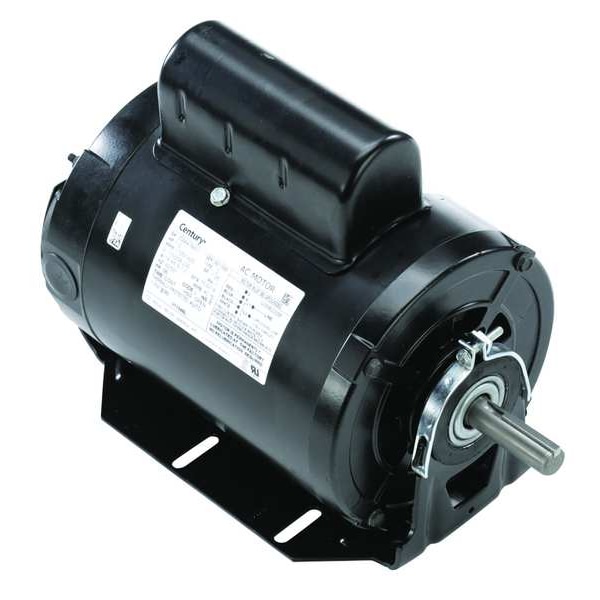

Evaporative Cooler Motor, 1 hp

  • Mfr # V1104BL
  • Zoro # G1969256
product price:
$
394.99
/ea
Free Shipping & Returns

Key Features

Voltage
115V AC, 208V AC to 230V AC
Motor Enclosure Design
Open
RPM Range
1,701-1,800
HP
1
Full Load Amps
14.4/7.2-6.6 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
V1104BL
Zoro #
G1969256
UPC #
-
Country of Origin
Mexico

Dimensions

Overall Length
11 13/16 in
Shaft Dia.
5/8 in
Ring Dia.
2 1/2 in
Length Less Shaft
9 15/16 in
Resilient Ring Dia.
2 1/2 in
Shaft Length
1 7/8 in
Body Dia.
6 1/2 in
Shaft Diameter
5/8 in
Body Diameter
6.5 in
Frame Size
56
Resilient Ring Diameter
2 1/2 in
Wire Rope Length
11 13/16 in
Length
11 13/16 in

Details

Item
Evaporative Cooler Motor
Voltage
115V AC, 208V AC to 230V AC
Motor Enclosure Design
Open
RPM Range
1,701-1,800
HP
1
Full Load Amps
14.4/7.2-6.6 A
Phase
Single
Motor Thermal Protection
Auto
Motor Design
Capacitor-Start
Hz
60 Hz
No. of Speeds
1
Frame
56
Motor Application
HVAC/R
Nameplate RPM
1,725
Max. Ambient Temp.
40 Degrees C
Motor Shaft Rotation
CW/CCW
Motor Service Factor
1.25
Ins. Class
B
Ambient Temperature
40 Degrees C
Motor Bearings
Ball
Motor Sub Application
Evaporator Cooler
Motor Mounting Type
Cradle Base
Voltage Compatibility
115V AC, 200V AC to 230V AC, 115V AC, 208V AC to 230V AC, 115V AC, 208V AC to 230V AC
Standards
CSA
Ring to Ring Center
9 13/16 in
Output Watts
750 W
Motor Frame Material
Steel
Motor Mounting Position
All Angle
Features
Auto protector, Brass Current Carrying, Continuous Filtration of Oil, Electro Zin Encapsulating Varnish, Heavy Magnet Wire Insulation, Single and Two Speed
Usable @ 208V
Usable at 208V
Weight
32 lb
Duty Cycle
Continuous
Usable @ 200V
Not Usable at 200V
Capacitor Required
Capacitor Included
Stud Quantity
4
Motor Shaft Design
Keyed
Conduit Box Location
Exterior
Conduit Box Position
F3
RPM @ 50Hz
1425 RPM
Number of Speeds
1
Product Type
Evaporative Cooler Motor
Drive Type
Direct Drive
Full Load Current @ 60 Hz
14.4/7.2-6.6 A
Wattage
750 W
Ambient Temperature - Maximum
40 Degrees C
Shaft Design
Keyed
Nameplate Service Factor @ 60 Hz
1.25
Sub Application
Evaporative Cooler
Frame Material
Steel
Motor Enclosure Type
Open
Frequency
60 Hz
Insulation Class
B
Efficiency Rating
Standard Efficiency (IE1)
Application
Evaporative Cooler
Nameplate RPM @ 50 Hz
1,425 RPM

Description

Evaporative Cooler Motor, Single Phase, Motor Design Capacitor-Start, 1 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/208-230V AC, 14.4/7.2-6.6 A Full Load Amps, 56 Frame, Output Watts 750 W, 60 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1.25, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open, Motor Mounting Type Cradle Base
