  9. Brass 1/8 HP Centrifugal Pump 12V

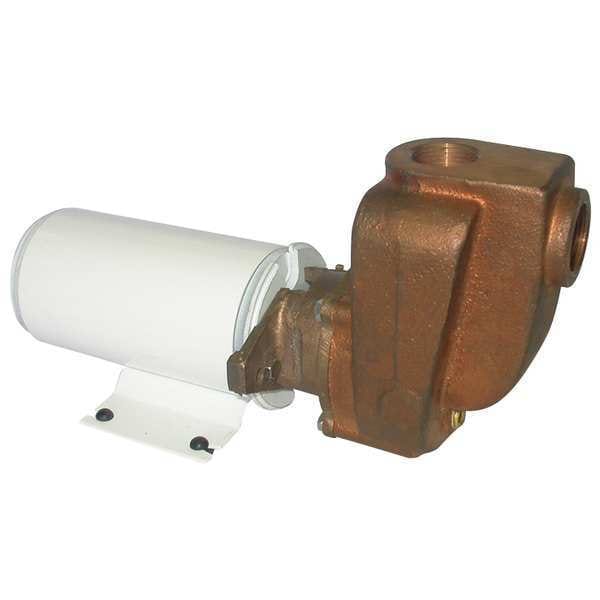

Dayton Brass 1/8 HP Centrifugal Pump 12V 5PXX5 - main

Brass 1/8 HP Centrifugal Pump 12V

  • Mfr # 5PXX5

  • Zoro # G2363137

product price: $437.99
/ea
Free Shipping & Returns

Key Features

HP - Pumps
1/8 hp
Voltage - Pumps
12V DC
Housing Material - Pumps
Brass
Inlet Size - Pumps
3/4 in NPT
Outlet Size - Pumps
3/4 in NPT
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5PXX5
Zoro #
G2363137
UPC #
190735350232
Country of Origin
China

Dimensions

Inlet Size - Pumps
3/4 in NPT
Outlet Size - Pumps
3/4 in NPT
Manufacturers Warranty Length
1 yr
Length
9 3/8 in
Max. Dia. Solids
1/8 in
Width
4 in
Height
5 in
Overall Length
9.3 in
Overall Height
5 in
Overall Width
4 in
Compatible Intake Pipe Size
3/4 in
Compatible Discharge Pipe Size
3/4 in
Solid Diameter (Maximum)
0.13 in

Details

HP - Pumps
1/8 hp
Voltage - Pumps
12V DC
Housing Material - Pumps
Brass
Max. Pressure - Pumps
6 psi
Max. Head
14 ft
Item
Marine Centrifugal Pump
Max. Liquid Temp.
180 Degrees F
Inlet
3/4" NPT
Inlet Pressure
5.9 psi
Max. GPM @ Head
19 @ 0 ft
GPM of Water @ 10 Ft. of Head
8
Outlet
3/4" NPT
Max. Specific Gravity
1
GPM @ 7 Feet of Head
11.8
Max. Pressure
6.1 psi
Impeller Type
Semi Open
Motor Type
DC
Motor Enclosure
Totally Enclosed
GPH of Water @ 5 Ft. of Head
840
Max. Case Pressure
200 psi
HP
1/8
Includes
Manual
Voltage
12VDC
Item - Straight Centrifugal Pumps
Straight Centrifugal High Flow Pump
GPM @ 1 Ft. of Head
18
Bearing Type
Ball
GPM of Water @ 5 Ft. of Head
14
Wetted Materials
Brass, Buna N, Carbon, Ceramic, Stainless Steel, Viton
Best Efficiency Range GPM @ Head
8 to 19 gpm @ 10 to 2 ft
Housing Material
Brass
Best Efficiency GPM @ Head
14 gpm @ 5 ft
Port Rotation
90 Degrees Increments
Duty
Intermittent
Impeller Material
Brass
Seal Material
Carbon, Ceramic, Viton
Motor RPM
5000
GPM of Water @ 0 Ft. of Head
19
Amps
10.5
Min. GPM @ Head
8 @ 10 ft
Shaft Material
430 Stainless Steel
Wetted Material
Brass, Buna-N, Carbon, Ceramic, Stainless Steel, Viton
Motor Ambient Temperature (Maximum)
104 Degrees F
Pump Housing Material
Brass
Flow Rate @ 1 ft of Head (Maximum)
18 gpm
Duty Cycle
Intermittent
Shut Off Pressure (Maximum)
6 psi
Maximum Feet of Head
14 ft
Flow Rate @ 10 ft of Head (Maximum)
8 gpm
Minimum Media Temperature
40 Degrees F
Impeller Design
Semi-Open
Horsepower
1/8 hp
Discharge Type
NPT
Maximum Flow Rate
19 gpm
Best Efficiency Flow
14 gpm
Flow Rate @ 5 ft of Head (Maximum)
14 gpm
Maximum Media Temperature
180 Degrees F
Specific Gravity (Maximum)
1
Best Efficiency Head
5 ft
Seal Type
Mechanical
Suction Lift (Maximum)
4.5 ft
Discharge Rotation
90 Degrees Increments
Nameplate Voltage
12V DC
Intake Type
NPT
Maximum RPM
5,000 RPM
Volute Material
Brass

Description

Marine Centrifugal Pump, Pump Housing Material Brass, Horsepower 1/8 hp, Nameplate Voltage 12V DC, Maximum Feet of Head 14 ft, Compatible Intake Pipe Size 3/4 in, Intake Type NPT, Compatible Discharge Pipe Size 3/4 in, Discharge Type NPT, Motor Enclosure Totally Enclosed, Maximum Flow Rate 19 gpm, Flow Rate @ 5 ft of Head (Maximum) 14 gpm, Flow Rate @ 10 ft of Head (Maximum) 8 gpm, Suction Lift (Maximum) 4.5 ft, Seal Material Carbon, Ceramic, Viton, Best Efficiency Head 5 ft
