Shop ZOELLER

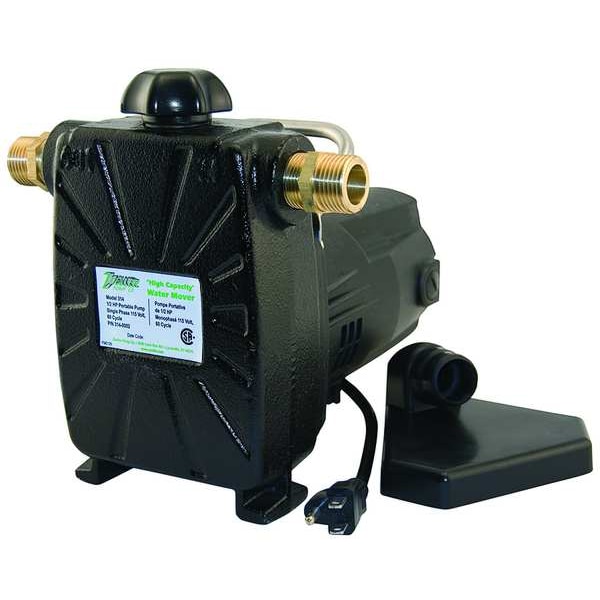

Utility Transfer Pump, 1/2 HP, 1 Ph, 115V

  • Mfr # 314-0002

  • Zoro # G0448795

product price:  $385.99
/ea
Free Shipping & Returns

Key Features

Inlet
3/4 in NPT
Outlet
3/4 in NPT
Wetted Materials
Brass, Cast Iron, Plastic
HP
1/2 hp
Voltage
115
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
314-0002
Zoro #
G0448795
UPC #
053514245849
Country of Origin
Taiwan, Province of China

Dimensions

Height
8 in
Length
11 in
Manufacturers Warranty Length
1 yr
Width
5 1/2 in
Cord Length
20 ft
Overall Height
8 in
Overall Width
5.5 in
Overall Length
11 in
Manufacturer Warranty Length
1 yr
Compatible Discharge Pipe Size
3/4 in
Compatible Intake Pipe Size
3/4 in
Discharge Flange Size
3/4 in
Intake Size
3/4 in
Inlet Diameter
3/4 in
Solid Diameter (Maximum)
0 in
Discharge Diameter
3/4 in

Details

Item
Utility Pump
Inlet
3/4 in NPT
Outlet
3/4 in NPT
Wetted Materials
Brass, Cast Iron, Plastic
HP
1/2 hp
Voltage
115
Volute Material
Cast Iron
Seal Material
Carbon, Ceramic
Best Efficiency Range GPM @ Head
14 to 17.50 gpm @ 50 to 70 ft
Suction Lift
15 ft
Max. Head
115 ft
Housing Material
Cast iron
Bearing Type
Ball
Inlet Pressure
50 psi
GPM of Water @ 30 Ft. of Head
20
GPH of Water @ 30 PSI
800
Max. Specific Gravity
1.0
GPM of Water @ 15 Ft. of Head
22
GPM of Water @ 10 Ft. of Head
22.5
Agency Compliance
CSA
GPH of Water @ 20 PSI
1,100
GPM of Water @ 60 Ft. of Head
16
Impeller Material
Thermoplastic
Duty
Intermittent
GPM of Water @ 50 Ft. of Head
17
GPM of Water @ 20 Ft. of Head
21.5
GPM of Water @ 1 Ft. of Head
23.5
GPM of Water @ 40 Ft. of Head
18
GPH of Water @ 25 PSI
950
Includes
3/4 in NPT Brass, Lead Free Garden Hose Adapters, Suction Screen and Extra Set of Brushes
Hz
60
GPH of Water @ 5 PSI
1,300
GPM of Water @ 5 Ft. of Head
23
Phase
Single
GPH of Water @ 10 PSI
1,275
Motor Type
AC
Max. Liquid Temp.
120 Degrees F
GPM of Water @ 70 Ft. of Head
13
GPH of Water @ 15 PSI
1,150
GPM of Water @ 90 Ft. of Head
7
Max. Pressure
50 PSI
GPM of Water @ 80 Ft. of Head
11
Amps
8.0 A
GPM of Water @ 35 Ft. of Head
19
GPH of Water @ 40 PSI
300
Motor Enclosure
Totally Enclosed Air-Over
GPH of Water @ 35 PSI
650
GPM of Water @ 25 Ft. of Head
21
Impeller Type
Open
Features
Handle on Prime Plug Allows for Easy Priming, Permanently-Lubricated Ball Bearings
Seal Type
Mechanical Cartridge
Shaft Material
Steel
Flow Rate @ 80 ft of Head (Maximum)
6.5 gpm
Specific Gravity (Maximum)
1
Horsepower
1/2 hp
Best Efficiency Head
110 ft
Flow Rate @ 20 ft of Head (Maximum)
21.5 gpm
Maximum Feet of Head
115 ft
Flow Rate @ 5 ft of Head (Maximum)
23 gpm
Flow Rate @ 30 ft of Head (Maximum)
20 gpm
Pump Housing Material
Cast Iron
Flow Rate @ 50 ft of Head (Maximum)
17 gpm
Intake Type
NPT
Flow Rate @ 40 ft of Head (Maximum)
18 gpm
Discharge Type
NPT
Impeller Design
Open
Flow Rate @ 100 ft of Head (Maximum)
3.8 gpm
Flow Rate @ 90 ft of Head (Maximum)
7 gpm
Flow Rate @ 1 ft of Head (Maximum)
23.5 gpm
Priming
Self-Priming
Nameplate Voltage
115V AC
Minimum Media Temperature
40 Degrees F
Flow Rate @ 10 ft of Head (Maximum)
22.5 gpm
Flow Rate @ 15 ft of Head (Maximum)
22 gpm
Maximum Flow Rate
23.33 gpm
NPSHr
115.5 ft of head
Best Efficiency Flow
23 gpm
Submersible
No
Flow Rate @ 70 ft of Head (Maximum)
13 gpm
Suction Lift (Maximum)
15 ft
Standards
CSA Certified
Frequency
60 Hz
Flow Rate @ 60 ft of Head (Maximum)
16 gpm
Shut Off Pressure (Maximum)
50 psi
Duty Cycle
Intermittent
Wetted Material
Brass, Cast Iron, Plastic
Thermal Overload Protection
Yes
Inlet Orientation
Side
Chemical Compatibility
Diethylene Glycol, Water-Glycol
Feet of Head (Maximum)
110 ft
Shaft Seal Material
Carbon/Ceramic
Pumping Application
Cooling and Heat Transfer, Dewatering, Liquid Transfer
Media Temperature - Minimum
40 Degrees F
Shut Off Pressure - Maximum
47 psi
Pump Design
End Suction
Discharge Orientation
Side
Full Load Current
8.0 FLA
Flow Rate (Maximum)
23.3 gpm
Drive Coupling Type
Rigid Coupling
Flow Rate @ 10 ft of Head - Maximum
22.5 gpm
Media Temperature - Maximum
120 Degrees F
Shaft Seal Type
Mechanical
Mounting Orientation
Horizontal
Number of Stages
1
Hazardous Location Class
Not Rated
Suction Lift - Maximum
15 ft

Description

Utility Pump, Phase Single, Pump Housing Material Cast Iron, Horsepower 1/2 hp, Nameplate Voltage 115V AC, Flow Rate @ 40 ft of Head (Maximum) 18 gpm, Flow Rate @ 60 ft of Head (Maximum) 16 gpm, Flow Rate @ 80 ft of Head (Maximum) 6.5 gpm, Maximum Feet of Head 115 ft, Compatible Intake Pipe Size 3/4 in, Intake Type NPT, Compatible Discharge Pipe Size 3/4 in, Discharge Type NPT, Motor Enclosure Totally Enclosed Air-Over, Maximum Flow Rate 23.33 gpm, Flow Rate @ 5 ft of Head (Maximum) 23 gpm

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
This is a restricted item in the USA. It cannot be used for potable water applications.
