  9. Brass 1/8 HP Centrifugal Pump 36V

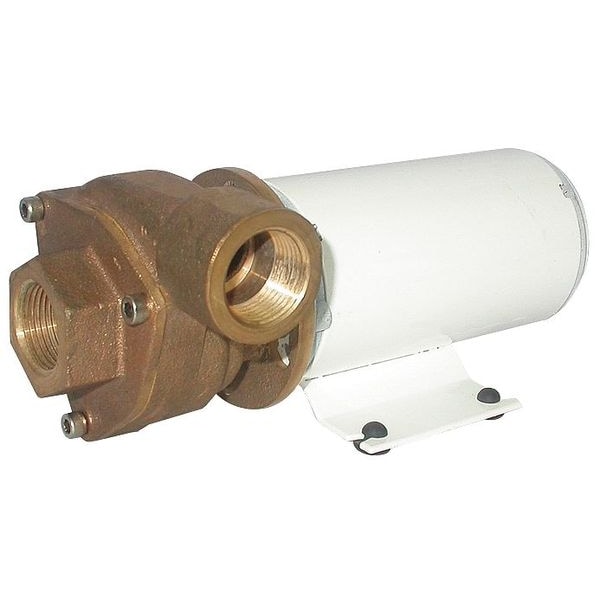

Dayton Brass 1/8 HP Centrifugal Pump 36V 5PXW9 - main

Brass 1/8 HP Centrifugal Pump 36V

  • Mfr # 5PXW9

  • Zoro # G0396776

product price: $455.99
/ea
Free Shipping & Returns

Key Features

HP - Pumps
1/8 hp
Voltage - Pumps
36V DC
Housing Material - Pumps
Brass
Inlet Size - Pumps
3/4 in NPT
Outlet Size - Pumps
3/4 in NPT
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5PXW9
Zoro #
G0396776
UPC #
190735350171
Country of Origin
China

Dimensions

Inlet Size - Pumps
3/4 in NPT
Outlet Size - Pumps
3/4 in NPT
Length
7 1/8 in
Width
4 5/16 in
Manufacturers Warranty Length
1 yr
Max. Dia. Solids
1/8 in
Height
3 3/8 in
Overall Length
7.1 in
Overall Width
4.3 in
Overall Height
3.3 in
Compatible Discharge Pipe Size
3/4 in
Solid Diameter (Maximum)
0.13 in
Compatible Intake Pipe Size
3/4 in

Details

HP - Pumps
1/8 hp
Voltage - Pumps
36V DC
Housing Material - Pumps
Brass
Max. Pressure - Pumps
10 psi
Max. Head
17 ft
Amps
3
GPM of Water @ 15 Ft. of Head
4
Housing Material
Brass
Duty
Intermittent
Inlet
3/4" NPT
Seal Material
Carbon, Ceramic, Viton
Motor Type
DC
GPM @ 7 Feet of Head
9.8
Best Efficiency Range GPM @ Head
3 to 16 gpm @ 20 to 10 ft
Outlet
3/4" NPT
Item - Straight Centrifugal Pumps
Straight Centrifugal High Flow Pump
Max. Specific Gravity
1
Max. GPM @ Head
21 @ 0 ft
Impeller Material
Brass
Wetted Materials
Brass, Buna N, Carbon, Ceramic, Stainless Steel, Viton
Max. Liquid Temp.
180 Degrees F
GPH of Water @ 5 Ft. of Head
660
Max. Pressure
9.5 psi
Motor RPM
5000
Port Rotation
180 Degree Increments
Includes
Manual
Inlet Pressure
6.5 psi
Motor Enclosure
Totally Enclosed
GPM of Water @ 20 Ft. of Head
3
Bearing Type
Ball
HP
1/8
GPM of Water @ 5 Ft. of Head
11
Min. GPM @ Head
3 @ 20 ft
Impeller Type
Semi Open
Item
Marine Centrifugal Pump
GPM @ 1 Ft. of Head
12.6
GPM of Water @ 10 Ft. of Head
8
Max. Case Pressure
200 psi
Best Efficiency GPM @ Head
11 gpm @ 15 ft
Voltage
36VDC
GPM of Water @ 0 Ft. of Head
13
Nameplate Voltage
36V DC
Discharge Rotation
180 Degrees Increments
Maximum Feet of Head
17 ft
Pumping Application
Condensate Return, Filtration, Fluid Transfer, Marine Applications and Irrigation
Best Efficiency Head
15 ft
Discharge Type
NPT
Flow Rate @ 15 ft of Head (Maximum)
4 gpm
Impeller Design
Semi-Open
Flow Rate @ 5 ft of Head (Maximum)
11 gpm
Best Efficiency Flow
11 gpm
Duty Cycle
Intermittent
Pump Housing Material
Brass
Motor Ambient Temperature (Maximum)
104 Degrees F
Flow Rate @ 10 ft of Head (Maximum)
8 gpm
Seal Type
Mechanical
Compatible with Media Type
Non-Abrasive Liquids, Non-Flammable Liquids
Horsepower
1/8 hp
Minimum Media Temperature
40 Degrees F
Intake Type
NPT
Maximum Media Temperature
180 Degrees F
Maximum Flow Rate
13 gpm
Flow Rate @ 1 ft of Head (Maximum)
12.6 gpm
Maximum RPM
5,000 RPM
Shaft Material
430 Stainless Steel
Shut Off Pressure (Maximum)
10 psi
Specific Gravity (Maximum)
1
Wetted Material
Brass, Buna-N, Carbon, Ceramic, Stainless Steel, Viton
Volute Material
Brass

Description

Marine Centrifugal Pump, Pump Housing Material Brass, Horsepower 1/8 hp, Nameplate Voltage 36V DC, Maximum Feet of Head 17 ft, Compatible Intake Pipe Size 3/4 in, Intake Type NPT, Compatible Discharge Pipe Size 3/4 in, Discharge Type NPT, Motor Enclosure Totally Enclosed, Maximum Flow Rate 13 gpm, Flow Rate @ 5 ft of Head (Maximum) 11 gpm, Flow Rate @ 10 ft of Head (Maximum) 8 gpm, Flow Rate @ 15 ft of Head (Maximum) 4 gpm, Seal Material Carbon, Ceramic, Viton, Best Efficiency Head 15 ft

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
